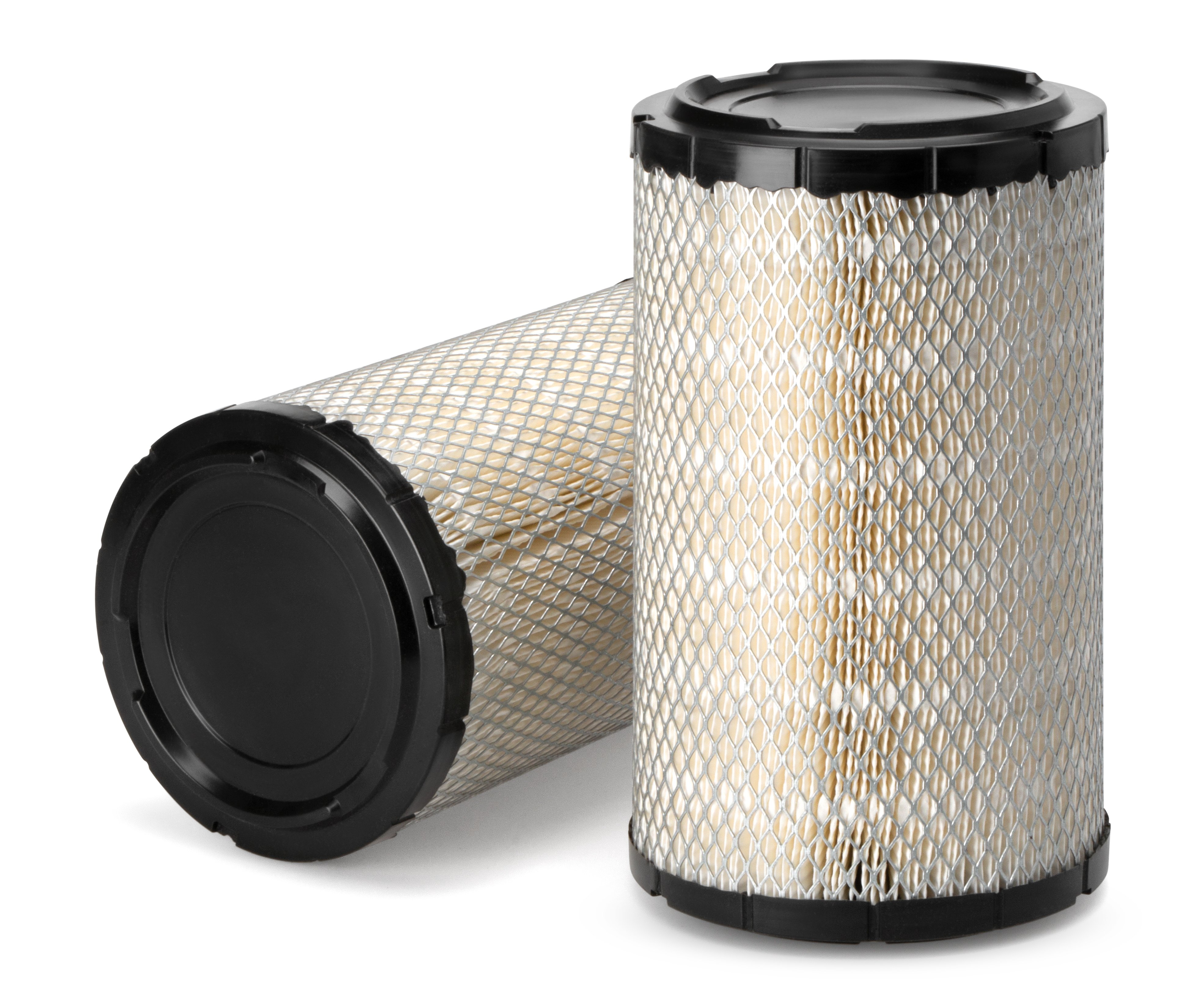

AF25258
Air Filter, Primary
Fleetguard® AF25258 Magnum RS™ radial seal primary air element is designed to meet the rugged demands of equipment operating in the harshest environments. The Magnum RS offers unique features that provide significant benefits for longer service life and optimum performance when the job demands it.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Largest OD | 6.48 inch / 164.70 mm |
| Length | 11.00 in / 279.40 mm |
| Full Life Efficiency | 99.5% |
| Largest ID | 3.58 inch / 91.00 mm |
| Height | 11.00 inch / 279.40 mm |
| Rated Flow | 250.00 CFM |
| Media Type | Cellulose |
| Applicable Region | North America, Europe, South America, South East Asia, South Pacific |
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| V8 395 6.5L TURBO DIESEL (VIN F) | 2002 | 1 | |
| V8 496 8.1L F.I. (VIN G) | 2002 | 1 | |
| V8 350 5.7L F.I. (VIN R) | 2000 | 1 | |
| V8-6.5L-395-F | 2000 | 1 | |
| V8-6.5L-395-F | 2000 | 1 | |
| V8 350 5.7L F.I. (VIN R) | 2000 | 1 | |
| V8 454 7.4L F.I. (VIN J) | 2000 | 1 | |
| V8 350 5.7L F.I. (VIN R) | 2000 | 1 | |
| V8 454 7.4L F.I. (VIN J) | 2000 | 1 | |
| V8-5.7L-350-R | 1999 | 1 | |
| V8-7.4L-454-J | 1999 | 1 | |
| V8-6.5L-395-F | 1999 | 1 | |
| V8-5.7L-350-R | 1999 | 1 | |
| V8-7.4L-454-J | 1999 | 1 | |
| V8-6.5L-395-F | 1999 | 1 | |
| V8-5.7L-350-R | 1999 | 1 | |
| V8-5.7L-350-R | 1999 | 1 | |
| V8-7.4L-454-J | 1999 | 1 | |
| V8-6.5L-395-F | 1999 | 1 | |
| V8-5.0L-305-M | 1999 | 1 | |
| V8-7.4L-454-J | 1999 | 1 | |
| V8-7.4L-454-J | 1999 | 1 | |
| V8-6.5L-395-F | 1999 | 1 | |
| V8-6.5L-395-F | 1999 | 1 | |
| V8-5.7L-350-R | 1999 | 1 | |
| V8-6.5L-395-F | 1999 | 1 | |
| V8-5.7L-350-R | 1999 | 1 | |
| V8-5.0L-305-M | 1999 | 1 | |
| V8-6.5L-395-S | 1999 | 1 | |
| V8-5.7L-350-R | 1999 | 1 | |
| V8-6.5L-395-S | 1999 | 1 | |
| V8-5.7L-350-R | 1999 | 1 | |
| V8-5.7L-350-R | 1999 | 1 | |
| V8-7.4L-454-J | 1999 | 1 | |
| V8-5.0L-305-M | 1999 | 1 | |
| V8-7.4L-454-J | 1999 | 1 | |
| V8-6.5L-395-F | 1999 | 1 | |
| V8-5.7L-350-R | 1999 | 1 | |
| V8-5.7L-350-R | 1999 | 1 | |
| V8-5.0L-305-M | 1999 | 1 | |
| V8-6.5L-395-F | 1999 | 1 | |
| V8-5.7L-350-R | 1999 | 1 | |
| V8-5.0L-305-M | 1999 | 1 | |
| V8-6.5L-395-F | 1999 | 1 | |
| V8-5.7L-350-R | 1999 | 1 | |
| V8-5.0L-305-M | 1999 | 1 | |
| V8-7.4L-454-J | 1999 | 1 | |
| V8-6.5L-395-F | 1999 | 1 | |
| V8-6.5L-395-F | 1999 | 1 | |
| V8-5.7L-350-R | 1999 | 1 | |
| V8-6.5L-395-F | 1999 | 1 | |
| V8-5.7L-350-R | 1999 | 1 | |
| V8-5.7L-350-R | 1999 | 1 | |
| V8-6.5L-395-F | 1999 | 1 | |
| V8-7.4L-454-J | 1999 | 1 | |
| V8-5.7L-350-R | 1999 | 1 | |
| V8-7.4L-454-J | 1999 | 1 | |
| V8-6.5L-395-F | 1999 | 1 | |
| V8-5.7L-350-R | 1999 | 1 | |
| V8-6.5L-395-F | 1999 | 1 | |
| V8-5.7L-350-R | 1999 | 1 | |
| V8-5.0L-305-M | 1999 | 1 | |
| V8-6.5L-395-F | 1999 | 1 | |
| V8-5.7L-350-R | 1998 | 1 | |
| V8-5.0L-305-M | 1998 | 1 | |
| V8-5.7L-350-R | 1998 | 1 | |
| V8-6.5L-395-F | 1998 | 1 | |
| V8-6.5L-395-S | 1998 | 1 | |
| V8-7.4L-454-J | 1998 | 1 | |
| V6-4.3L-262-W | 1998 | 1 | |
| V8-5.0L-305-M | 1998 | 1 | |
| V8-5.7L-350-R | 1998 | 1 | |
| V8-6.5L-395-F | 1998 | 1 | |
| V8-6.5L-395-S | 1998 | 1 | |
| V8-6.5L-395-S | 1998 | 1 | |
| V8-7.4L-454-J | 1998 | 1 | |
| V8-5.7L-350-R | 1998 | 1 | |
| V8-6.5L-395-F | 1998 | 1 | |
| V8-7.4L-454-J | 1998 | 1 | |
| V8-5.7L-350-R | 1998 | 1 | |
| V8-6.5L-395-S | 1998 | 1 | |
| V8-5.7L-350-R | 1998 | 1 | |
| V8-6.5L-395-F | 1998 | 1 | |
| V8-6.5L-395-S | 1998 | 1 | |
| V8-7.4L-454-J | 1998 | 1 | |
| V8-7.4L-454-J | 1998 | 1 | |
| V8-6.5L-395-F | 1998 | 1 | |
| V8-5.0L-305-M | 1998 | 1 | |
| V8-5.7L-350-R | 1998 | 1 | |
| V8-6.5L-395-F | 1998 | 1 | |
| V8-6.5L-395-S | 1998 | 1 | |
| V8-6.5L-395-S | 1998 | 1 | |
| V6-4.3L-262-W | 1998 | 1 | |
| V8-5.0L-305-M | 1998 | 1 | |
| V8-5.7L-350-R | 1998 | 1 | |
| V8-6.5L-395-F | 1998 | 1 | |
| V8-5.7L-350-R | 1997 | 1 | |
| V8-6.5L-395-F | 1997 | 1 | |
| V8-5.7L-350-R | 1997 | 1 | |
| V8-5.0L-305-M | 1997 | 1 | |
| V8-6.5L-395-F | 1997 | 1 | |
| V8-5.0L-305-M | 1997 | 1 | |
| V8-6.5L-395-S | 1997 | 1 | |
| V8-6.5L-395-S | 1997 | 1 | |
| V8-5.7L-350-R | 1997 | 1 | |
| V6-4.3L-262-W | 1997 | 1 | |
| V8-7.4L-454-J | 1997 | 1 | |
| V8-6.5L-395-F | 1997 | 1 | |
| V8-7.4L-454-J | 1997 | 1 | |
| V8-6.5L-395-S | 1997 | 1 | |
| V8-6.5L-395-F | 1997 | 1 | |
| V8-5.7L-350-R | 1997 | 1 | |
| V8-6.5L-395-S | 1997 | 1 | |
| V8-5.7L-350-R | 1997 | 1 | |
| V8-7.4L-454-J | 1997 | 1 | |
| V8-6.5L-395-F | 1997 | 1 | |
| V8-5.7L-350-R | 1997 | 1 | |
| V8-6.5L-395-S | 1997 | 1 | |
| V8-6.5L-395-F | 1997 | 1 | |
| V8-5.7L-350-R | 1997 | 1 | |
| V8-5.0L-305-M | 1997 | 1 | |
| V6-4.3L-262-W | 1997 | 1 | |
| V8-7.4L-454-J | 1997 | 1 | |
| V8-6.5L-395-S | 1997 | 1 | |
| V8-6.5L-395-F | 1997 | 1 | |
| V8-5.7L-350-R | 1997 | 1 | |
| V8-5.0L-305-M | 1997 | 1 | |
| V8-7.4L-454-J | 1997 | 1 | |
| V8-6.5L-395-S | 1997 | 1 | |
| V6-4.3L-262-W | 1996 | 1 | |
| V8-5.7L-350-R | 1996 | 1 | |
| V8-5.7L-350-R | 1996 | 1 | |
| V8-7.4L-454-J | 1996 | 1 | |
| V8-7.4L-454-J | 1996 | 1 | |
| V8-5.7L-350-R | 1996 | 1 | |
| V8-5.7L-350-R | 1996 | 1 | |
| V8-5.0L-305-M | 1996 | 1 | |
| V8-7.4L-454-J | 1996 | 1 | |
| V8-5.7L-350-R | 1996 | 1 | |
| V8-7.4L-454-J | 1996 | 1 | |
| V8-5.7L-350-R | 1996 | 1 | |
| V8-5.7L-350-R | 1996 | 1 | |
| V8-5.0L-305-M | 1996 | 1 | |
| V8-7.4L-454-J | 1996 | 1 | |
| V8-5.7L-350-R | 1996 | 1 | |
| V8-5.0L-305-M | 1996 | 1 | |
| V6-4.3L-262-W | 1996 | 1 | |
| V8-7.4L-454-J | 1996 | 1 | |
| V8-5.7L-350-R | 1996 | 1 | |
| V8-5.0L-305-M | 1996 | 1 | |
| V6-4.3L-262-W | 1996 | 1 | |
| V8-7.4L-454-J | 1996 | 1 | |
| V6-4.3L-262-W | 1996 | 1 | |
| V8 | 1 | ||
| ISL G (8.9) | 2014 | 1 | |
| V8 350 5.7L F.I. (VIN R) | 2001 | 1 | |
| V8 350 5.7L F.I. (VIN R) | 2000 | 1 | |
| V8-5.7L-350-R | 1999 | 1 | |
| V8 | 1 |
