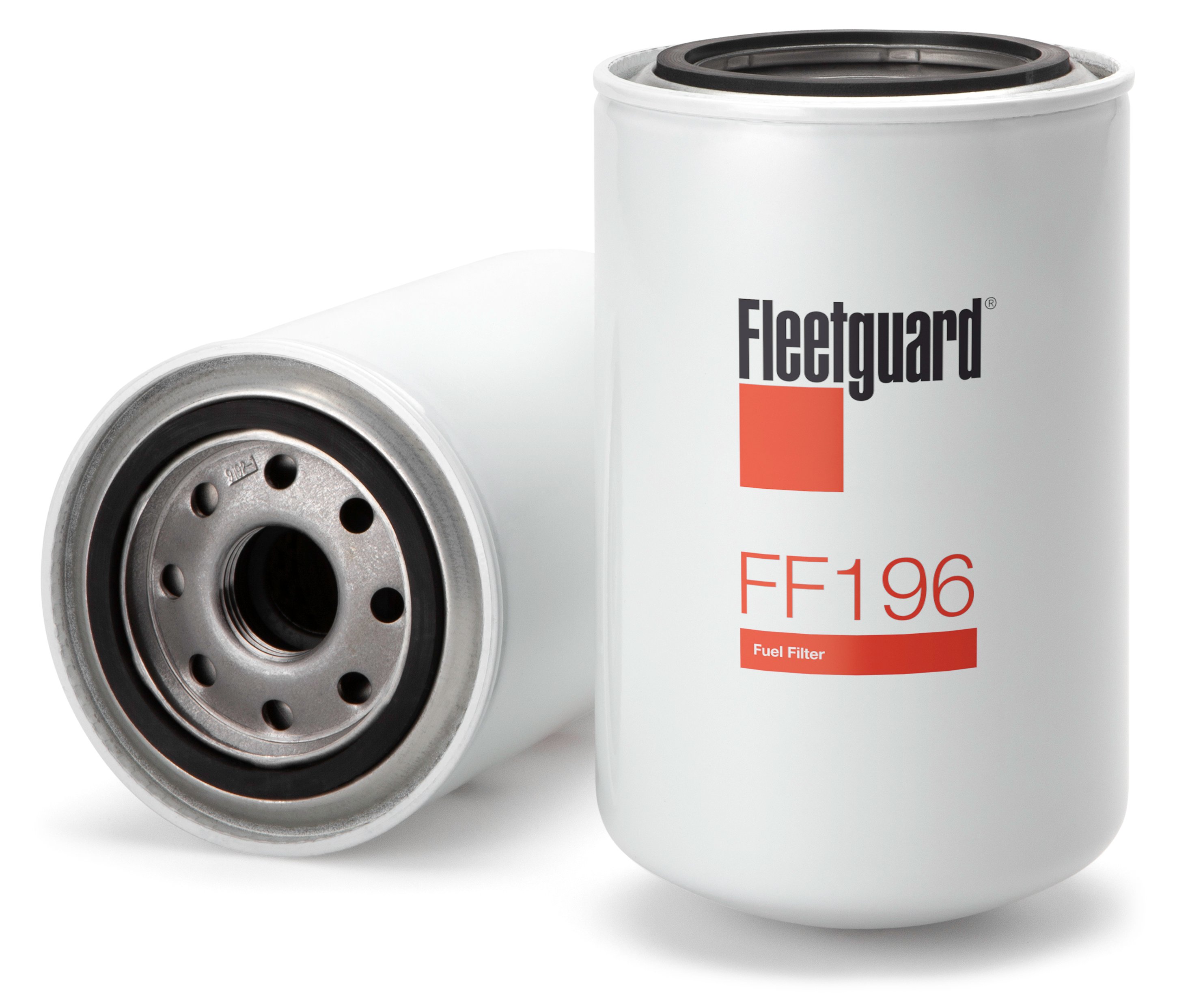

FF196
Fuel Filter, Spin-On
Fleetguard® FF196 spin-on fuel filter delivers superior performance using proven media technology, removing harmful contaminants. Fleetguard fuel filters ensure optimal fuel system protection to meet or exceed OEM specifications.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Thread Size | 1-14 UNS-2B |
| Gasket Outside Diameter | 2.83 inch / 71.99 mm |
| Height | 5.90 inch / 149.86 mm |
| Efficiency Test Std | SAE J905 |
| Primary Particle Efficiency | 17.30 micron (c) @ 99% |
| Media Type | Cellulose |
| Gasket Inside Diameter | 2.46 inch / 62.53 mm |
| Largest Outside Diameter | 3.69 inch / 93.80 mm |
| Standpipe | NO |
| Hydrostatic Burst Minimum | 145.00 psi / 1000.00 kPa |
| Rated Flow | 1.50 gpm / 5.66 L/min |
| Applicable Region | North America, China, Europe, South America, South East Asia, South Pacific, Mexico and Central America |
Product Comments
NOTE: May also replace 702143-C1 if clearance is less than 8 inches. If greater than 8 inches use FF5020
Related Parts
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| ISM11 | 2008 | 1 | |
| V555 | 1972 | 1 | |
| D407 | 1 | ||
| DT466C | 1 | ||
| DT466 | 1 | ||
| V8 | 1 | ||
| V8 | 1 | ||
| DT466 | 1 | ||
| DT282 | 1 | ||
| DTA466 | 1 | ||
| DT466C | 1 | ||
| DTA466 | 1 | ||
| DT466C | 1 | ||
| DTI466C | 1 | ||
| DT466 | 1 | ||
| UD-312 | 1 | ||
| UD-414 | 1 | ||
| DT466 | 1 | ||
| DTA466 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DT466C | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| UDT436 | 1 | ||
| V8 | 1 | ||
| UD-282 | 1 | ||
| UDT-429 | 1 | ||
| V8 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| IN-633 DIESEL | 1 | ||
| UDT-407 | 1 | ||
| DTI466C | 1 | ||
| UDT-573 | 1 | ||
| D414 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| V8 | 1 | ||
| DTA466 | 1 | ||
| DT414 | 1 | ||
| DT466 | 1 | ||
| UDT-414 | 1 | ||
| DT466 | 1 | ||
| DTA466 | 1 | ||
| DT466 | 1 | ||
| UD-466 | 1 | ||
| DT466 | 1 | ||
| D282 | 1 | ||
| DTA466C | 1 | ||
| DTA466 | 1 | ||
| D436 | 1 | ||
| DTI466 | 1 | ||
| DT466 | 1 | ||
| 9.0L | 1 | ||
| DTA466 | 1 | ||
| DVT466 | 1 | ||
| DT-429 | 1 | ||
| UD-236 | 1 | ||
| DTA466 | 1 | ||
| DTA466C | 1 | ||
| UDT-573B | 1 | ||
| DTA466C | 1 | ||
| UD-360 | 1 | ||
| DT466 | 1 | ||
| D312 | 1 | ||
| DTA466C | 1 | ||
| DT466 | 1 | ||
| DT466C | 1 | ||
| UDT-360 | 1 | ||
| UD-573 | 1 | ||
| DT407 | 1 | ||
| DTA466 | 1 | ||
| DT466C | 1 | ||
| UD-407 | 1 | ||
| D236 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DTA466 | 1 | ||
| DT466B | 1 | ||
| DT466 | 1 | ||
| DT466C | 1 | ||
| DT436 | 1 | ||
| DTA466 | 1 | ||
| DTA466 | 1 | ||
| D360 | 1 | ||
| V8 | 1 | ||
| DVTI-573 | 1 | ||
| DT466C | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DTI466C | 1 | ||
| 9.0L | 1 | ||
| DT466C | 1 | ||
| DT361 | 1 | ||
| DT466C | 1 | ||
| DT466 | 1 | ||
| DVT-573 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DTA466C | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| UDT-466 | 1 | ||
| DT466 | 1 | ||
| DTI466C | 1 | ||
| 3116 | 1 | ||
| DT466 | 1 | ||
| DT573 | 1 | ||
| DT407 | 1 | ||
| DT407 | 1 | ||
| DT361 | 1 | ||
| 1 | |||
| DT407 | 1 | ||
| DT361 | 1 | ||
| 1 | |||
| DT361 | 1 | ||
| UD-407 | 1 | ||
| DT466B | 1 | ||
| DT573B | 1 | ||
| DT466 | 1 | ||
| 1 | |||
| 1 | |||
| DT466 | 1 | ||
| DT466B | 1 | ||
| DT-429 | 1 | ||
| DT414 | 1 | ||
| DT407 | 1 | ||
| DVT-573 | 1 | ||
| DT407 | 1 | ||
| DVT-573 | 1 | ||
| DT407 | 1 | ||
| 16V-71 | 1 | ||
| DT-429 | 1 | ||
| DT466 | 1 | ||
| DT407 | 1 | ||
| 1 | |||
| DT466 | 2010 | 1 | |
| DT466 | 2009 | 1 | |
| DT466 | 2008 | 1 | |
| DT466 | 2007 | 1 | |
| DT466 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| F20C | 1995 | 1 | |
| K13D | 1 | ||
| H06C-TI | 1 | ||
| H06C-TI | 1 | ||
| J08C-TP | 1 | ||
| EM100 | 1 | ||
| FE6TB | 2008 | 1 | |
| FE6 | 2002 | 1 | |
| FE6 | 2002 | 1 | |
| ME92 | 2002 | 1 | |
| FU6 | 2002 | 1 | |
| FU6 | 2002 | 1 | |
| MD92 | 2002 | 1 | |
| MD92 | 2002 | 1 | |
| FE6 | 2002 | 1 | |
| ME92 | 2002 | 1 | |
| MD92 | 2002 | 1 | |
| FE6 | 2002 | 1 | |
| FD46T | 2002 | 1 | |
| MD92 | 2002 | 1 | |
| FE6T | 2002 | 1 | |
| FE6 | 2002 | 1 | |
| FE6FT | 1999 | 1 | |
| FE6F | 1999 | 1 | |
| MD92 | 1999 | 1 | |
| MD92 | 1999 | 1 | |
| FE6 | 1999 | 1 | |
| FE6A | 1999 | 1 | |
| FE6FTA | 1999 | 1 | |
| MD92 | 1999 | 1 | |
| FE6F | 1999 | 1 | |
| FE6 | 1999 | 1 | |
| FE6FT | 1999 | 1 | |
| FE6T | 1999 | 1 | |
| FE6FT | 1999 | 1 | |
| MD92 | 1999 | 1 | |
| MD92 | 1999 | 1 | |
| FE6 | 1999 | 1 | |
| FE6FTB | 1999 | 1 | |
| FE6FT | 1999 | 1 | |
| FE6F | 1999 | 1 | |
| MD92 | 1999 | 1 | |
| FD46T | 1999 | 1 | |
| MD92 | 1999 | 1 | |
| FU6TA | 1997 | 1 | |
| FE6T | 1997 | 1 | |
| FE6TA | 1 | ||
| FD46T | 1 | ||
| FE6TB/C | 1 | ||
| FE6TB | 1 | ||
| FE6TA | 1 | ||
| NE6T | 1 | ||
| NE6 | 1 | ||
| NE6 | 1 | ||
| FE6TA | 1 | ||
| FE6TC | 1 | ||
| NE6 | 1 | ||
| NE6T | 1 | ||
| NE6T | 1 | ||
| D282 | 1 | ||
| D236 | 1 | ||
| D282 | 1 | ||
| D360 | 1 | ||
| D360 | 1 | ||
| P11C-VN | 2017 | 1 | |
| P11C | 2014 | 1 | |
| DT466 | 2012 | 1 | |
| DT466 | 2011 | 1 | |
| 3116 | 2011 | 1 | |
| S6R-TA | 2011 | 1 | |
| S6R-TK | 2011 | 1 | |
| DT466 | 2002 | 1 | |
| DT466 | 2002 | 1 | |
| D34AMS/MT | 2000 | 1 | |
| D49AMS/MT | 2000 | 1 | |
| D65AMS/MT | 2000 | 1 | |
| D30AMS/MT | 2000 | 1 | |
| D25AMS/MT | 2000 | 1 | |
| DT466 | 1990 | 1 | |
| DT466 | 1990 | 1 | |
| DT466 | 1980 | 1 | |
| DT573 | 1 | ||
| 3116 | 1 | ||
| 1 | |||
| S6R-Y1TAA1 | 2 | ||
| DT407 | 1 | ||
| DT-429 | 1 | ||
| DT573B | 1 | ||
| 1306 TAG | 1 | ||
| DV550 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| S6R-Y1TAA1 | 1 | ||
| 1 | |||
| S12A2-YTAA1 | 4 | ||
| S12A2-YTAA1 | 4 | ||
| 1 | |||
| 1 | |||
| 1 | |||
| DT414 | 1 | ||
| DT466 | 1 | ||
| 1 | |||
| DT-429 | 1 | ||
| 1 | |||
| S12A-Y1T | 1 | ||
| 1 | |||
| DT407 | 1 | ||
| DT407 | 1 | ||
| D49A MT | 1 | ||
| S12A-Y1T | 1 | ||
| DT407 | 1 | ||
| DT466 | 1 | ||
| DT361 | 1 | ||
| 3116 | 1 | ||
| UD-407 | 1 |
