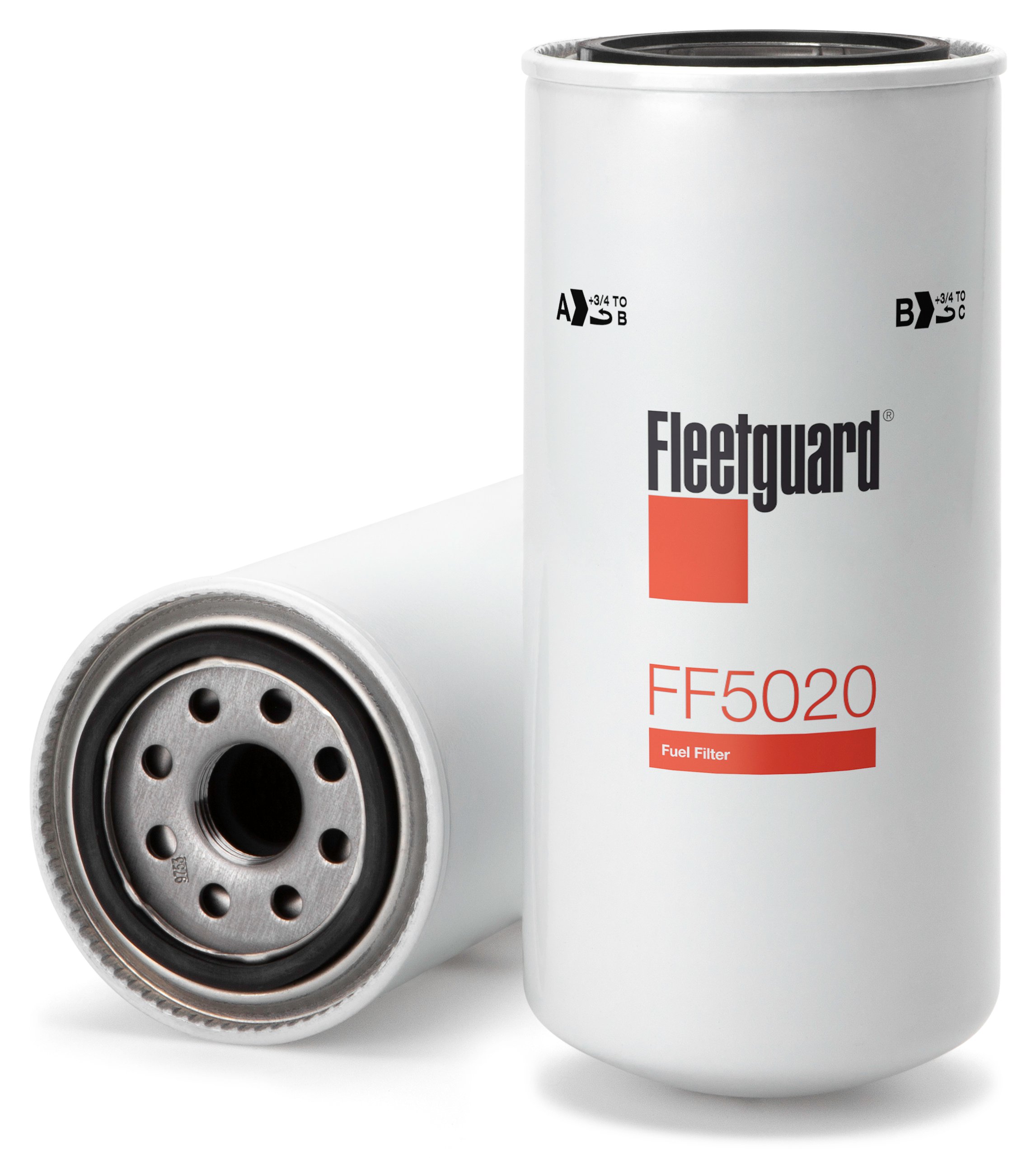

FF5020
Fuel Filter, Spin-On
Fleetguard® FF5020 spin-on fuel filter delivers superior performance using proven media technology, removing harmful contaminants. Fleetguard fuel filters ensure optimal fuel system protection to meet or exceed OEM specifications.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Thread Size | 1-14 UNS-2B |
| Gasket Inside Diameter | 2.46 inch / 62.53 mm |
| Largest OD | 3.72 inch / 94.44 mm |
| Efficiency Test Std | SAE J905 |
| Primary Particle Efficiency | 17.30 micron (c) @ 99% |
| Media Type | Cellulose |
| Gasket OD | 2.83 inch / 71.98 mm |
| Length | 8.06 inch / 204.72 mm |
| Standpipe | No |
| Hydrostatic Burst Minimum | 200.10 psi / 1380.00 kPa |
| Rated Flow | 1.51 gpm / 5.70 L/min |
| Applicable Region | North America, Europe, South America, South East Asia, South Pacific, Mexico and Central America, APAC |
Related Parts
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| ISM11 | 2008 | 1 | |
| DT466 | 2000 | 1 | |
| DT466 | 1999 | 1 | |
| DT530 | 1998 | 1 | |
| DTI466 | 1984 | 1 | |
| DTA466 | 1984 | 1 | |
| DT466 | 1984 | 1 | |
| DT466 | 1984 | 1 | |
| DT466 | 1984 | 1 | |
| DTA466 | 1984 | 1 | |
| DT466 | 1 | ||
| DT466 | 1 | ||
| DTI466 | 1 | ||
| DTA466C | 1 | ||
| DT466 | 1 | ||
| DTA466C | 1 | ||
| DV550 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DT466C | 1 | ||
| DT466 | 1 | ||
| UD-236 | 1 | ||
| D190 | 1 | ||
| DT466 | 1 | ||
| D170 | 1 | ||
| DTA466 | 1 | ||
| DTA466 | 1 | ||
| D360 | 1 | ||
| DV550 | 1 | ||
| UDT-817 | 1 | ||
| DTI817C | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| D407 | 1 | ||
| DT466B | 1 | ||
| DVT466 | 1 | ||
| IRV446 | 1 | ||
| UDT-429 | 1 | ||
| UDT-414 | 1 | ||
| DT466 | 1 | ||
| UD-312 | 1 | ||
| DTA466 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DTA466C | 1 | ||
| UDT-573 | 1 | ||
| DVT573B | 1 | ||
| D170 | 1 | ||
| UDT-817B | 1 | ||
| DT282 | 1 | ||
| D817 | 1 | ||
| DT466 | 1 | ||
| DTA466C | 1 | ||
| UD-573 | 1 | ||
| DT466 | 1 | ||
| DTI466C | 1 | ||
| DV550BTC | 1 | ||
| DV462 | 1 | ||
| DT466C | 1 | ||
| DTA466 | 1 | ||
| DV462B | 1 | ||
| DT466 | 1 | ||
| D190 | 1 | ||
| DT466C | 1 | ||
| MDT-817 | 1 | ||
| DT-429 | 1 | ||
| DT817B | 1 | ||
| DT466C | 1 | ||
| DT817 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DTI466 | 1 | ||
| DV550B | 1 | ||
| DTI466C | 1 | ||
| DT460 | 1 | ||
| D236 | 1 | ||
| DT466C | 1 | ||
| DTI466C | 1 | ||
| UDT-466 | 1 | ||
| DTA466C | 1 | ||
| UD-466 | 1 | ||
| UD-407 | 1 | ||
| D150 | 1 | ||
| DTA466 | 1 | ||
| DT436 | 1 | ||
| DT466C | 1 | ||
| UD-817B | 1 | ||
| DT466 | 1 | ||
| DTA466 | 1 | ||
| D282 | 1 | ||
| V800 | 1 | ||
| DTA466 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DT361 | 1 | ||
| DTA466C | 1 | ||
| DT466 | 1 | ||
| UD-361 | 1 | ||
| DTA466 | 1 | ||
| DT414 | 1 | ||
| DTI466 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DTA466 | 1 | ||
| DTA466 | 1 | ||
| DTA466 | 1 | ||
| DT466 | 1 | ||
| UD-282 | 1 | ||
| DV550 | 1 | ||
| DT817C | 1 | ||
| DT466C | 1 | ||
| DT466C | 1 | ||
| DT466 | 1 | ||
| DV550B | 1 | ||
| D361 | 1 | ||
| UDT-360 | 1 | ||
| DTA466 | 1 | ||
| DTA466 | 1 | ||
| DT466 | 1 | ||
| DTA466 | 1 | ||
| DT466C | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| UDT-407 | 1 | ||
| DTA466C | 1 | ||
| UDT-361 | 1 | ||
| DTI466C | 1 | ||
| D312 | 1 | ||
| DT466 | 1 | ||
| DTI466C | 1 | ||
| DTI466C | 1 | ||
| DTA466C | 1 | ||
| DT466 | 1 | ||
| DTA466 | 1 | ||
| D414 | 1 | ||
| DT466 | 1 | ||
| D170 | 1 | ||
| DTA466 | 1 | ||
| DV550 | 1 | ||
| UD-414 | 1 | ||
| UD-360 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DV550B | 1 | ||
| UDT-573B | 1 | ||
| DT466 | 1 | ||
| V800 | 1 | ||
| V800 | 1 | ||
| V800 | 1 | ||
| UDTI817B | 1 | ||
| D150 | 1 | ||
| DV550B | 1 | ||
| DT407 | 1 | ||
| DTI466 | 1 | ||
| DVT800 | 1 | ||
| DT466 | 1 | ||
| D190 | 1 | ||
| V800 | 1 | ||
| DT466 | 1 | ||
| UD-817 | 1 | ||
| D170 | 1 | ||
| DVT-573 | 1 | ||
| DT466 | 1 | ||
| 9.0L | 1 | ||
| DVTI-573 | 1 | ||
| V800 | 1 | ||
| DT466 | 1 | ||
| DT466C | 1 | ||
| DTA466 | 1 | ||
| D190 | 1 | ||
| DT466C | 1 | ||
| DV462 | 1 | ||
| D170 | 1 | ||
| DV550B | 1 | ||
| DT466 | 1 | ||
| D436 | 1 | ||
| DT466C | 1 | ||
| U-817 | 1 | ||
| D150 | 1 | ||
| D190 | 1 | ||
| DT466 | 1 | ||
| V800 | 1 | ||
| DT466 | 1 | ||
| DTA466 | 1 | ||
| C7 | 2009 | 1 | |
| C7 | 2009 | 1 | |
| C7 | 2008 | 1 | |
| C7 | 2008 | 1 | |
| C7 | 2007 | 1 | |
| C7 | 2007 | 1 | |
| C7 | 2006 | 1 | |
| C7 | 2006 | 1 | |
| C7 | 2005 | 1 | |
| C7 | 2005 | 1 | |
| C7 | 2004 | 1 | |
| C7 | 2004 | 1 | |
| C7 | 2003 | 1 | |
| C7 | 2003 | 1 | |
| DT817B | 1 | ||
| 1 | |||
| D466B | 1 | ||
| DVT573B | 1 | ||
| IHC | 1 | ||
| DT466 | 1 | ||
| DT407 | 1 | ||
| D407 | 1 | ||
| DT466B | 1 | ||
| DT466 | 1 | ||
| DT407 | 1 | ||
| DT466B | 1 | ||
| UD-407 | 1 | ||
| DT407 | 1 | ||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DT817B | 1 | ||
| DVT573B | 1 | ||
| 1 | |||
| DT817C | 1 | ||
| IHC | 1 | ||
| D360 | 1 | ||
| IHC | 1 | ||
| 1 | |||
| 1 | |||
| DT573B | 1 | ||
| DT407 | 1 | ||
| DT817B | 1 | ||
| DT361 | 1 | ||
| 16V-71 | 1 | ||
| DT573 | 1 | ||
| 3D94-2 | 1 | ||
| DT-429 | 1 | ||
| 1 | |||
| UD-407 | 1 | ||
| GAS | 1 | ||
| 1 | |||
| IHC | 1 | ||
| DVT573B | 1 | ||
| DT360 | 1 | ||
| Diesel | 1 | ||
| DT817B | 1 | ||
| DT360 | 1 | ||
| 1 | |||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DT361 | 1 | ||
| IHC | 1 | ||
| IHC | 1 | ||
| DT-429 | 1 | ||
| DT466 | 1 | ||
| DT414 | 1 | ||
| DT466C | 1 | ||
| DT407 | 1 | ||
| DT361 | 1 | ||
| DVT-573 | 1 | ||
| 1 | |||
| DVT-573 | 1 | ||
| DT817C | 1 | ||
| DT407 | 1 | ||
| DT414 | 1 | ||
| DT466 | 2010 | 1 | |
| DT466 | 2009 | 1 | |
| DT466 | 2008 | 1 | |
| DT466 | 2007 | 1 | |
| DT466 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DV550B | 1 | ||
| DT407 | 1 | ||
| CASEI | 1 | ||
| DT466B | 1 | ||
| DT436 | 1 | ||
| 1 | |||
| CASEI | 1 | ||
| D282 | 1 | ||
| DT407 | 1 | ||
| D414 | 1 | ||
| DT436 | 1 | ||
| DT-436B | 1 | ||
| DT407 | 1 | ||
| DT-429 | 1 | ||
| D312 | 1 | ||
| DT436 | 1 | ||
| DT-436 | 1 | ||
| D312 | 1 | ||
| DT414 | 1 | ||
| DT407 | 1 | ||
| DT407 | 1 | ||
| DT817 | 1 | ||
| D236 | 1 | ||
| D282 | 1 | ||
| D414 | 1 | ||
| D817 | 1 | ||
| DT466 | 1 | ||
| D436 | 1 | ||
| DT466 | 1 | ||
| D436 | 1 | ||
| DT436 | 1 | ||
| DT466B | 1 | ||
| DT407 | 1 | ||
| CASEI | 1 | ||
| D436 | 1 | ||
| DT436 | 1 | ||
| DVT800 | 1 | ||
| D407 | 1 | ||
| CASEI | 1 | ||
| DT436 | 1 | ||
| D407 | 1 | ||
| DVT800 | 1 | ||
| D407 | 1 | ||
| CASEI | 1 | ||
| D312 | 1 | ||
| DT466C | 1 | ||
| DT414 | 1 | ||
| DT407 TURBO | 1 | ||
| D312 | 1 | ||
| D360 | 1 | ||
| DT414 | 1 | ||
| DT466B | 1 | ||
| DT466 | 1 | ||
| DT407 | 1 | ||
| DT402 | 1 | ||
| DT-436B | 1 | ||
| D407 | 1 | ||
| DV550B | 1 | ||
| D414 | 1 | ||
| DT-429 | 1 | ||
| DT-436B | 1 | ||
| CASEI | 1 | ||
| DT466 | 1 | ||
| DVT800 | 1 | ||
| 1 | |||
| DT466 | 1 | ||
| DT436 | 1 | ||
| DT466B | 1 | ||
| DT407 | 1 | ||
| DT414 | 1 | ||
| D436 | 1 | ||
| DT466 | 2012 | 1 | |
| DT466 | 2011 | 1 | |
| DT466 | 2002 | 1 | |
| DT466 | 2002 | 1 | |
| DT466 | 1990 | 1 | |
| DT466 | 1990 | 1 | |
| DT466 | 1980 | 1 | |
| DTI817 | 1 | ||
| DT407 | 1 | ||
| DT817C | 1 | ||
| IHC | 1 | ||
| DVT573B | 1 | ||
| DT-429 | 1 | ||
| 3D94-2 | 1 | ||
| 1 | |||
| DVT800 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DT466C | 1 | ||
| DT817B | 1 | ||
| DT817B | 1 | ||
| DT466E | 1 | ||
| 1 | |||
| DT407 | 1 | ||
| DT407 | 1 | ||
| 1 | |||
| DT817B | 1 | ||
| DT817B | 1 | ||
| DT407 | 1 | ||
| 1 | |||
| 1 | |||
| DT466 | 1 | ||
| DT817B | 1 | ||
| IHC | 1 | ||
| DT573 | 1 | ||
| DVT800 | 1 | ||
| DT817B | 1 | ||
| DT466 | 1 | ||
| 1 | |||
| DT817B | 1 | ||
| 1 | |||
| IHC | 1 | ||
| DV550 | 1 | ||
| DT817C | 1 | ||
| 1 | |||
| DVT800 | 1 | ||
| DVT573B | 1 | ||
| UD-407 | 1 | ||
| 1 | |||
| DT817 | 1 | ||
| DT817C | 1 | ||
| DT817C | 1 | ||
| IHC | 1 | ||
| DVT573B | 1 | ||
| IHC | 1 | ||
| DT466 | 1 | ||
| DT817C | 1 | ||
| DT-429 | 1 | ||
| DT817C | 1 | ||
| DT817B | 1 | ||
| DT817B | 1 | ||
| DT573B | 1 | ||
| IHC | 1 | ||
| IHC | 1 | ||
| DT361 | 1 | ||
| DVT573B | 1 |
