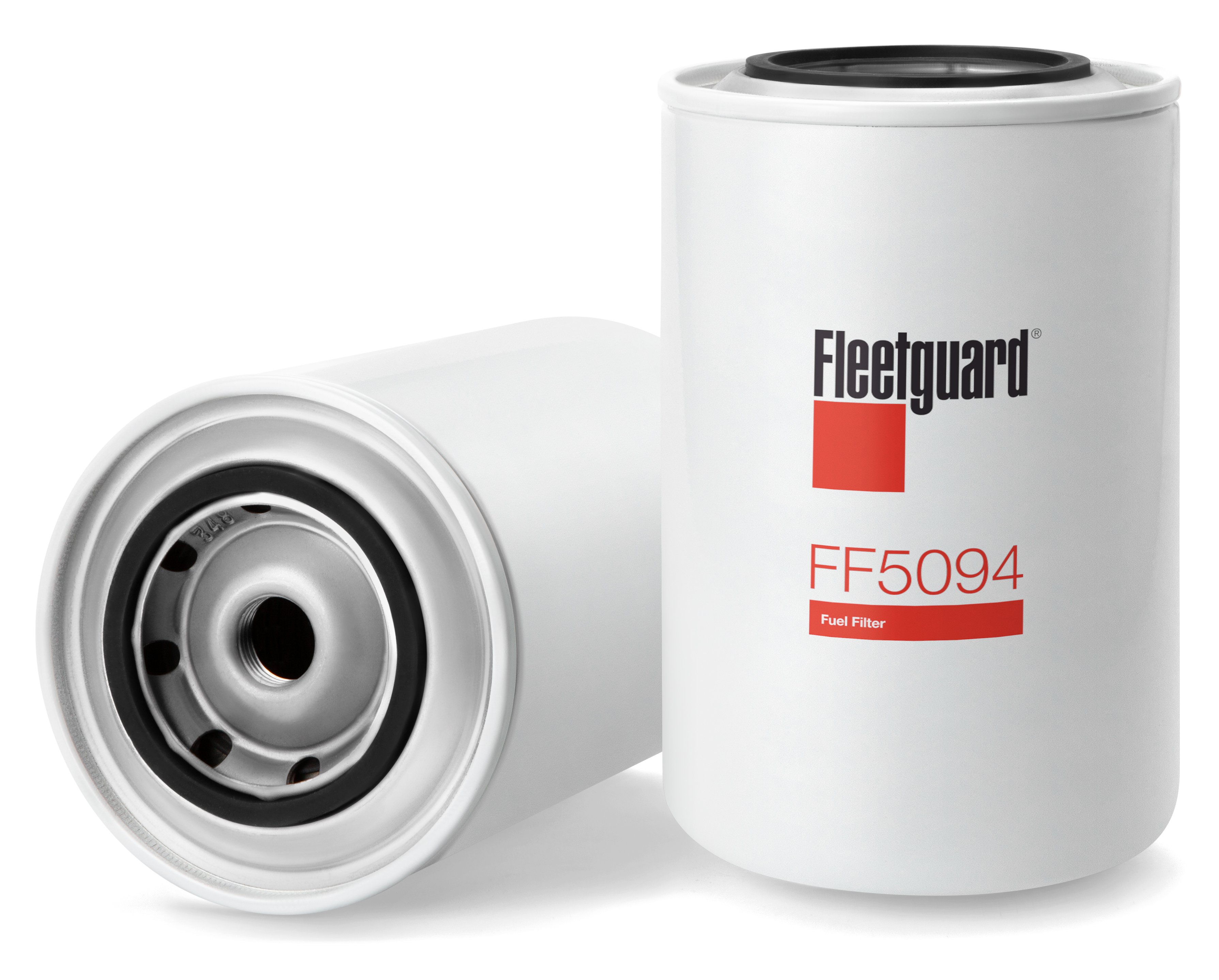

FF5094
Fuel Filter, Spin-On
Fleetguard® FF5094 spin-on fuel filter delivers superior performance using proven media technology, removing harmful contaminants. Fleetguard fuel filters ensure optimal fuel system protection to meet or exceed OEM specifications.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Thread Size | 3/4-16 UNF-2B |
| Gasket Inside Diameter | 2.46 inch / 62.59 mm |
| Length | 6.64 inch / 168.55 mm |
| Efficiency Test Std | SAE J905 |
| Primary Particle Efficiency | 17.30 micron (c) @ 97% |
| Media Type | Cellulose |
| Gasket OD | 2.82 inch / 71.63 mm |
| Largest OD | 4.26 inch / 108.20 mm |
| Standpipe | No |
| Hydrostatic Burst Minimum | 246.50 psi / 1700.00 kPa |
| Rated Flow | 2.01 gpm / 7.60 L/min |
| Applicable Region | North America, Europe, South East Asia, South Pacific, Mexico and Central America |
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| 8210.02 | 1 | ||
| 8210.02 | 1 | ||
| 8460.21 | 1 | ||
| CP3 | 1 | ||
| CP3 | 1 | ||
| CP3 | 1 | ||
| 8210 | 1 | ||
| IVECO | 1998 | 1 | |
| IVECO | 1998 | 1 | |
| 8365T | 1990 | 1 | |
| 8365T | 1989 | 1 | |
| 8065T | 1988 | 1 | |
| .8065.SI.25.ALL006 | 1988 | 1 | |
| FIAT | 1985 | 1 | |
| 1984 | 1 | ||
| 8365.25 | 1984 | 1 | |
| 1982 | 1 | ||
| 1982 | 1 | ||
| 8365 | 1981 | 1 | |
| 8365 | 1981 | 1 | |
| 1 | |||
| 8065 | 1 | ||
| IVECO | 1 | ||
| 1 | |||
| 1 | |||
| 1 | |||
| 8361 | 1 | ||
| 1 | |||
| 8361 | 1 | ||
| 1 | |||
| IVECO | 1 | ||
| 1 | |||
| 1 | |||
| IVECO | 1 | ||
| 1 | |||
| FIAT | 1 | ||
| FIAT | 1 | ||
| IVECO | 1 | ||
| IVECO | 1 | ||
| 1 | |||
| IVECO | 1 | ||
| 1 | |||
| 8365 | 1 | ||
| 1 | |||
| 8361 | 1 | ||
| 1 | |||
| 1 | |||
| IVECO | 1 | ||
| IVECO | 1 | ||
| 1 | |||
| 8361 | 1 | ||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 8065T | 1 | ||
| 8361 | 1 | ||
| 8365T | 1 | ||
| 8361 | 1 |
