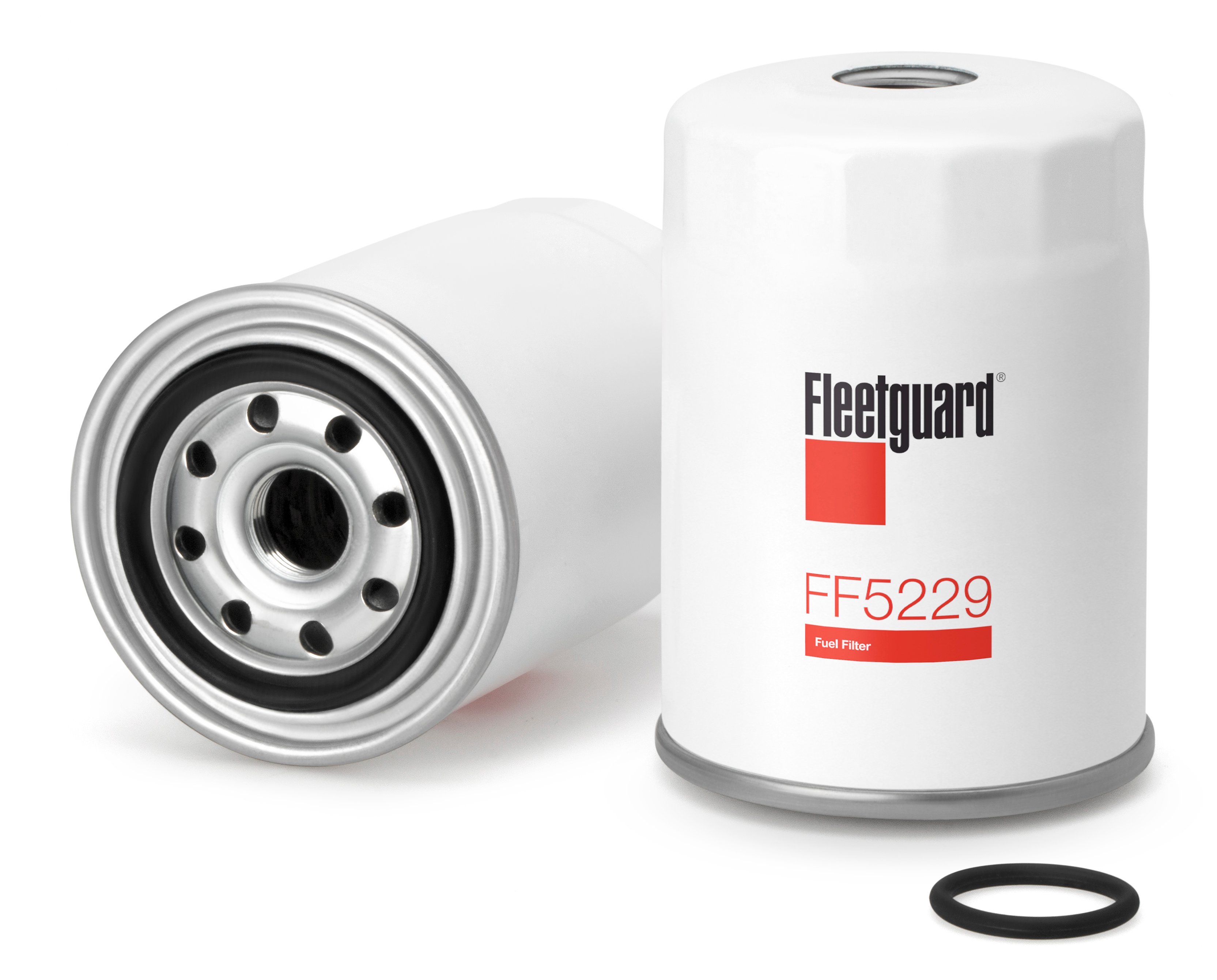

FF5229
Fuel Filter, Spin-On
Fleetguard® FF5229 spin-on fuel filter delivers superior performance using proven media technology, removing harmful contaminants. Fleetguard fuel filters ensure optimal fuel system protection to meet or exceed OEM specifications.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Gasket Inside Diameter | 2.13 inch / 54.00 mm |
| Largest OD | 3.31 inch / 84.00 mm |
| Hydrostatic Burst Minimum | 217.50 psi / 1500.00 kPa |
| Efficiency Test Std | ISO 19438 |
| Rated Flow | 0.53 gpm / 2.00 L/min |
| Gasket OD | 2.48 inch / 63.00 mm |
| Length | 4.74 inch / 120.50 mm |
| Thread Size | M20X1.5-6H |
| Primary Particle Efficiency | 16.00 micron (c) @ 98% |
| Media Type | Cellulose |
| Applicable Region | North America, Europe, South America, South East Asia, South Pacific |
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| D1.7L DTI ALPHA | 2001 | 1 | |
| 4FG1T | 1993 | 1 | |
| 4FG1T | 1993 | 1 | |
| 4FC1 | 1993 | 1 | |
| 4FG1T | 1993 | 1 | |
| 4EE1T | 1991 | 1 | |
| 4FC1T | 1991 | 1 | |
| 4FG1T | 1991 | 1 | |
| 4EE1T | 1991 | 1 | |
| 4FG1 | 1990 | 1 | |
| 4ZC1 | 1990 | 1 | |
| 4EE1 | 1990 | 1 | |
| 4EE1T | 1990 | 1 | |
| 4FG1 | 1990 | 1 | |
| 4ZC1 | 1990 | 1 | |
| 4FG1 | 1990 | 1 | |
| 4FD1 | 1990 | 1 | |
| 4EE1T | 1990 | 1 | |
| 4FG1 | 1988 | 1 | |
| 4FG1 | 1988 | 1 | |
| 4FG1 | 1988 | 1 | |
| 4FG1 | 1988 | 1 | |
| 4FG1 | 1988 | 1 | |
| 4FG1 | 1988 | 1 | |
| 4FG1 | 1988 | 1 | |
| 4FC1T | 1987 | 1 | |
| 4FG1 | 1987 | 1 | |
| 4FD1 | 1987 | 1 | |
| 4FG1 | 1987 | 1 | |
| 4FC1T | 1987 | 1 | |
| 4FG1 | 1987 | 1 | |
| 4EC1 | 1985 | 1 | |
| 4EC1 | 1985 | 1 | |
| 4EC1T | 1985 | 1 | |
| 4EC1T | 1985 | 1 | |
| 4FC1T | 1984 | 1 | |
| 4FC1 | 1984 | 1 | |
| 4FC1T | 1984 | 1 | |
| 4FC1T | 1983 | 1 | |
| 4FD1 | 1983 | 1 | |
| 4FD1 | 1983 | 1 | |
| 4FC1 | 1982 | 1 | |
| 4FC1T DIESEL | 1 | ||
| 2.2 L DIESEL | 1 | ||
| 4FD1 DIESEL | 1 | ||
| 4FC1 DIESEL | 1 | ||
| C240 | 1 | ||
| DM 950 DTH | 2011 | 1 | |
| DM 950 DT | 2010 | 1 | |
| 3KR2 | 1991 | 1 | |
| 3KR1 | 1990 | 1 | |
| 3KC1 | 1990 | 1 | |
| 3KR1 | 1990 | 1 | |
| 3KR1 | 1990 | 1 | |
| 4JH3-TE | 1 | ||
| 1 | |||
| 1 | |||
| 4JH3-DTE | 1 | ||
| 3KR2 | 1 | ||
| 4JH3-HTE | 1 | ||
| 1 | |||
| 4JH2-UTE | 1 | ||
| 1 | |||
| 1 |
