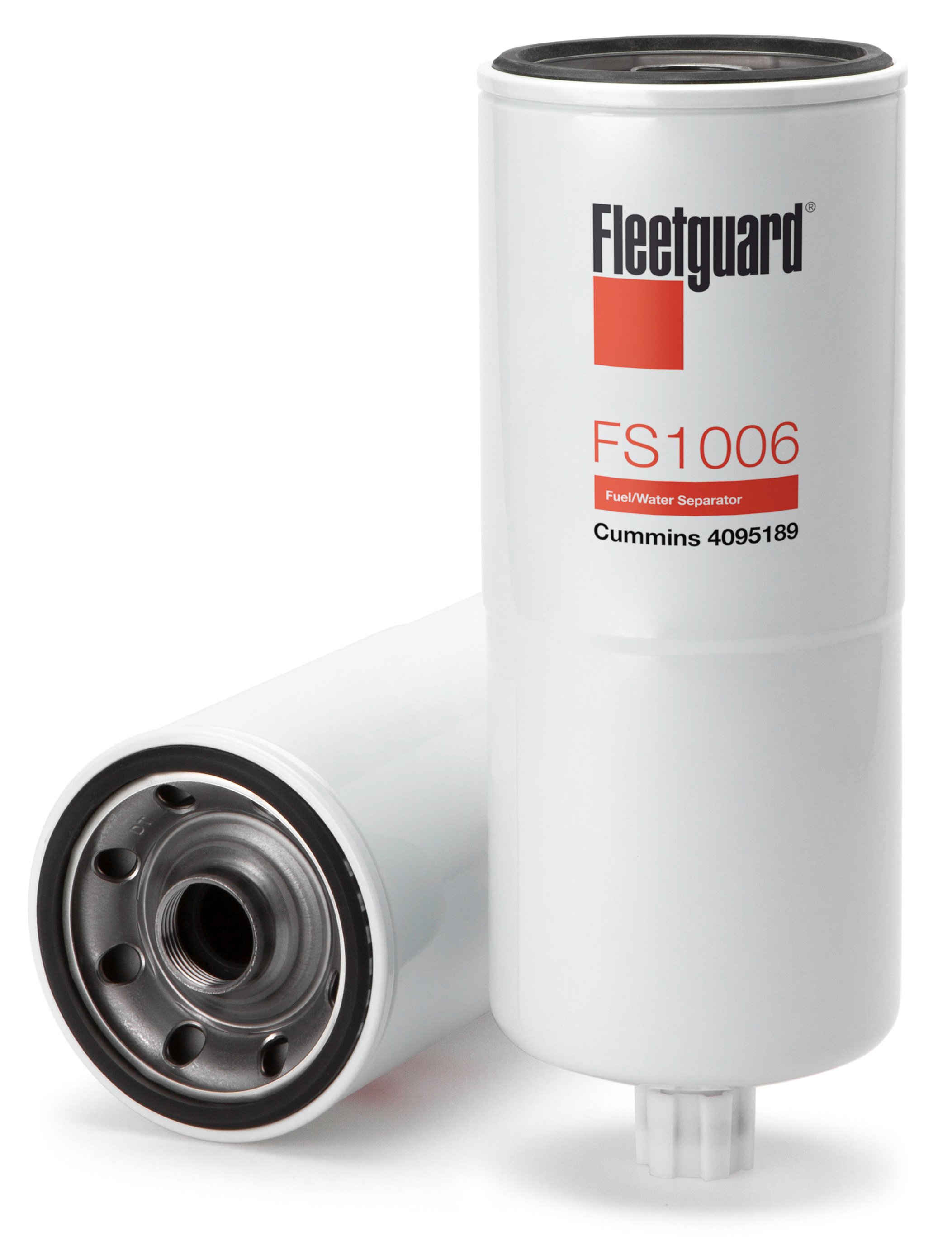

Specification
DOWNLOAD SPECS| Thread Size | 1.00 1/4-12 UNS-2B |
| Largest OD | 4.74 inch / 120.27 mm |
| Gasket OD | 4.35 inch / 110.50 mm |
| EMULSIFIED WATER SEPARATION | 95.00 % |
| Hydrostatic Burst Minimum | 145.00 psi / 999.98 kPa |
| Primary Particle Efficiency | 10.10 micron (c) @ 98.7% |
| Length | 12.32 inch / 313.00 mm |
| Gasket Inside Diameter | 3.84 inch / 97.50 mm |
| Standpipe | YES |
| Media Type | Stratapore |
| Test Specification | CECO ES14225 |
| Rated Flow | 2.99 gpm / 11.33 L/min |
| Applicable Region | North America, China, Europe, South America, South East Asia, South Pacific, Mexico and Central America, APAC |
Product Comments
Recommended for Cummins V28, KV38, and KV50 engines Stratapore Media
Related Parts
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| C11 | 2008 | 1 | |
| C11 | 2007 | 1 | |
| C11 | 2006 | 1 | |
| C11 | 2005 | 1 | |
| C11 | 2004 | 1 | |
| C11 | 1 | ||
| KTA50-G8 | 2 | ||
| KTA50-G3 | 2 | ||
| KTA50 | 2 | ||
| KTA50-G2 | 2 | ||
| KTA38-G1 | 1 | ||
| KTA38 | 2 | ||
| KTA38-G3 | 1 | ||
| KTA50-G7 | 2 | ||
| KTA38 | 1 | ||
| QSK23 | 1 | ||
| VTA28 | 1 | ||
| QSK60-GS3 | 1 | ||
| QSK78 | 6 | ||
| KTA38-G1 | 1 | ||
| KTA50 | 2 | ||
| KTA38-G7 | 1 | ||
| VTA28 | 1 | ||
| QSK60-G2 | 1 | ||
| QSK60-G2 | 1 | ||
| QSK78-G | 1 | ||
| QSK60-G2 | 1 | ||
| QSK45 | 1 | ||
| KTA50 | 2 | ||
| QSK78-G | 1 | ||
| KTA38-G2 | 1 | ||
| KTA-2300 | 1 | ||
| QSK60-G2 | 1 | ||
| KTA38-G4 | 1 | ||
| KTA50 | 2 | ||
| QSK60-G2 | 1 | ||
| KTA50 | 2 | ||
| QSK60-G2 | 1 | ||
| QSK60-G4 | 1 | ||
| KTA38-G6 | 1 | ||
| QSK60-G2 | 1 | ||
| QSK60-G2 | 1 | ||
| QSK60-G3 | 1 | ||
| KT-2300 | 1 | ||
| KTA50 | 2 | ||
| VTA28 | 1 | ||
| QSK60-G2 | 1 | ||
| KTA50-G4 | 2 | ||
| KTA50 | 2 | ||
| KTA38-G5 | 1 | ||
| KTA50-G1 | 2 | ||
| KTA50 | 2 | ||
| KTTA-50-G2 | 1 | ||
| KTA50-G9 | 2 | ||
| KTA50 | 2 | ||
| KTA38-G1 | 1 | ||
| QSK78-G | 1 | ||
| KTA50-G6 | 2 | ||
| QSK60-GS2 | 1 | ||
| SDA16V160 | 2013 | 3 | |
| QSK78 | 2011 | 1 | |
| 2008 | 1 | ||
| KTA38 | 2007 | 1 | |
| KTA38 | 2007 | 1 | |
| SAA6D125E-3 | 2001 | 1 | |
| SSA16V159 | 1 | ||
| SAA6D170E-3 | 1 | ||
| SAA6D140E | 1 | ||
| QSK60 | 1 | ||
| SSA16V159 | 1 | ||
| SAA6D170E-3 | 2 | ||
| SAA6D170E-3 | 1 | ||
| 1 | |||
| QST30 | 2 | ||
| 1 | |||
| QSK60 | 3 | ||
| 1 | |||
| SAA6D140E-3 | 1 | ||
| 1 | |||
| KTA38 | 1 | ||
| K2000E | 1 | ||
| 1 | |||
| QSK60 | 3 | ||
| QSK60 | 3 | ||
| 1 | |||
| SAA6D125E-3 | 1 | ||
| QSK45 | 1 | ||
| SSA12V159 | 4 | ||
| 1 | |||
| 1 | |||
| SAA6D125E-3 | 1 | ||
| QST30 SERIES | 1 | ||
| SAA6D125E-3 | 1 | ||
| SSA16V159 | 1 | ||
| KTA38 | 1 | ||
| KTA50 | 1 | ||
| SDA16V160 | 3 | ||
| 2 | |||
| 4 | |||
| K2000E | 1 | ||
| 1 | |||
| 16V 4000 | 1 | ||
| SAA6D140E | 1 | ||
| 2 | |||
| 1 | |||
| 6 | |||
| 16V-149 | 1 | ||
| SDA6D140E | 1 | ||
| SDA12V160 | 1 | ||
| SAA6D170E-3 | 1 | ||
| KTA38 | 1 | ||
| SAAD140E | 1 | ||
| 1 | |||
| SAA6D125E-3 | 1 | ||
| SA12V140 | 2 | ||
| KTA50 | 1 | ||
| SAA6D170E-3 | 1 | ||
| SAA6D140E | 1 | ||
| SAA6D125E-3 | 1 | ||
| KTA38 | 1 | ||
| 1 | |||
| 16V-149 | 1 | ||
| 1 | |||
| 6 | |||
| SAA6D140E | 1 | ||
| SDA6D140E | 1 | ||
| 2 | |||
| QSK60 | 1 | ||
| K1500 | 1 | ||
| KTA-38C | 2 | ||
| QSK45 | 1 | ||
| 1 | |||
| QSK78 | 2018 | 1 | |
| QSK23 | 2017 | 1 | |
| QSK78 | 2017 | 1 | |
| QSK78 | 2016 | 1 | |
| KTA50 | 2016 | 1 | |
| QSK78 | 2015 | 1 | |
| K1500E | 2015 | 1 | |
| K1500E | 2014 | 1 | |
| QSK23 | 2014 | 1 | |
| QSK78 | 2014 | 1 | |
| K1500E | 2013 | 1 | |
| K2000E | 2013 | 1 | |
| QSK78 | 2013 | 1 | |
| K1500E | 2012 | 1 | |
| QSK78 | 2012 | 1 | |
| KTA50 | 2012 | 1 | |
| K2000E | 2012 | 1 | |
| K2000E | 2011 | 1 | |
| QSK78 | 2011 | 6 | |
| QSK45-C | 2011 | 1 | |
| QSK23-G3 | 2011 | 1 | |
| QSK78 | 2011 | 1 | |
| QSK78 | 2011 | 1 | |
| K1500E | 2011 | 1 | |
| QSK78 | 2010 | 1 | |
| K2000E | 2010 | 1 | |
| K1500E | 2010 | 1 | |
| KTA-38 | 2009 | 1 | |
| QSK45 | 2009 | 1 | |
| K1500E | 2009 | 1 | |
| QSK78 | 2009 | 1 | |
| QSK78 | 2008 | 1 | |
| KTA-38 | 2008 | 1 | |
| QSK23 | 2008 | 1 | |
| K1500E | 2008 | 1 | |
| QSK45 | 2008 | 1 | |
| QSK45 | 2008 | 1 | |
| QSK60 | 2008 | 3 | |
| QSK60 | 2008 | 3 | |
| QSK23-G3 | 2008 | 1 | |
| CUMMINS | 2006 | 1 | |
| 2006 | 2 | ||
| QSK45-C | 2005 | 6 | |
| QSK78 | 2004 | 6 | |
| QSK60-G4 | 1 | ||
| KTA-38C | 2 | ||
| KTTA-50C | 2 | ||
| 4012-46TAG2A | 1 | ||
| KTA38 | 2 | ||
| QSK45 | 6 | ||
| QSK23-G3 | 1 | ||
| KTA38 | 2 | ||
| QST30 | 1 | ||
| QSK45 | 1 | ||
| QSK60 | 1 | ||
| KTA50 | 1 | ||
| 1 | |||
| QSK45-C | 1 | ||
| KTA-38C | 2 | ||
| QSK60 | 1 | ||
| KTA38 | 1 | ||
| 4008A-TAG2 | 1 | ||
| 4016-61TAG3 | 1 | ||
| QST30 | 1 | ||
| S6RY2TAA2 | 1 | ||
| 4016-61TAG1 | 1 | ||
| VTA28-C | 2 | ||
| KTA-38C | 2 | ||
| 4008A-TAG1 | 1 | ||
| KTA38 | 1 | ||
| QSK78-G6 | 1 | ||
| 4016-61TAG2 | 1 | ||
| QSK60 | 4 | ||
| KTA-38C | 2 | ||
| QST30 | 1 | ||
| QSK60 | 1 | ||
| QSK45 | 1 | ||
| KTA38 | 2 | ||
| QSK60 | 3 | ||
| 4016TAG2A | 1 | ||
| 4012-46TAG3A | 1 | ||
| QSK23 | 2 | ||
| KTA-38C | 2 | ||
| 4016TAG1A | 1 | ||
| KTA50 | 1 | ||
| KTA-38C | 2 | ||
| 3 | |||
| QSK60-G8 | 1 | ||
| KTA38 | 1 | ||
| QSK60 | 1 | ||
| K1500 | 2 | ||
| QST30 | 1 | ||
| 1 | |||
| CUMMINS | 1 | ||
| QST30 | 1 |
