Specification
DOWNLOAD SPECS| Thread Size | 1-14 UNS-2B |
| Largest OD | 3.92 inch / 99.57 mm |
| Gasket OD | 2.83 inch / 71.98 mm |
| EMULSIFIED WATER SEPARATION | 90% |
| Length | 9.09 inch / 230.81 mm |
| Gasket Inside Diameter | 2.46 inch / 62.53 mm |
| Standpipe | NO |
| Applicable Region | North America, China, Europe, South America, South East Asia, South Pacific, Mexico and Central America |
Product Comments

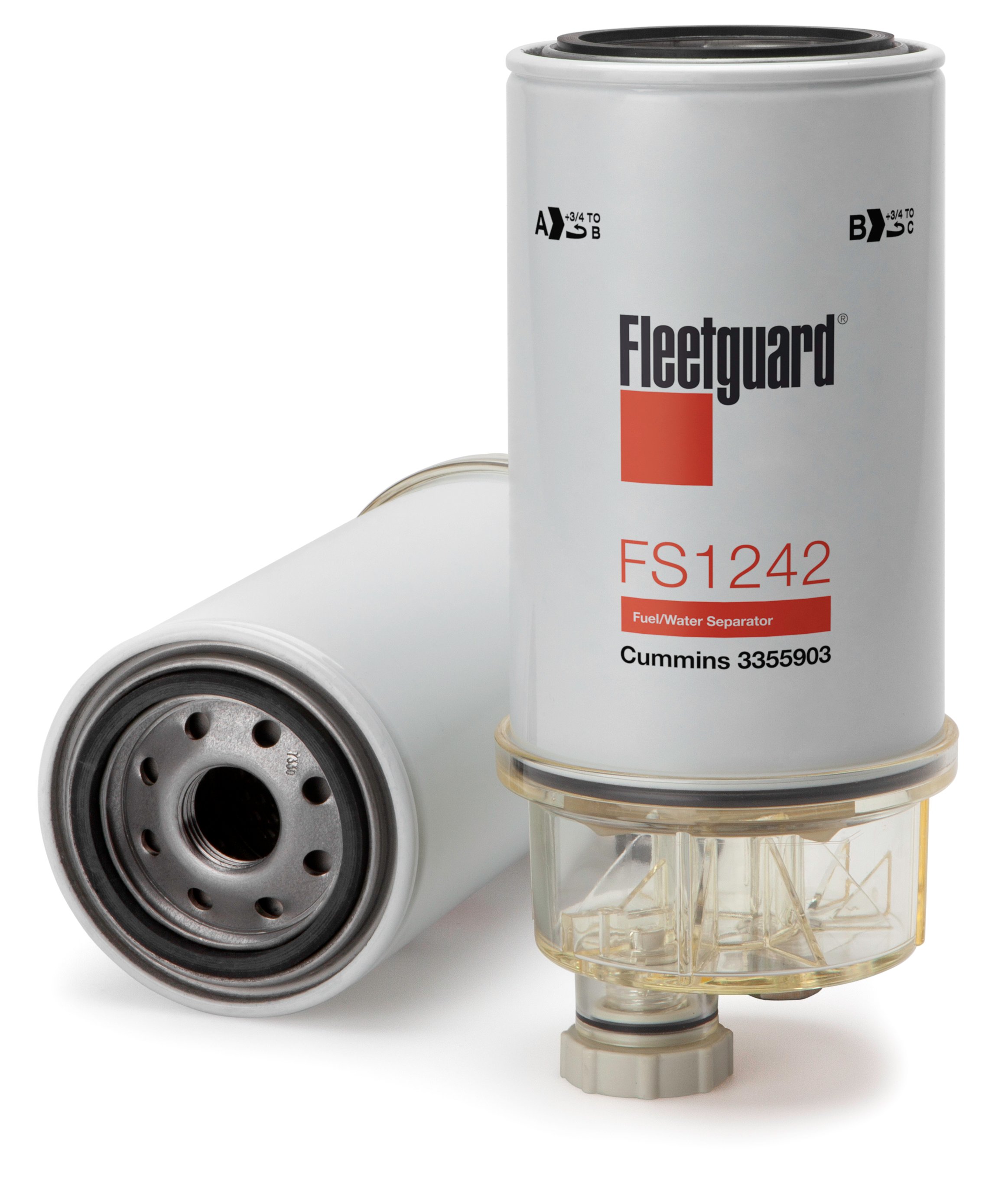

FS1242 and Bowl assembly
Related Parts
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| ISC8.3 | 2010 | 1 | |
| C7 | 2010 | 1 | |
| C7 | 2010 | 1 | |
| ISC8.3 | 2009 | 1 | |
| C7 | 2009 | 1 | |
| C7 | 2009 | 1 | |
| C7 | 2008 | 1 | |
| C7 | 2008 | 1 | |
| ISC8.3 | 2008 | 1 | |
| C7 | 2008 | 1 | |
| C7 | 2007 | 1 | |
| C7 | 2006 | 1 | |
| C7 | 2005 | 1 | |
| C7 | 2004 | 1 | |
| ISM11 | 2002 | 1 | |
| ISM11 | 2002 | 1 | |
| C10 | 1 | ||
| C12 | 1 | ||
| 6B5.9 | 1 | ||
| 3126 | 1 | ||
| 3126 | 1 | ||
| 3126 | 1 | ||
| NTC | 1 | ||
| L10 | 1 | ||
| NTC | 1 | ||
| V-903 | 1 | ||
| 3126 | 1 | ||
| 3126 | 1 | ||
| L10 | 1 | ||
| V-903 | 1 | ||
| 3406 | 1998 | 1 | |
| M11 | 1996 | 1 | |
| 3406 | 1985 | 1 | |
| 3126 | 1 | ||
| 3126 | 1 | ||
| 3126 | 1 | ||
| 3126 | 1 | ||
| 3126 | 1 | ||
| ISM11 | 2003 | 1 | |
| M11 | 1999 | 1 | |
| N14 | 1993 | 1 | |
| N14 | 1993 | 1 | |
| 6BT5.9-G6 | 1 | ||
| 6BT5.9-G2 | 1 | ||
| 6BT5.9-G1 | 1 | ||
| 6BTA5.9-G1 | 1 | ||
| 6BTA5.9-G3 | 1 | ||
| 6BT5.9-G4 | 1 | ||
| 6BT5.9-G5 | 1 | ||
| 6BTA5.9-G4 | 1 | ||
| M11-C | 1 | ||
| 6BT5.9-G1 | 1 | ||
| ISB99 | 1 | ||
| 6BT5.9-G3 | 1 | ||
| 6BTA5.9-G2 | 1 | ||
| 3126 | 1 | ||
| 3126 | 1 | ||
| ISL9 | 1 | ||
| Series 60 | 2016 | 1 | |
| Series 60 | 2015 | 1 | |
| Series 60 | 2014 | 1 | |
| Series 60 | 2013 | 1 | |
| Series 60 | 2012 | 1 | |
| 3126 | 1 | ||
| 3126 | 1 | ||
| Series 60 | 1 | ||
| 3126 | 1 | ||
| Series 60 | 1 | ||
| 3126 | 1 | ||
| 3126 | 1 | ||
| 3126 | 1 | ||
| 3126 | 1 | ||
| 3126 | 1 | ||
| M11 | 1 | ||
| M11 | 1 | ||
| M11 | 1 | ||
| M11 | 1 | ||
| M11 | 1 | ||
| 6CTAA | 2004 | 1 | |
| 6CTAA | 2004 | 1 | |
| 1 | |||
| 6CTA8.3 | 1 | ||
| 6CTA8.3 | 1 | ||
| 6CTA8.3 | 1 | ||
| N14 SERIES | 2004 | 1 | |
| D6AZ | 1 | ||
| LTA10 | 1 | ||
| LTA10 | 1 | ||
| LTA10 | 1 | ||
| LT10 | 1 | ||
| LTA10 | 1 | ||
| M11-C | 2006 | 1 | |
| M11-C | 2006 | 1 | |
| M11-C | 2006 | 1 | |
| M11-C | 2006 | 1 | |
| M11-C | 2006 | 1 | |
| 6BTAA5.9-G2 | 2012 | 1 | |
| 6BT5.9-G2 | 2012 | 1 | |
| M11-C | 2008 | 1 | |
| M11-C | 2008 | 1 | |
| M11 | 2008 | 1 | |
| M11-C | 2008 | 1 | |
| M11-C | 2008 | 1 | |
| M11-C | 2008 | 1 | |
| M11-C | 2008 | 1 | |
| CURSOR 8 | 2004 | 1 | |
| CURSOR 8 | 2004 | 1 | |
| CURSOR 8 | 2004 | 1 | |
| CURSOR 8 | 2004 | 1 | |
| ISM11 | 2003 | 1 | |
| CURSOR 8 | 2003 | 1 | |
| CURSOR | 2002 | 1 | |
| CURSOR | 2002 | 1 | |
| F2BE 1682G | 2002 | 1 | |
| CURSOR | 2001 | 1 | |
| L10 | 1994 | 1 | |
| L10 | 1994 | 1 | |
| Series 50 | 1993 | 1 | |
| L10 | 1993 | 1 | |
| N14 | 1985 | 1 | |
| 1 | |||
| 1 | |||
| 1 | |||
| NT855 | 1 | ||
| NTA855 | 1 | ||
| NH220 | 1 | ||
| 6CT8.3 | 1 | ||
| 6CTA8.3 | 1 | ||
| 6CTAA8.3 | 1 | ||
| 6BTAA5.9 | 1 | ||
| 6CTAA8.3 | 1 | ||
| 6BT5.9 | 1 | ||
| 6CTAA8.3 | 1 | ||
| 6BT5.9 | 1 | ||
| 6BT5.9 | 1 | ||
| 6CTAA8.3 | 1 | ||
| 6CTAA8.3 | 1 | ||
| ISC8.3 | 1 | ||
| 6CTAA8.3 | 1 | ||
| 6CT8.3 | 1 | ||
| 6CTAA8.3 | 1 | ||
| 6CTAA8.3 | 1 | ||
| 6CT8.3 | 1 | ||
| 6CTAA8.3 | 1 | ||
| 6CTAA8.3 | 1 | ||
| ISC8.3 | 1 | ||
| ISC8.3 | 1 | ||
| 6CTAA8.3 | 1 | ||
| ISC8.3 | 1 | ||
| NTA855 | 1 | ||
| NTA855 | 1 | ||
| NTA855 | 1 | ||
| 6BTAA5.9-G2 | 1 | ||
| 1 | |||
| 1 | |||
| C201 | 1 | ||
| 1 | |||
| 1 | |||
| 3126 | 1 | ||
| 6BT5.9-G2 | 1 | ||
| 1 | |||
| 1 | |||
| M11 | 1 | ||
| 6BT5.9-G1 | 1 | ||
| 1 |
