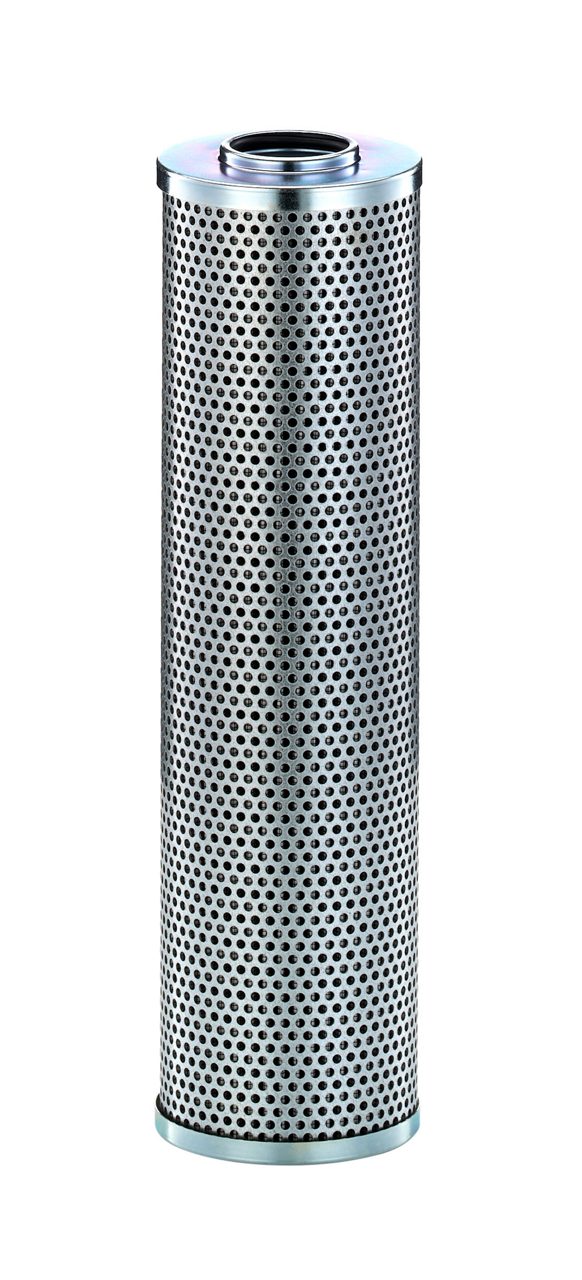

HF28809
Hydraulic Filter, Cartridge
Fleetguard® HF28809 hydraulic cartridge filter is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Largest End ID | 1.61 inch / 41.00 mm |
| Largest OD | 3.54 inch / 90.00 mm |
| Particle Size at Beta 75 | 17.00 micron (c) |
| Gasket OD | 1.82 inch / 46.26 mm |
| Pressure Valve | No |
| Test Specification | ISO 16889 |
| Length | 13.11 inch / 333.00 mm |
| Gasket Inside Diameter | 1.54 inch / 39.20 mm |
| Efficiency Test Std | ISO 16889 |
| Rated Flow | 31.70 gpm / 120.00 L/min |
| Element Collapse/Burst, Min | 700.00 kPa |
| Length / Overall Height | 13.11 inch / 333.00 mm |
| Applicable Region | North America, Europe, South America, South East Asia, South Pacific |
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| TD 2011 L04W | 2007 | 1 | |
| F4M2011F | 1 | ||
| D 2011 L04W | 2010 | 1 | |
| 56/C 9 | 2009 | 1 | |
| SAA4D95LE | 2009 | 1 | |
| 56/C 9 | 2009 | 1 | |
| 56/C 9 | 2009 | 1 | |
| BF4M2011 | 2008 | 1 | |
| S 4 D 95 LW E3 | 2008 | 1 | |
| KUBOTA | 2005 | 1 | |
| KUBOTA | 2005 | 1 | |
| BF4M2011 | 2005 | 1 | |
| F4L2011 | 2002 | 1 | |
| F4L2011 | 2002 | 1 | |
| OM457LA | 2001 | 2 | |
| OM 906 LA | 1998 | 1 | |
| OM 906 LA | 1998 | 1 | |
| 1996 | 1 | ||
| 704.30 | 1 | ||
| 1 | |||
| 1 | |||
| 1 | |||
| BF4M1012EC | 1 | ||
| 1 | |||
| 1 | |||
| 6081 | 1 |
