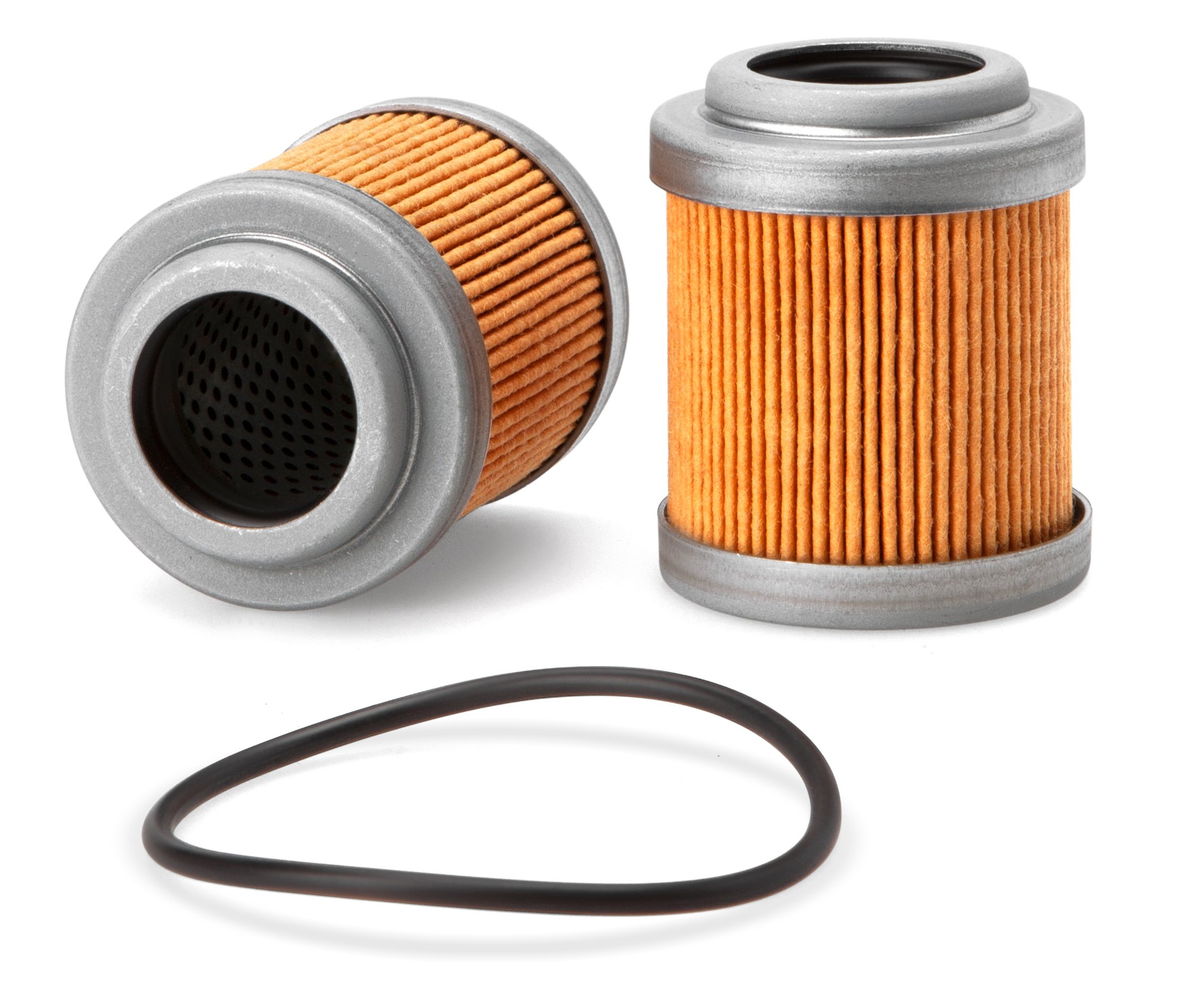

HF28835
Hydraulic Filter, Cartridge
Fleetguard® HF28835 hydraulic cartridge filter is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Length | 1.99 inch / 50.50 mm |
| Largest End ID | 0.91 inch / 23.00 mm |
| Particle Size at Beta 75 | 39.00 micron (c) |
| Gasket OD | 1.10 inch / 28.06 mm |
| Pressure Valve | No |
| Test Specification | ISO 16889 |
| Largest OD | 1.65 inch / 42.00 mm |
| Gasket Inside Diameter | 0.83 inch / 21.00 mm |
| Efficiency Test Std | ISO 16889 |
| Rated Flow | 2.38 gpm / 9.00 L/min |
| Element Collapse/Burst, Min | 3000.00 kPa |
| Length / Overall Height | 1.99 inch / 50.50 mm |
| Applicable Region | North America, Europe, South America, South East Asia, South Pacific |
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| 1 | |||
| 1 | |||
| 1 | |||
| 3LD1 | 1 | ||
| 3TNV70 | 2019 | 1 | |
| D1703-M-DI-E4 | 2019 | 1 | |
| D1703 | 2018 | 1 | |
| D1703 | 2017 | 1 | |
| 3TNV82A | 2017 | 1 | |
| V1505 | 2017 | 1 | |
| 4TNV88 | 2016 | 1 | |
| 3TNV70 | 2015 | 1 | |
| 3TNV70 | 2015 | 1 | |
| 3TNV70 | 2015 | 1 | |
| 3TNV76 | 2015 | 1 | |
| D1105-E4-BH-2 | 2014 | 1 | |
| 3 TNV 88F-EPTB | 2014 | 1 | |
| 3TNV88 | 2014 | 1 | |
| D1105-E4-BH-2 | 2014 | 1 | |
| 4TNV98-CT-WTB | 2014 | 1 | |
| 4TNV88CT-STB | 2014 | 1 | |
| 4TNV88-ZPHB | 2014 | 1 | |
| 4TNV94-ZWHB | 2014 | 1 | |
| 2013 | 1 | ||
| 4TNV88 | 2011 | 1 | |
| V2203MEBH2 | 2011 | 1 | |
| 2010 | 1 | ||
| 2010 | 1 | ||
| 2010 | 1 | ||
| 2010 | 1 | ||
| 3 TNV 88-SHBB | 2010 | 1 | |
| 3TNV70 | 2010 | 1 | |
| V 2203-M-EBH-3 | 2010 | 1 | |
| V2203MEBH2 | 2010 | 1 | |
| 3TNV70 | 2010 | 1 | |
| 3TNV88B | 2010 | 1 | |
| 2010 | 1 | ||
| 2010 | 1 | ||
| 2010 | 1 | ||
| V2203MEBH2 | 2009 | 1 | |
| V 2203-M-EBH-3 | 2009 | 1 | |
| 3YB1 | 2009 | 1 | |
| 4TNV98 | 2009 | 1 | |
| 4 TNV 88-N | 2009 | 1 | |
| 3YE1 | 2009 | 1 | |
| V2203MEBH2 | 2008 | 1 | |
| 3TNV70 | 2008 | 1 | |
| V 2203-M-EBH-3 | 2008 | 1 | |
| 4 TNV 88-N | 2008 | 1 | |
| 3YB1 | 2008 | 1 | |
| 3YE1 | 2008 | 1 | |
| 3TNV70 | 2008 | 1 | |
| 3TNV70-VHB | 2007 | 1 | |
| 4TNV88 | 2006 | 1 | |
| 4TNV88 | 2006 | 1 | |
| 3TNV88 | 2006 | 1 | |
| 3TNV88 | 2006 | 1 | |
| D1105-BH | 2004 | 1 | |
| D1105-K | 2004 | 1 | |
| 3YB1 | 2004 | 1 | |
| 3LD1 | 2003 | 1 | |
| 4LE1 | 2002 | 1 | |
| V1505 | 1992 | 1 | |
| V1505 | 1992 | 1 | |
| 3KC1 | 1990 | 1 | |
| 3KC1 | 1990 | 1 | |
| COMPACT LINE | 1 | ||
| 3LD1 | 1 | ||
| COMPACT LINE | 1 | ||
| D1105-B | 1 | ||
| 3YB1 | 1 | ||
| 1 | |||
| D1105-B | 1 | ||
| V2203-B | 1 | ||
| YANMAR | 1 | ||
| 1 | |||
| 4LE1 | 1 | ||
| D1105-B | 1 | ||
| COMPACT LINE | 1 | ||
| 4LE1 | 1 | ||
| 3LD1 | 1 | ||
| V2203-B | 1 | ||
| V2203 | 1 | ||
| 1 | |||
| V1505 | 1 | ||
| V1505 | 1 | ||
| 1 | |||
| V2203 | 1 | ||
| 1 | |||
| 1 | |||
| 3TNV88 | 1 | ||
| D1503E | 1 | ||
| 1 | |||
| 3YE1 | 1 | ||
| COMPACT LINE | 1 | ||
| 3TNV76 | 1 | ||
| COMPACT LINE | 1 | ||
| 3YB1 | 1 | ||
| 1 | |||
| 1 | |||
| 1 | |||
| 4TNV88 | 1 | ||
| D1105-B | 1 | ||
| 3LD1 | 1 | ||
| D1105-KA | 1 | ||
| 4LE2 | 1 | ||
| 3LD1 | 1 | ||
| D1105-B | 1 | ||
| COMPACT LINE | 1 | ||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| V2203-KA | 1 | ||
| 1 | |||
| KUBOTA | 1 | ||
| 1 | |||
| 3LD2 | 1 | ||
| 4LE2 | 1 | ||
| V1505 | 1 | ||
| KUBOTA | 1 | ||
| 3LD1 | 1 | ||
| D1105-B | 1 |
