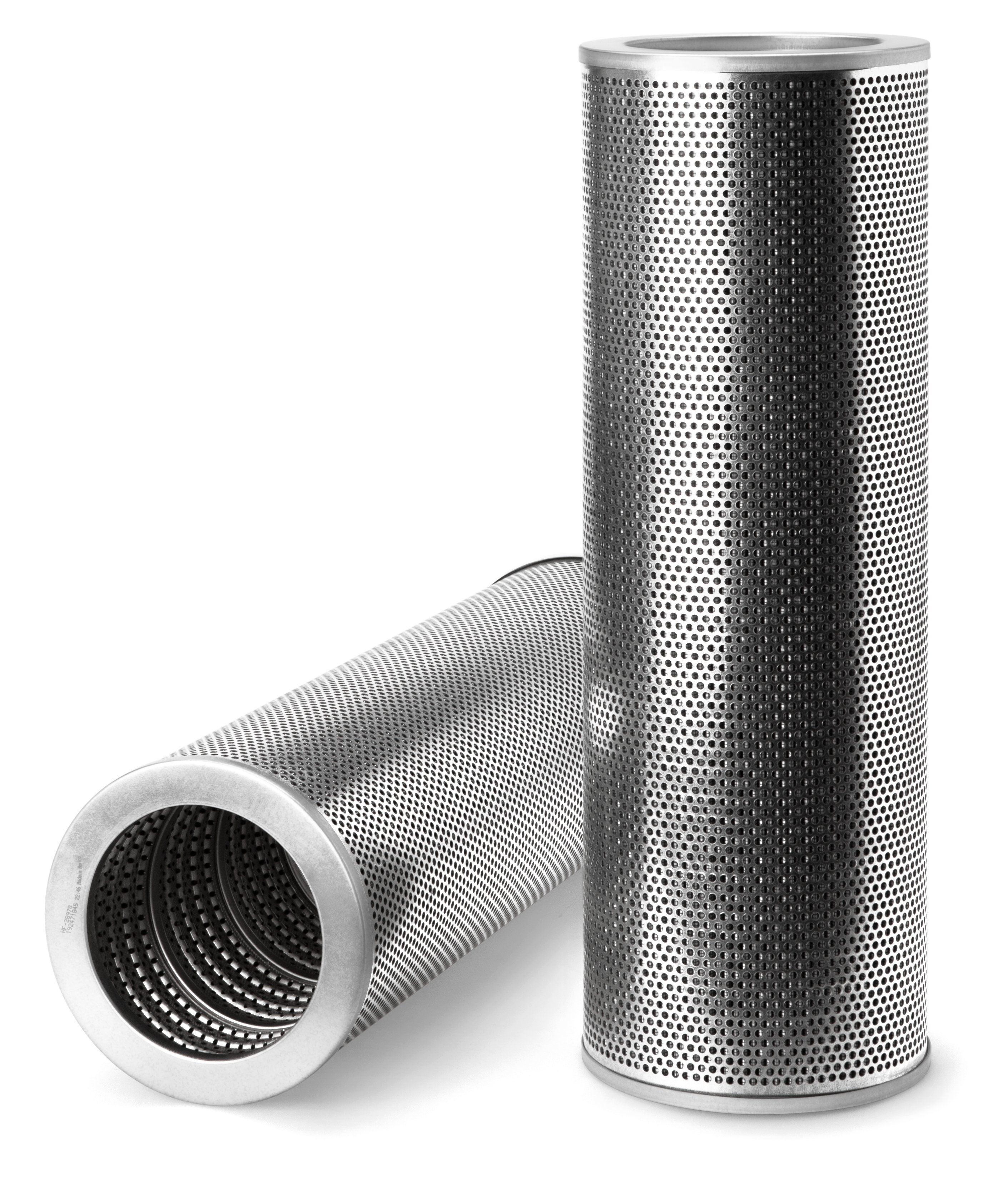

HF28978
Hydraulic Filter, Cartridge
Fleetguard® HF28978 premium hydraulic cartridge filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Largest OD | 5.91 inch / 150.01 mm |
| Efficiency Test Std | ASHRAE 52 |
| Particle Size at Beta 75 | 11.50 micron (c) |
| Rated Flow | 81.29 gpm / 307.70 L/min |
| Test Specification | ASHRAE 52 |
| Gasket Inside Diameter | 4.62 inch / 117.35 mm |
| Length | 17.87 inch / 453.90 mm |
| Particle Size at Beta 200 | 3.00 micron (c) |
| Gasket OD | 5.81 inch / 147.57 mm |
| Element Collapse/Burst, Min | 689.50 kPa |
| Largest End ID | 4.33 inch / 109.96 mm |
| Length / Overall Height | 17.87 inch / 453.90 mm |
| Applicable Region | North America, Europe, South America, South East Asia, South Pacific, Mexico and Central America |
Related Parts
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| SAA6D125E-3H | 2013 | 1 | |
| SAA12V140ZE-2 | 2011 | 1 | |
| SAA6D140E-5 | 2008 | 1 | |
| SAA6D140E-3 | 2008 | 2 | |
| SAA12V140E-3 | 2007 | 3 | |
| SAA6D140E-5 | 2006 | 1 | |
| SAA6D125E-5 | 2006 | 1 | |
| SAA6D140E-5 | 2006 | 1 | |
| SAA6D125E-5 | 2006 | 1 | |
| SA6D114-1 | 2004 | 1 | |
| SA6D114-1 | 2004 | 1 | |
| SA6D114 | 2004 | 1 | |
| N14 | 2004 | 1 | |
| SA6D114-1 | 2004 | 1 | |
| SA6D114-1 | 2004 | 1 | |
| SA6D114-1 | 2004 | 1 | |
| SA6D114 | 2004 | 1 | |
| 2003 | 1 | ||
| SAA6D108 | 1 | ||
| SA6D95L-1 | 1 | ||
| 1 | |||
| 6D105 | 1 | ||
| SA6D140-1 | 3 | ||
| NT855 | 1 | ||
| SA8V170 | 1 | ||
| 1 | |||
| S6D170-1 | 1 | ||
| 1 | |||
| SA6D170E | 1 | ||
| S6D95L | 1 | ||
| KT-2300 | 1 | ||
| SA12V140 | 3 | ||
| SA6D102E-1 | 1 | ||
| SA6D95L-1 | 1 | ||
| SA6D95L-1 | 1 | ||
| 6D105 | 1 | ||
| KTA-2300 | 1 | ||
| SAA6D140E | 2 | ||
| KT19C | 1 | ||
| 1 | |||
| 1 | |||
| S6D95L-1 | 1 | ||
| S6D102E | 1 | ||
| S6D170 | 1 | ||
| 6D105 | 1 | ||
| SAA6D170E | 1 | ||
| S6D105-1 | 1 | ||
| SAA12V140E-3 | 6 | ||
| SA12V170E-2 | 1 | ||
| SA6D102E | 1 | ||
| SA6D102E | 1 | ||
| 1 | |||
| 1 | |||
| SAA6D140E | 2 | ||
| SA6D140-1 | 1 | ||
| 1 | |||
| S6D102-1 | 1 | ||
| SA6D102E-1 | 1 | ||
| S6D102E | 1 | ||
| SAA6D108E-2 | 1 | ||
| SAA12V140E | 3 | ||
| SAA6D114E | 1 | ||
| SA6D108-1 | 1 | ||
| S6D102E | 1 | ||
| 1 | |||
| S6D102E-1 | 1 | ||
| 6D105-1 | 1 | ||
| 1 | |||
| 1 | |||
| QSK19 | 1 | ||
| KTA-1150 | 2 | ||
| S6D95L | 1 | ||
| SA6D102EA-1 | 1 | ||
| SA12V170 | 1 | ||
| 1 | |||
| SA8V1710 | 1 | ||
| SAA6D140E-5 | 1 | ||
| 1 | |||
| S6D125-1T | 1 | ||
| S6D102E | 1 | ||
| SA12V140-1 | 1 | ||
| S6D125-1S | 1 | ||
| S6D125-1T | 1 | ||
| 4D130-1 | 1 | ||
| 1 | |||
| QST30 SERIES | 1 | ||
| SAA6D108E-2 | 1 | ||
| 1 | |||
| SAA6D170E-5 | 2 | ||
| S6D125-1 | 1 | ||
| SA6D95L-1 | 1 | ||
| S6D125-1 | 1 | ||
| 1 | |||
| S6D95L-1 | 1 | ||
| S6D170E | 2 | ||
| SA12V170 | 1 | ||
| 1 | |||
| S6D95L-1 | 1 | ||
| SA8V170-1 | 1 | ||
| 1 | |||
| 1 | |||
| SAA6D140E-2 | 2 | ||
| S6D102-1 | 1 | ||
| S6D125-1 | 1 | ||
| S6D170-1 | 2 | ||
| SAA6D108E | 1 | ||
| SA6D170B-1 | 4 | ||
| SA6D95L-1 | 1 | ||
| S6D95L-1 | 1 | ||
| 1 | |||
| 1 | |||
| NT855 | 1 | ||
| QSK19 | 1 | ||
| 6D105 | 1 | ||
| SA6D140-1 | 1 | ||
| 1 | |||
| S6D102E | 1 | ||
| S6D102E-1 | 1 | ||
| S6D102E | 1 | ||
| SA6D140-1 | 2 | ||
| NT855 | 1 | ||
| 1 | |||
| SA6D140-1 | 6 | ||
| SA6D95L-1 | 1 | ||
| 1 | |||
| SA12V140-1R | 3 | ||
| S6D95 | 1 | ||
| KTA-2300 | 1 | ||
| 1 | |||
| SAA6D140E-5 | 1 | ||
| S6D170 | 2 | ||
| SAA6D140E-2 | 2 | ||
| S6D102E | 1 | ||
| 6D105 | 1 | ||
| SA12V140-1 | 1 | ||
| S6D102E | 1 | ||
| SA6D170E-2 | 1 | ||
| SA6D102E-1 | 1 | ||
| S6D170E | 2 | ||
| S6D95L | 1 | ||
| SAA6D108 | 1 | ||
| 1 | |||
| SA6D140-1 | 3 | ||
| SAA12V140E-3 | 1 | ||
| 6D105 | 1 | ||
| N855 | 1 | ||
| 1 | |||
| 1 | |||
| 1 | |||
| SA6D95L | 1 | ||
| S6D170-1 | 1 | ||
| SA6D102E | 1 | ||
| S6D125-1 | 1 | ||
| SAA6D170E-3 | 1 | ||
| 1 | |||
| SAA6D140E | 2 | ||
| SA12V140 | 3 | ||
| SAA6D140E | 2 | ||
| SAA6D140E | 1 | ||
| KTA-1150 | 1 | ||
| S6D170-1 | 5 | ||
| SA6D140 | 1 | ||
| SA6D102E-1 | 1 | ||
| S6D102E-1 | 1 | ||
| SAA6D140E-2 | 2 | ||
| QSK60 | 1 | ||
| S6D125-1S | 1 | ||
| 1 | |||
| SA6D114-1 | 1 | ||
| SA6D102-1 | 1 | ||
| SAA6D140E | 2 | ||
| 6D105-1 | 1 | ||
| SA6D108 | 1 | ||
| SA6D108-1 | 1 | ||
| S6D95L | 1 | ||
| 1 | |||
| KT19C | 1 | ||
| S6D170 | 2 | ||
| S6D95L-1 | 1 | ||
| SAA6D108E-2 | 1 | ||
| 1 | |||
| SA6D95L | 1 | ||
| KT-1150 (QTY 2) | 1 | ||
| SA6D108 | 1 | ||
| SAA6D170E | 1 | ||
| SA6D108-1 | 1 | ||
| 1 | |||
| S6D105-1 | 1 | ||
| SA6D170B-1 | 4 | ||
| SAA6D108 | 1 | ||
| S6D125-1T | 1 | ||
| KT-2300 | 1 | ||
| 1 | |||
| QSK19 | 2 | ||
| SA6D140 | 1 | ||
| QST30 | 3 | ||
| S6D102-1 | 1 | ||
| SA6D114E-1 | 1 | ||
| SAA6D140E | 2 | ||
| 1 | |||
| 614TA | 1 | ||
| 1 | |||
| SA8V1710 | 1 | ||
| NT855 | 1 | ||
| S6D102-1 | 1 | ||
| KTA-3067 | 1 | ||
| SA6D140 | 1 | ||
| KT-2300 | 1 | ||
| 1 | |||
| SA12V140 | 1 | ||
| SAA6D140E-2 | 2 | ||
| SAA6D140E-2 | 2 | ||
| SAA6D125E | 1 | ||
| 1 | |||
| SAA6D108 | 1 | ||
| S6D125-1 | 1 | ||
| S6D102E | 1 | ||
| S6D170-1 | 1 | ||
| SA6D108 | 1 | ||
| 6D105 | 1 | ||
| S6D102E-1 | 1 | ||
| SA6D170B-1 | 4 | ||
| 614TA | 1 | ||
| SAA6D170E-3 | 2 | ||
| 1 | |||
| 1 | |||
| QSK60 | 1 | ||
| S6D170E-2C | 2 | ||
| NT855 | 1 | ||
| SA12V170-1 | 1 | ||
| S6D102-1 | 1 | ||
| 1 | |||
| SA6D108 | 1 | ||
| S6D95L | 1 | ||
| S6D170-1 | 2 | ||
| S6D170 | 1 | ||
| SAA6D108 | 1 | ||
| SA6D170 | 1 | ||
| S6D102E | 1 | ||
| S6D95L | 1 | ||
| S6D102-1 | 1 | ||
| SA6D140-1 | 1 | ||
| S6D95L-1 | 1 | ||
| S6D102E-1 | 1 | ||
| S6D102E | 1 | ||
| S6D125-1 | 1 | ||
| SAA6D140E | 2 | ||
| QSK19 | 1 | ||
| 1 | |||
| SAA6D114E | 1 | ||
| SA6D95L-1 | 1 | ||
| SAA6D170E-5 | 2 | ||
| S6D102E | 1 | ||
| SA6D170A | 1 | ||
| SA6D108 | 1 | ||
| NT855 | 1 | ||
| KT19 | 1 | ||
| SAAD140E | 6 | ||
| KTA-2300 | 1 | ||
| S6D102E-1 | 1 | ||
| 1 | |||
| S6D105-1 | 1 | ||
| SA8V1710 | 1 | ||
| 1 | |||
| SA6D95L-1 | 1 | ||
| SAA6D114E | 1 | ||
| 1 | |||
| S6D105 | 1 | ||
| 1 | |||
| S6D95L-1 | 1 | ||
| 1 | |||
| SA12V170 | 1 | ||
| S6D125 | 1 | ||
| 1 | |||
| S6D95L-1 | 1 | ||
| S6D95L | 1 | ||
| 1 | |||
| S6D102-1 | 1 | ||
| S6D95L | 1 | ||
| SA12V170 | 1 | ||
| S6D102E | 1 | ||
| SAA6D108E-2 | 1 | ||
| 1 | |||
| 2011 | 1 | ||
| AH-4HK1X | 2007 | 1 | |
| 4HK1X | 2007 | 1 | |
| AH-4HK1X | 2007 | 1 | |
| 6HK1Y | 1 | ||
| DL06K | 2012 | 1 | |
| SAA6D170-2 | 2011 | 1 | |
| D6A180 | 2011 | 1 | |
| SAA6D170-2 | 2010 | 1 | |
| QSB4.5 | 2009 | 1 | |
| SAA6D170-2 | 2009 | 1 | |
| QSM11 | 2008 | 1 | |
| SAA6D170-2 | 2008 | 1 | |
| DL06 | 2008 | 1 | |
| QSM11 | 2008 | 1 | |
| DL06 | 2008 | 1 | |
| DB58TIS | 2006 | 1 | |
| DB58TIS | 2006 | 1 | |
| DB58TIS | 2006 | 1 | |
| DB58TIS | 2006 | 1 | |
| DB58TIS | 2006 | 1 | |
| DB58TIS | 2006 | 1 | |
| DV15T | 1 | ||
| DE12TIS | 1 | ||
| D2366 | 1 | ||
| 1 | |||
| 1 | |||
| PD604 | 1 | ||
| N14 | 1 | ||
| DB58TI | 1 | ||
| PD604 | 1 | ||
| DB58T | 1 | ||
| DB58TI | 1 | ||
| 6D34T | 1 | ||
| EM100 | 1 | ||
| 6D34T | 1 | ||
| DB58TIS | 1 | ||
| 1 | |||
| PD604 | 1 | ||
| DB58TIS | 1 | ||
| MITSUBISHI | 1 | ||
| 1 | |||
| DB58T | 1 | ||
| DB58TI | 1 | ||
| 6D34T | 1 | ||
| 6D34 | 1 | ||
| 6D31T | 1 | ||
| PD604 | 1 | ||
| EM100 | 1 | ||
| MITSUBISHI | 1 | ||
| D1146T | 1 | ||
| DB58TIS | 1 | ||
| DB58TIS | 1 | ||
| D2366T | 1 | ||
| DE08TIS | 1 | ||
| D2366 | 1 | ||
| DE12TI | 1 | ||
| 6D34T | 1 | ||
| QSM11 | 1 | ||
| DE12T | 1 | ||
| DE12TIA | 1 | ||
| 6D34 | 1 | ||
| D2848T | 1 | ||
| MITSUBISHI | 1 | ||
| 1 | |||
| 1 | |||
| EM100 | 1 | ||
| PD604 | 1 | ||
| DB58TI | 1 | ||
| 6D31T | 1 |
