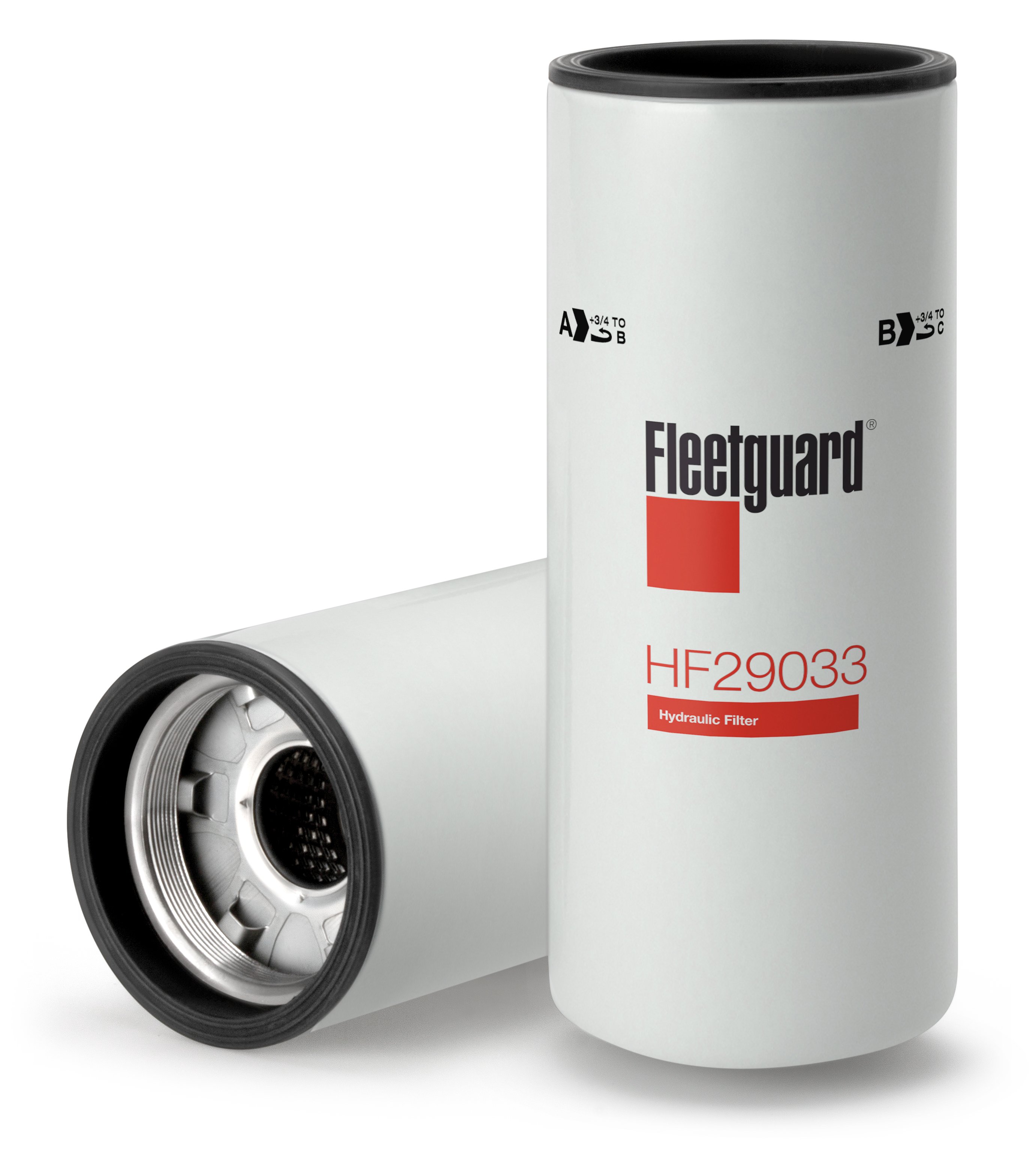

HF29033
Hydraulic Filter, Spin-On
Fleetguard® HF29033 hydraulic spin-on filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Thread Size | M90 X 2-7H INT |
| Largest OD | 4.72 inch / 119.89 mm |
| Gasket OD | 4.68 inch / 118.87 mm |
| Standpipe | NO |
| TWA MICRON @ BETA=20 | 3.00 micron |
| TWA MICRON @ BETA=75 | 6.00 micron |
| Length | 11.71 inch / 297.38 mm |
| Gasket Inside Diameter | 4.00 inch / 101.60 mm |
| Seam OD | 4.72 in / 119.89 mm |
| TWA MICRON @ BETA=2 | 1.00 micron |
| TWA MICRON @ BETA=200 | 10.00 micron |
| Applicable Region | North America, China, Europe, South America, South East Asia, South Pacific, Mexico and Central America |
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| PowerTech 6068 | 2019 | 1 | |
| 4045HT073 | 2015 | 1 | |
| JDEERE | 2012 | 1 | |
| 1 | |||
| 1 | |||
| 6090H | 1 | ||
| 1 | |||
| 6081H | 1 | ||
| 6068 | 1 | ||
| 1 | |||
| 1 | |||
| 1 | |||
| 6090H | 1 | ||
| 6068 | 1 | ||
| 4045HT POWERTECH E | 1 | ||
| 1 | |||
| 1 | |||
| 6081H | 1 | ||
| 4045D | 1 | ||
| 1 | |||
| 6068H | 1 | ||
| 6068H | 1 | ||
| 1 | |||
| 1 | |||
| 6068H | 1 | ||
| 6068H | 1 | ||
| 4045HT POWERTECH E | 1 | ||
| 1 | |||
| 6090H | 1 | ||
| 4045 POWERTECH | 1 | ||
| 1 | |||
| 4045HT POWERTECH E | 1 | ||
| 1 | |||
| 6090H | 1 | ||
| 6068T | 1 |
