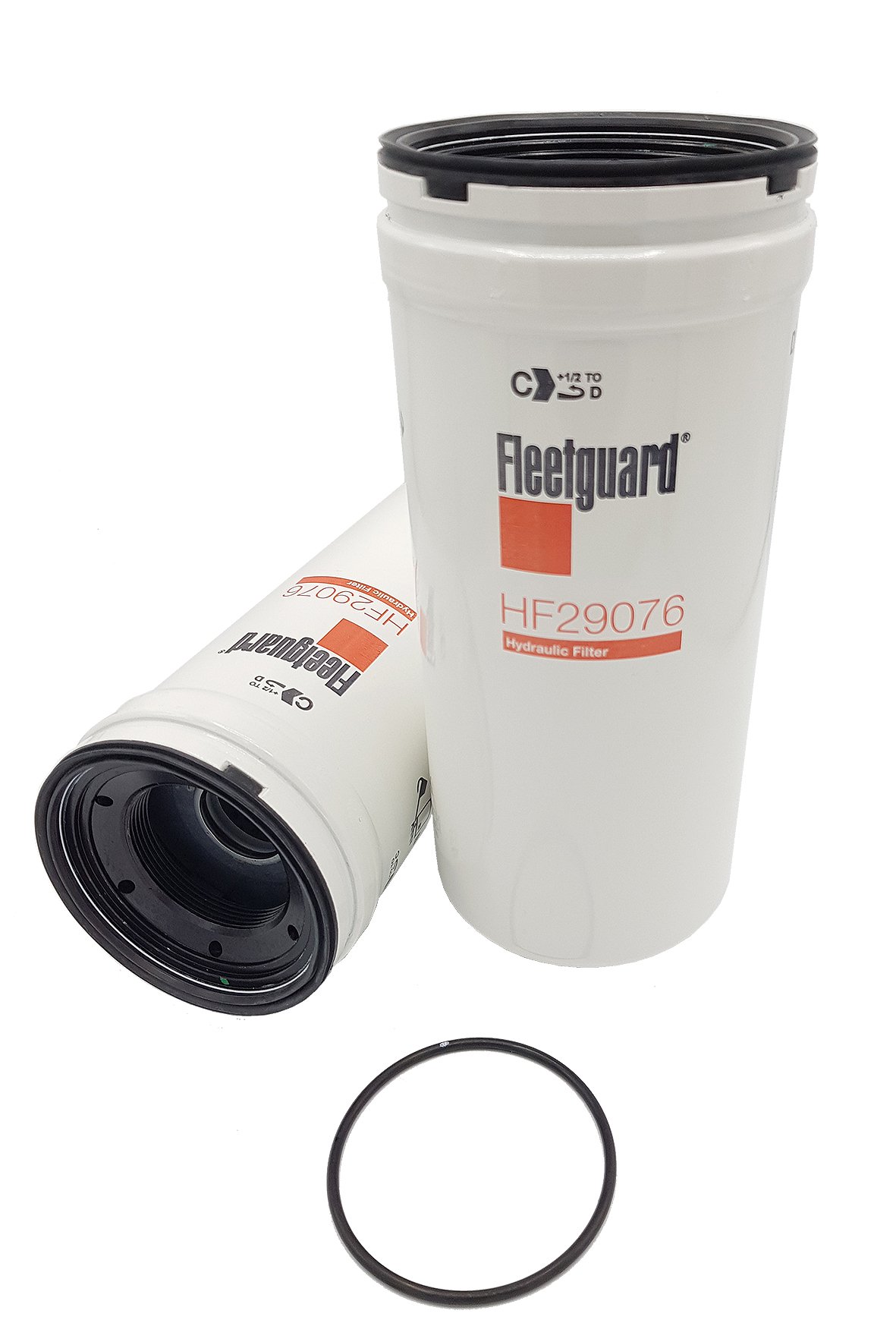

HF29076
Hydraulic Filter, Spin-On
Fleetguard® HF29076 hydraulic spin-on filter with cellulose media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Thread Form | Metric |
| Thread Pitch | 0.08 inch / 2.00 mm |
| Length | 10.18 inch / 258.50 mm |
| Particle Size at Beta 75 | 25.00 micron (c) |
| Media Type | Cellulose |
| Pressure Valve | No |
| BPV OPENING DP | No |
| Thread Diameter | 2.36 inch / 60.00 mm |
| Gasket OD | 3.35 inch / 85.00 mm |
| Thread Class | 6H |
| Length / Overall Height | 10.18 inch / 258.50 mm |
| Gasket Inside Diameter | 3.07 inch / 78.00 mm |
| Applicable Region | North America, Europe, South America, South East Asia, South Pacific |
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| SAA6D125E-3H | 2013 | 1 | |
| SAA6D125E-6 | 2012 | 2 | |
| SAA6D140E-6 | 2012 | 2 | |
| 2012 | 1 | ||
| 2012 | 1 | ||
| SAA6D107E-1 | 2012 | 1 | |
| SAA6D140E-5 | 2012 | 2 | |
| SAA6D114E-3 | 2011 | 1 | |
| SAA6D107E-2 | 2011 | 1 | |
| SAA6D114E-3 | 2010 | 1 | |
| SAA6D114E-3 | 2010 | 1 | |
| SAA6D107E | 2010 | 1 | |
| 2009 | 1 | ||
| 2008 | 1 | ||
| 2008 | 1 | ||
| SAA6D125E-5 | 2008 | 1 | |
| SAA6D140E-3 | 2008 | 2 | |
| SAA6D125E-5 | 2008 | 1 | |
| 2008 | 1 | ||
| 2008 | 1 | ||
| SAA6D114E-3 | 2007 | 1 | |
| SAA6D107E | 2006 | 1 | |
| SAA6D125E-5 | 2006 | 1 | |
| SAA6D140E-5 | 2006 | 2 | |
| SAA6D140E-5 | 2006 | 2 | |
| SAA6D125E-5 | 2006 | 1 | |
| 2005 | 1 | ||
| 2003 | 1 | ||
| SAA6D125E-3 | 2001 | 1 | |
| SAA6D114E-3 | 1 | ||
| SAA6D102E | 1 | ||
| 1 | |||
| SAA6D114E-1 | 1 | ||
| SAA6D140E | 2 | ||
| SAA6D114E-3 | 1 | ||
| 1 | |||
| SAA6D125E-3 | 1 | ||
| SA6D102E | 1 | ||
| 1 | |||
| 1 | |||
| 1 | |||
| SAA6D125E | 1 | ||
| 1 | |||
| ISUZU | 1 | ||
| SAA6D125E-3 | 1 | ||
| 1 | |||
| SAA6D125E-3 | 1 | ||
| SAA6D107E-1 | 1 | ||
| SAA6D125E-3 | 1 | ||
| SAA6D102E | 1 | ||
| SA6D102E | 1 | ||
| SAA6D114E-3 | 1 | ||
| SAA6D125E-3 | 1 | ||
| S6D125-1 | 1 | ||
| 1 | |||
| QSB 6.7 | 2006 | 1 | |
| QSM11 | 2006 | 1 | |
| QSK19 (TIER 2) | 2006 | 1 | |
| QSX15 | 2006 | 1 | |
| QSC8.3 | 2006 | 1 | |
| QSC8.3 | 2006 | 1 | |
| QSL9 | 2017 | 1 | |
| SAA6D107E | 2014 | 1 | |
| SAAD107E-1 | 2013 | 1 | |
| SAAD107E-1 | 2012 | 1 | |
| SAAD107E-1 | 2011 | 1 | |
| SAAD107E-1 | 2010 | 1 | |
| V3307-DI-T | 2010 | 1 | |
| V3307-DI-T | 2010 | 1 | |
| SAAD107E-1 | 2009 | 1 | |
| SAAD107E-1 | 2008 | 1 | |
| YANMAR | 2004 | 1 | |
| YANMAR | 1 | ||
| 1 | |||
| YANMAR | 1 |
