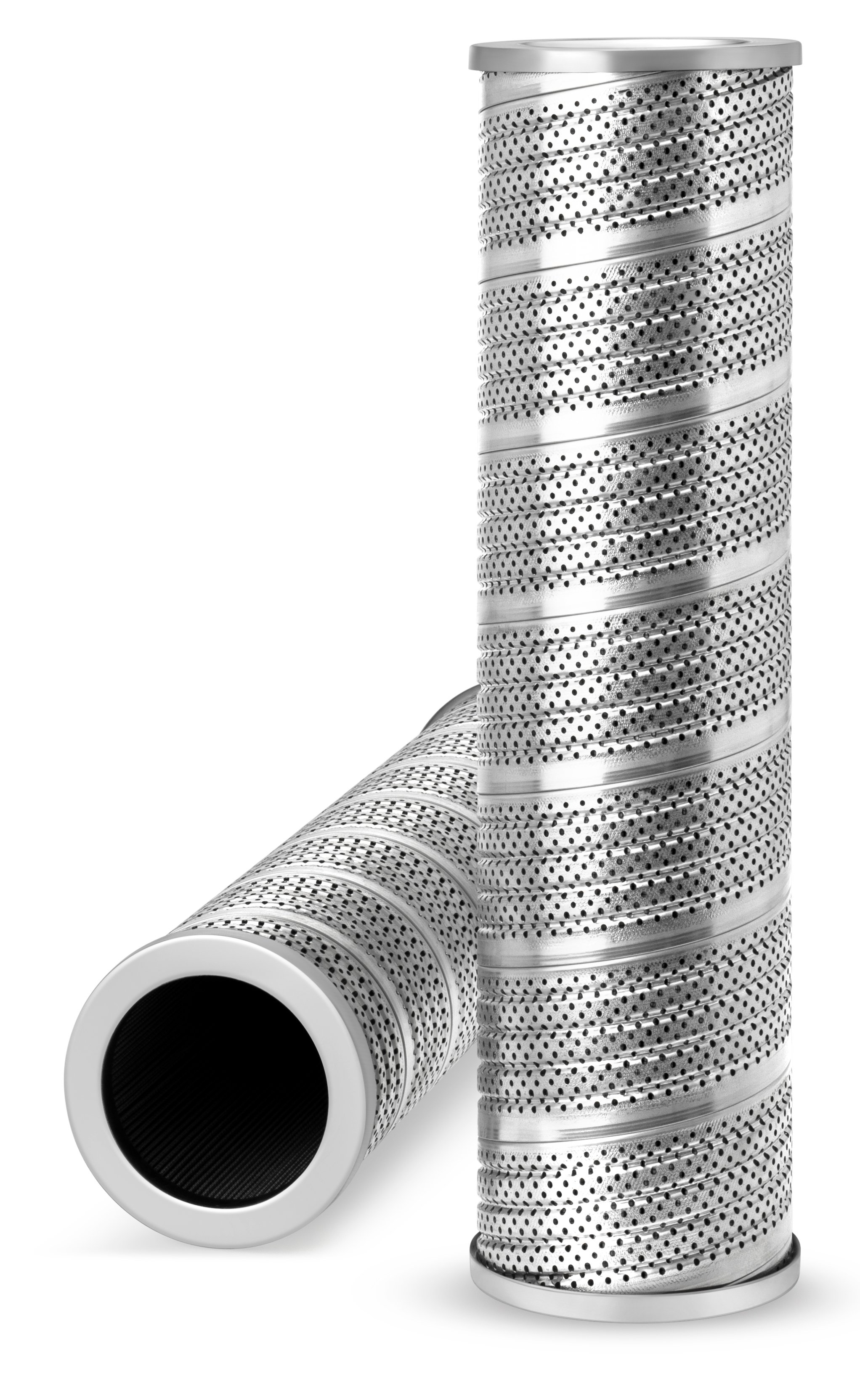

HF29128
Hydraulic Filter, Cartridge
Fleetguard® HF29128 hydraulic cartridge filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Largest End ID | 3.62 inch / 92.00 mm |
| Largest OD | 4.92 inch / 125.00 mm |
| Particle Size at Beta 75 | 4.00 micron (c) |
| Rated Flow | 105.68 gpm / 400.00 L/min |
| Element Collapse/Burst, Min | 1720.00 kPa |
| Particle Size at Beta 1000 | 6.30 micron (c) |
| Gasket Inside Diameter | 0.37 inch / 9.50 mm |
| Length | 18.90 inch / 480.00 mm |
| Particle Size at Beta 200 | 4.80 micron (c) |
| Efficiency Test Std | ISO 16889 |
| Pressure Valve | No |
| Media Type | Microglass |
| Test Specification | ISO 16889 |
| Length / Overall Height | 18.90 inch / 480.00 mm |
| Applicable Region | North America, Europe, South America, South East Asia, South Pacific |
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| OM501LA | 1 | ||
| POWERTECH PLUS 6090 SERIES | 1 | ||
| OM501LA | 1 | ||
| POWERTECH PLUS 6090 SERIES | 1 | ||
| OM471LA/6R1300 | 2019 | 1 | |
| OM473LA/6R1500 | 2018 | 1 | |
| OM471LA/6R1300 | 2018 | 1 | |
| OM473LA/6R1500 | 2018 | 1 |
