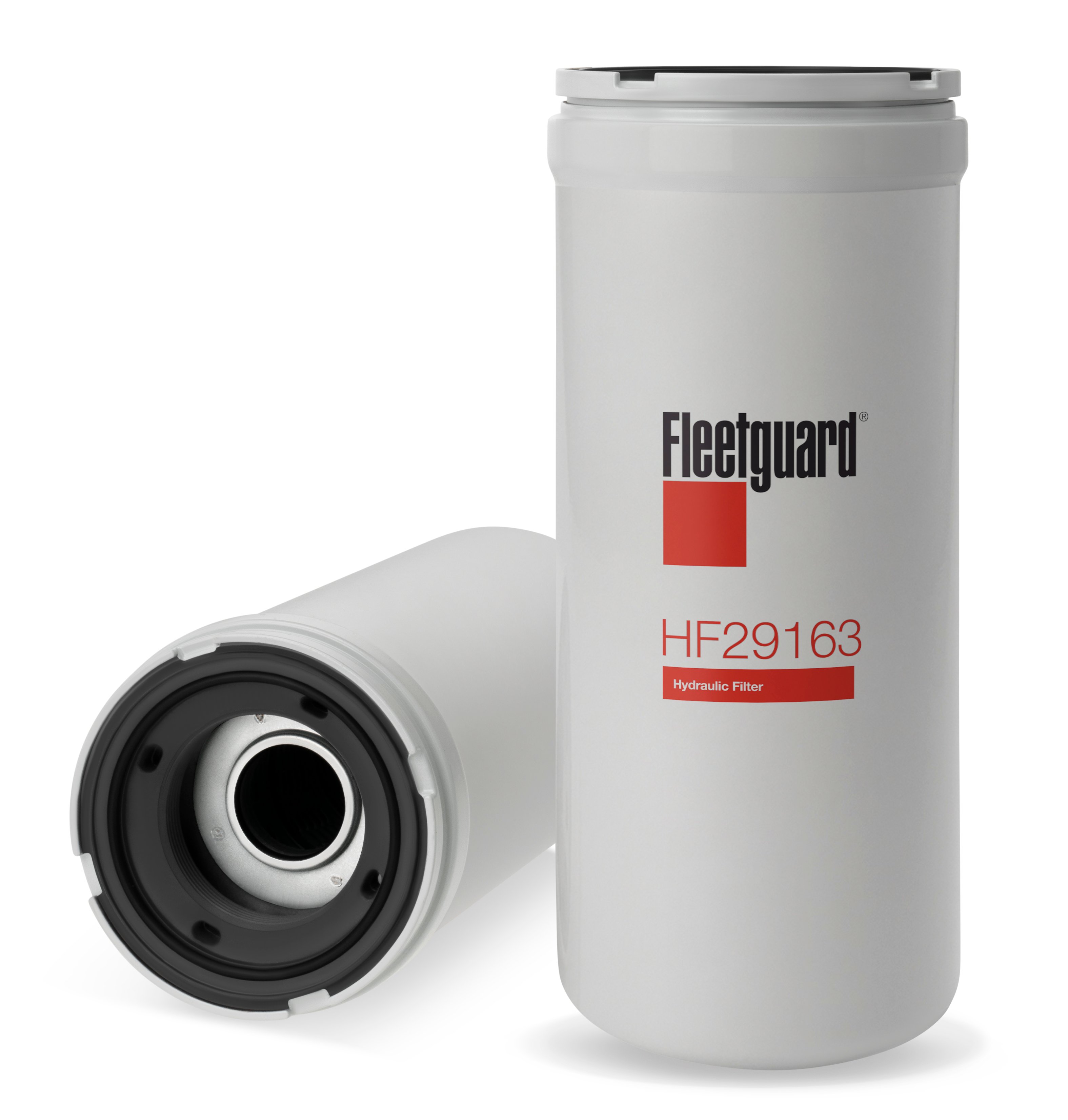

HF29163
Hydraulic Filter, Spin-On
Fleetguard® HF29163 hydraulic spin-on filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Thread Form | Metric |
| BPV OPENING DP | No |
| Length | 10.28 inch / 261.00 mm |
| Particle Size at Beta 200 | 27.10 micron (c) |
| Thread Class | 6H |
| Media Type | Microglass |
| Pressure Valve | No |
| Thread Pitch | 0.08 inch / 2.00 mm |
| Thread Diameter | 2.36 inch / 60.00 mm |
| Gasket OD | 3.36 inch / 85.28 mm |
| Particle Size at Beta 75 | 25.40 micron (c) |
| Length / Overall Height | 10.28 inch / 261.00 mm |
| Gasket Inside Diameter | 3.13 inch / 79.38 mm |
| Applicable Region | North America, Europe, South America, South East Asia, South Pacific |
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| QSB 6.7 | 2007 | 1 | |
| OM 460 LA | 2006 | 1 | |
| 6WG1 | 2006 | 1 | |
| 6WG1 XQC-01 | 2006 | 1 |
