HF30921
Hydraulic Filter, Cartridge

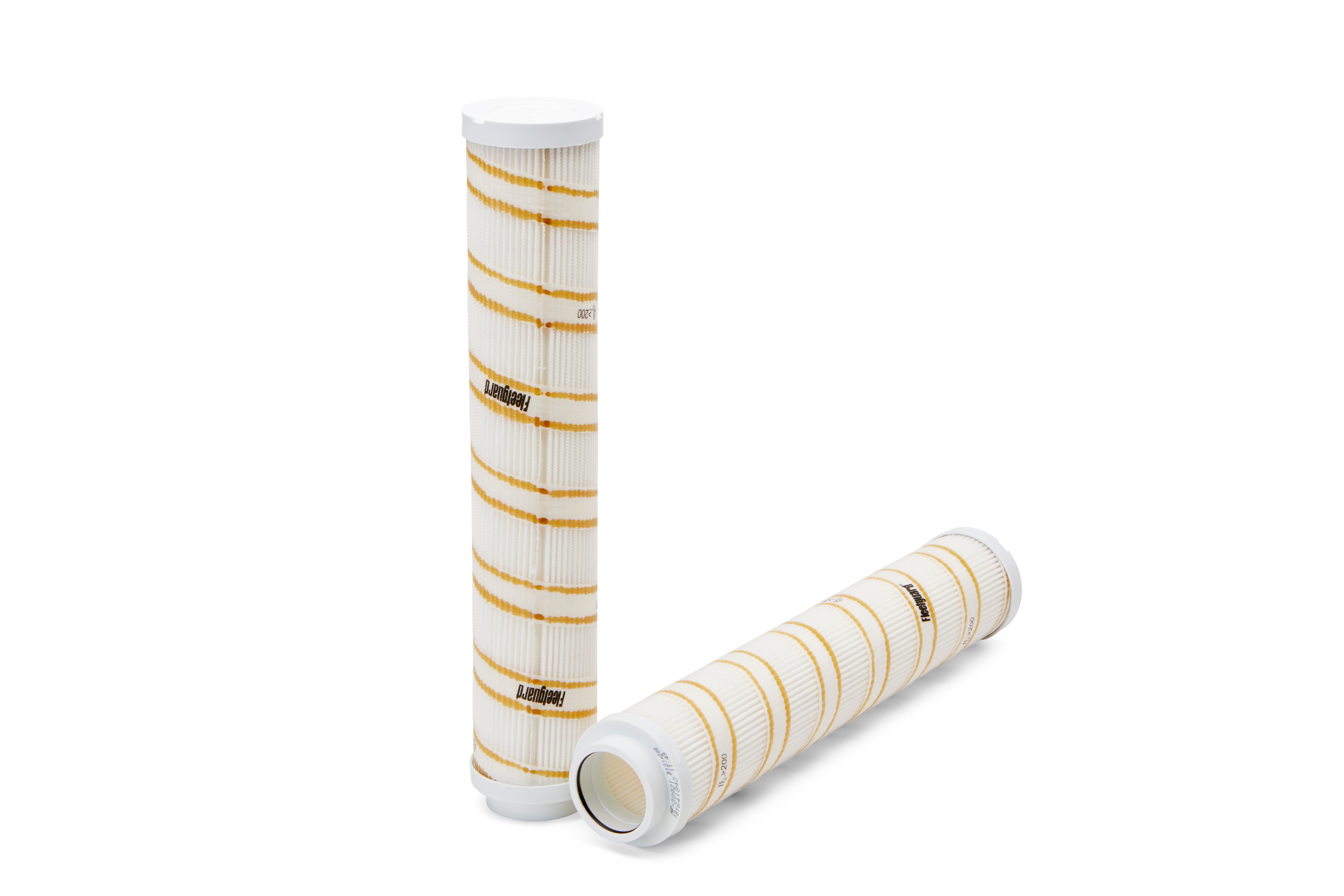

Fleetguard® HF30921 hydraulic coreless filter is designed to help keep your precision hydraulic systems running as intended and offers solutions for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Largest OD | 3.13 inch / 79.50 mm |
| End 1 ID | 1.94 inch / 49.28 mm |
| TWA MICRON @ BETA=2 | 3.00 micron |
| TWA MICRON @ BETA=200 | 12.00 micron |
| Efficiency Test Std | ISO 4572 |
| Particle Size at Beta 75 | 10.10 micron (c) |
| Element Collapse/Burst, Min | 1379.00 kPa |
| Largest End ID | 1.94 inch / 49.15 mm |
| Length | 16.50 in / 419.99 mm |
| End 2 OD | 3.13 inch / 79.50 mm |
| TWA MICRON @ BETA=20 | 7.50 micron |
| TWA MICRON @ BETA=75 | 9.50 micron |
| Particle Size at Beta 200 | 11.50 micron (c) |
| Rated Flow | 48.80 gpm / 184.70 L/min |
| Length / Overall Height | 16.54 inch / 419.99 mm |
| Applicable Region | North America, China, Europe, South America, South East Asia, South Pacific, Mexico and Central America |
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| QSK78 | 2011 | 1 | |
| SSA16V159 | 1 | ||
| 16V-149 | 1 | ||
| 16V-149 | 1 | ||
| SSA16V159 | 1 | ||
| 1 | |||
| 2 | |||
| K2000E | 1 | ||
| 1 | |||
| SSA16V159 | 1 | ||
| SDA12V160 | 1 | ||
| 1 | |||
| SDA16V160 | 1 | ||
| K2000E | 1 | ||
| QSK60 | 1 | ||
| 1 | |||
| 1 | |||
| SDA12V160 | 1 | ||
| QSK45 | 1 | ||
| 1 | |||
| 1 | |||
| 16V 4000 | 1 | ||
| SDA16V160 | 1 |
