HF35099
Hydraulic Filter, Spin-On

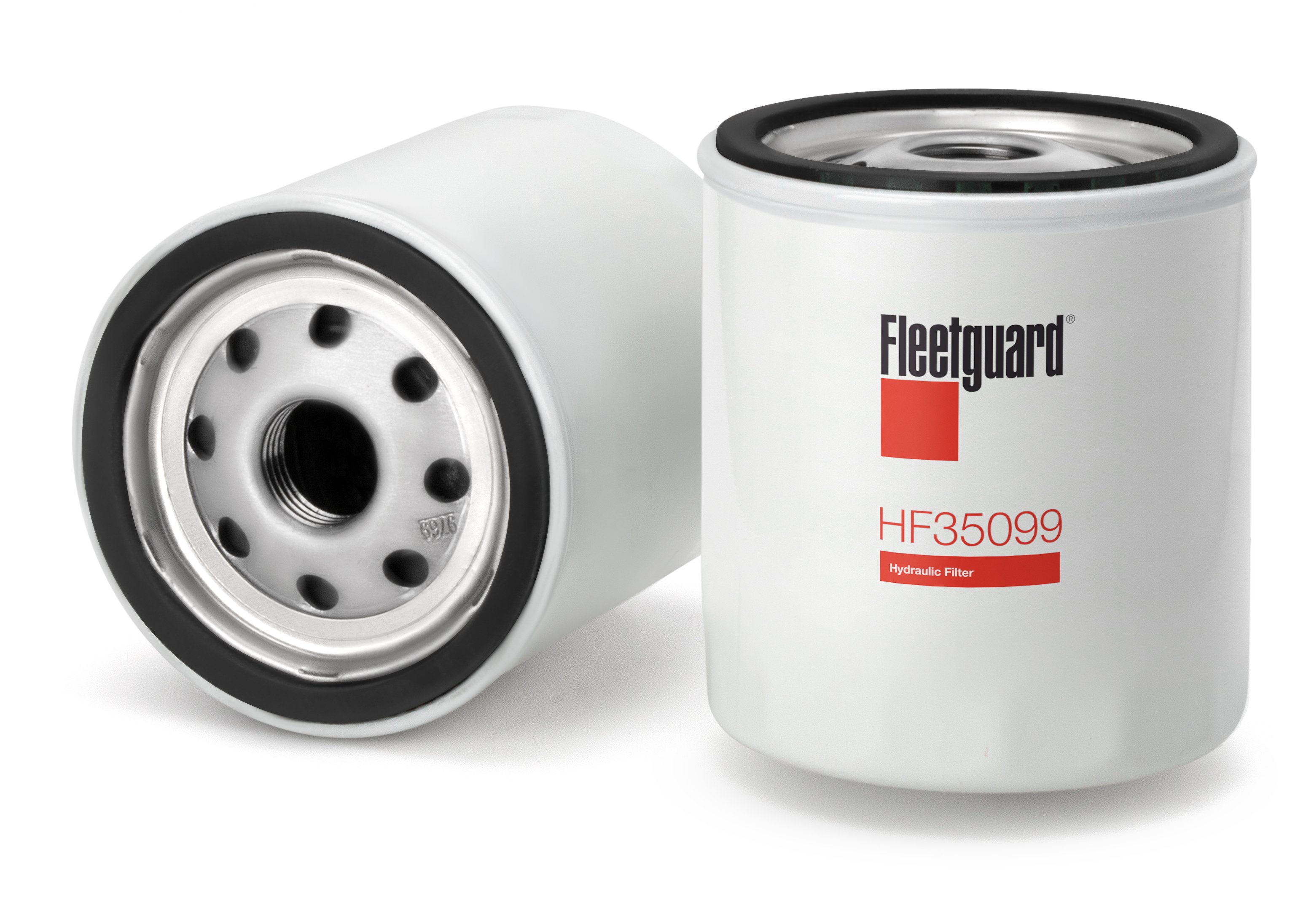

Fleetguard® HF35099 hydraulic spin-on filter with cellulose media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| BPV OPENING DP | 17.51 PSI / 120.70 kPa |
| Largest OD | 2.99 inch / 75.95 mm |
| Gasket Inside Diameter | 2.46 inch / 62.53 mm |
| Seam OD | 3.02 in / 76.81 mm |
| TWA MICRON @ BETA=75 | 40.00 micron |
| Particle Size at Beta 200 | 3.00 micron (c) |
| Particle Size at Beta 75 | 32.10 micron (c) |
| Thread Size | 3/4-16 UNF-2B |
| Length | 3.49 inch / 88.65 mm |
| Gasket OD | 2.84 inch / 72.18 mm |
| Standpipe | NO |
| Length / Overall Height | 3.41 inch / 86.60 mm |
| Pressure Valve | Yes |
| Applicable Region | North America, Europe, South America, South East Asia, South Pacific, Mexico and Central America |
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| 3126 | 1 | ||
| C9 | 1 | ||
| 8.4L | 1 | ||
| 8.4L | 1 |
