HF35120
Hydraulic Filter, Cartridge

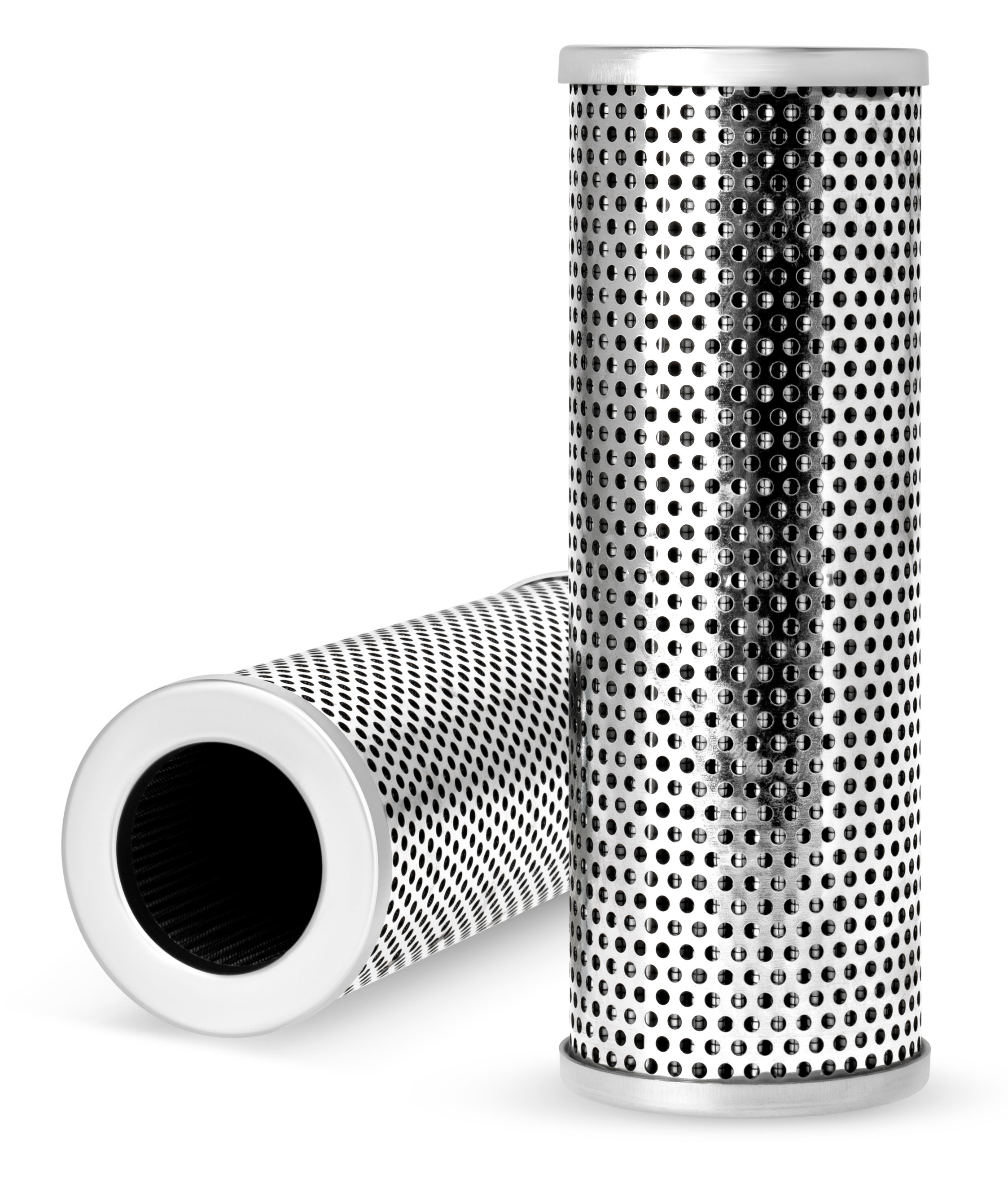

Fleetguard® HF35120 hydraulic cartridge filter with wire mesh media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Largest OD | 2.83 inch / 72.00 mm |
| Largest End ID | 1.77 inch / 45.00 mm |
| Particle Size at Beta 75 | 17.00 micron (c) |
| Gasket OD | 0.48 inch / 12.24 mm |
| Pressure Valve | No |
| Test Specification | ISO 16889 |
| Length | 7.87 inch / 200.00 mm |
| Gasket Inside Diameter | 0.28 inch / 7.00 mm |
| Efficiency Test Std | ISO 16889 |
| Rated Flow | 31.70 gpm / 120.00 L/min |
| Element Collapse/Burst, Min | 800.00 kPa |
| Length / Overall Height | 7.87 inch / 200.00 mm |
| Applicable Region | North America, Europe, South America, South East Asia |
