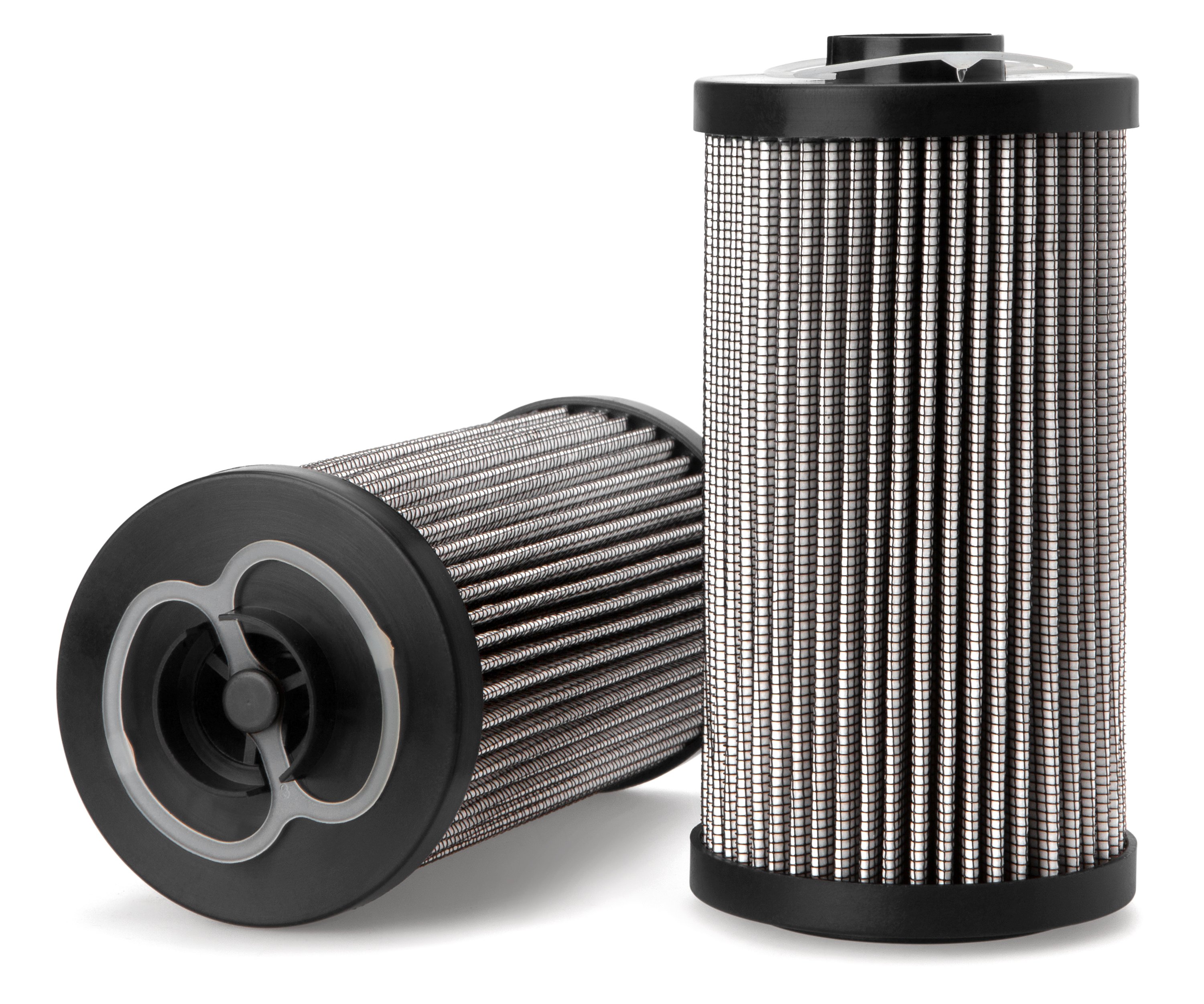

HF35203
Hydraulic Filter, Cartridge
Fleetguard® HF35203 hydraulic cartridge filter with wire mesh media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Largest End ID | 1.13 inch / 28.70 mm |
| Length | 5.33 inch / 135.50 mm |
| Particle Size at Beta 200 | 11.00 micron (c) |
| Efficiency Test Std | ISO 16889 |
| Gasket OD | 1.35 inch / 34.26 mm |
| Pressure Valve | Yes |
| Test Specification | ISO 16889 |
| Largest OD | 2.76 inch / 70.00 mm |
| Gasket Inside Diameter | 1.07 inch / 27.20 mm |
| Particle Size at Beta 75 | 10.00 micron (c) |
| Pressure Valve Opening Pressure | 175.00 kPa |
| Rated Flow | 5.28 gpm / 20.00 L/min |
| Element Collapse/Burst, Min | 1000.00 kPa |
| Length / Overall Height | 5.33 inch / 135.50 mm |
| Applicable Region | North America, Europe, South America, South East Asia, South Pacific |
Product Comments
Delivered without spring
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| 1993 | 1992 | 1 | |
| 1992 | 1 | ||
| 1993 | 1992 | 1 | |
| 1993 | 1992 | 1 |
