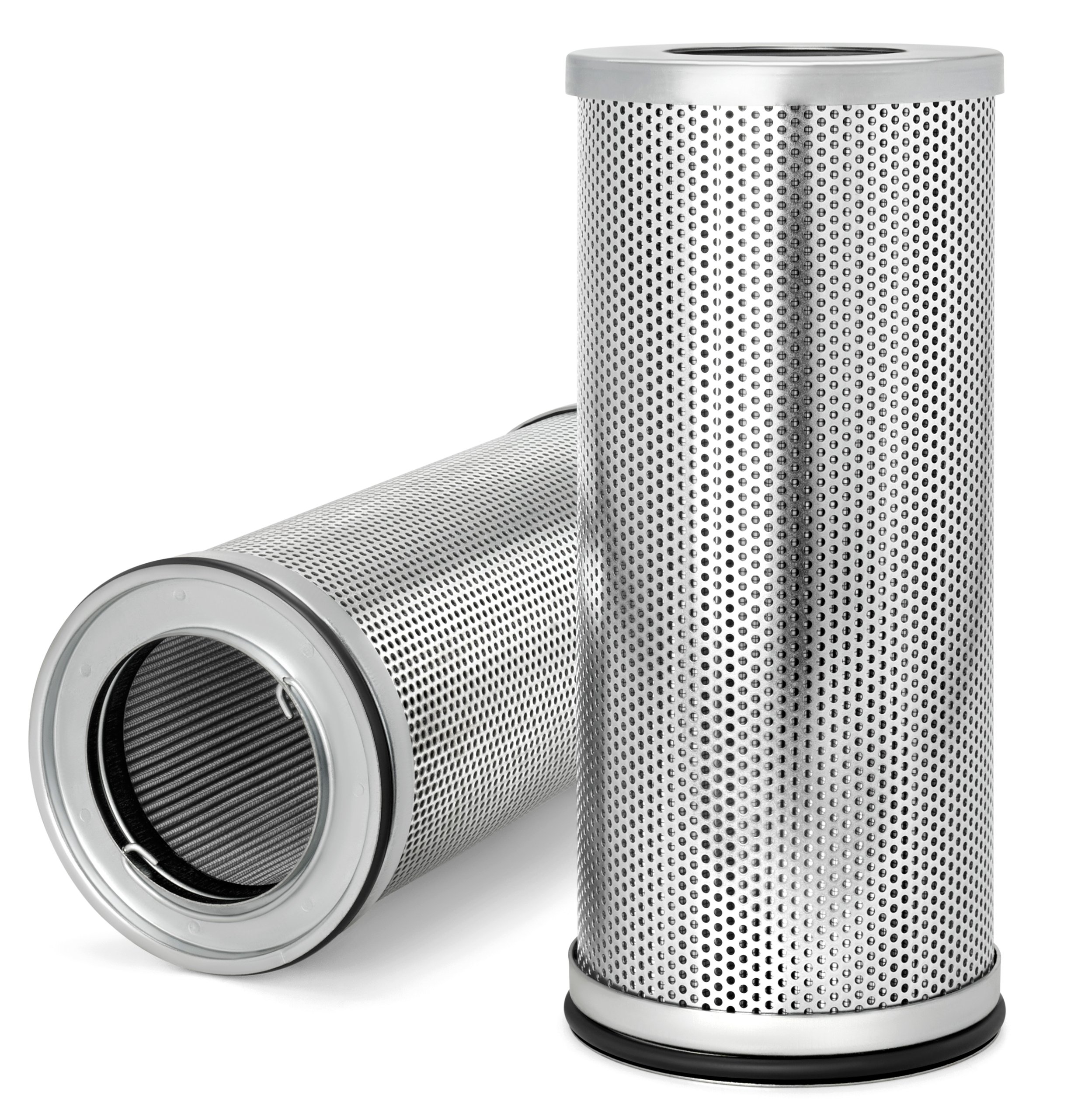

HF35330
Hydraulic Filter, Cartridge
Fleetguard® HF35330 hydraulic cartridge filter is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Largest End ID | 3.17 inch / 80.50 mm |
| Particle Size at Beta 200 | 11.00 micron (c) |
| Efficiency Test Std | ISO 16889 |
| Rated Flow | 33.29 gpm / 126.00 L/min |
| Pressure Valve | No |
| Gasket Inside Diameter | 6.14 inch / 156.00 mm |
| Length / Overall Height | 13.43 inch / 341.00 mm |
| Largest OD | 5.98 inch / 152.00 mm |
| Particle Size at Beta 75 | 10.00 micron (c) |
| Gasket OD | 6.13 inch / 155.60 mm |
| Length | 13.40 in / 341.00 mm |
| Element Collapse/Burst, Min | 1000.00 kPa |
| Test Specification | ISO 16889 |
| Applicable Region | North America, Europe, South America, South East Asia, South Pacific |
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| 2002 | 1 | ||
| 1 | |||
| D924T | 1 | ||
| 1 | |||
| D926TI-E | 1 | ||
| D926TI-EA2 | 1 | ||
| D924T | 1 | ||
| 1 | |||
| 1 | |||
| 1 | |||
| D926TI-EA2 | 1 | ||
| 1 | |||
| 1 | |||
| 1 |
