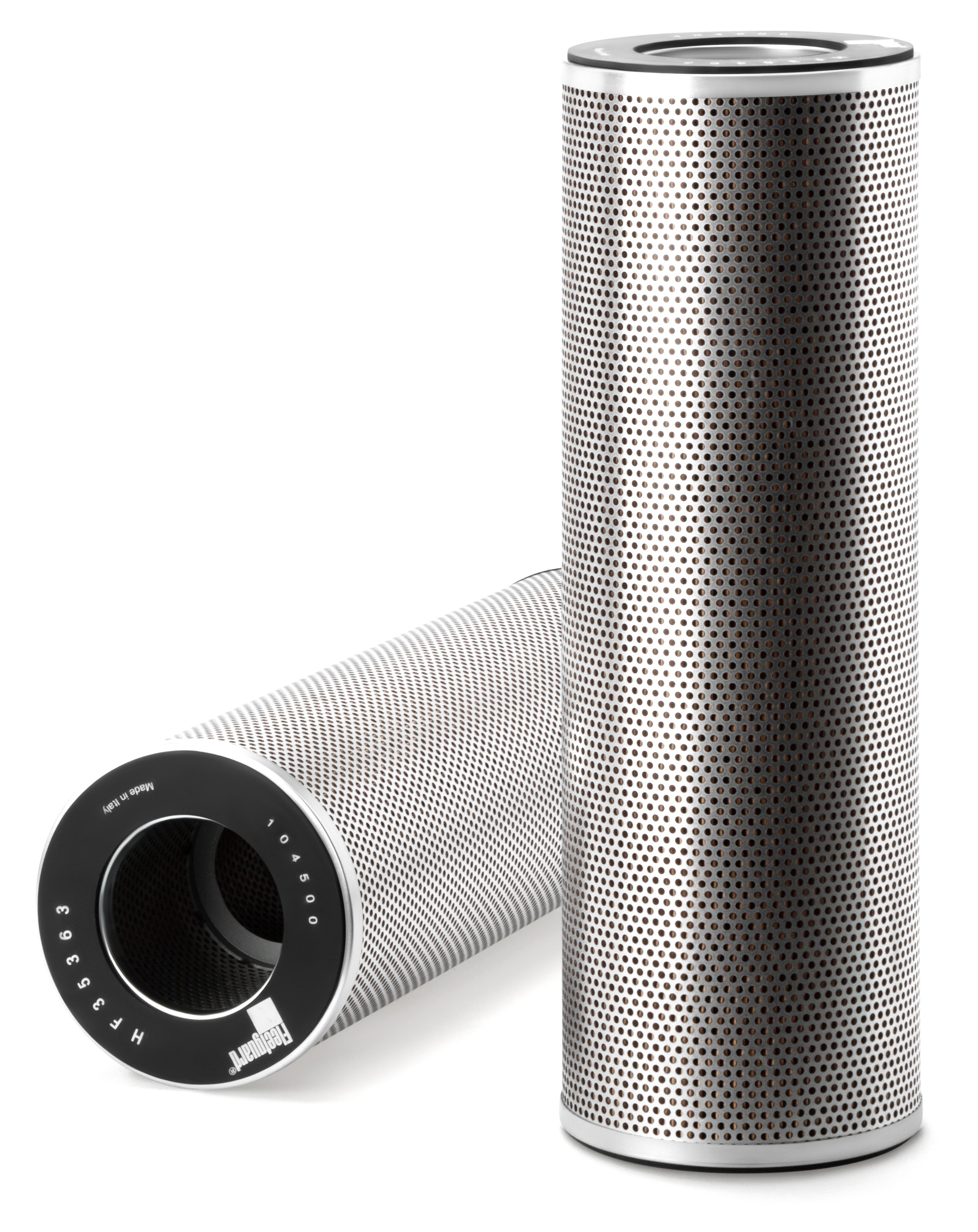

HF35363
Hydraulic Filter, Cartridge
Fleetguard® HF35363 hydraulic cartridge filter is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Largest OD | 5.91 inch / 150.00 mm |
| Length | 17.95 inch / 456.00 mm |
| Gasket OD | 5.65 inch / 143.50 mm |
| Efficiency Test Std | ISO 16889 |
| Pressure Valve | No |
| Test Specification | ISO 16889 |
| Largest End ID | 3.31 inch / 84.00 mm |
| Gasket Inside Diameter | 3.48 inch / 88.50 mm |
| Particle Size at Beta 75 | 28.00 micron (c) |
| Rated Flow | 118.89 gpm / 450.00 L/min |
| Element Collapse/Burst, Min | 600.00 kPa |
| Length / Overall Height | 17.95 inch / 456.00 mm |
| Applicable Region | North America, Europe, South America, South East Asia, South Pacific |
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| 2006 | 1 | ||
| 6BT5.9-C | 2006 | 1 | |
| 2006 | 1 | ||
| 2006 | 1 | ||
| 2006 | 1 | ||
| 2006 | 1 | ||
| 2006 | 1 | ||
| 2006 | 1 | ||
| 2006 | 1 | ||
| B5.9C | 2006 | 1 | |
| 2006 | 1 | ||
| 2006 | 1 | ||
| 6BTA5.9 | 1 | ||
| 1 | |||
| 6CT8.3 | 1 | ||
| 6BT5.9 | 1 | ||
| S4K-T | 1 | ||
| HYUNDAI | 1 | ||
| 1 | |||
| S4K-T | 1 | ||
| 6BT5.9 | 1 | ||
| 2 | |||
| 6BTA5.9 | 1 | ||
| HYUNDAI | 1 | ||
| 6BT5.9 | 1 | ||
| 6BT5.9 | 1 | ||
| HYUNDAI | 1 | ||
| 1 | |||
| 6BT5.9 | 1 | ||
| 6CT8.3 | 1 |
