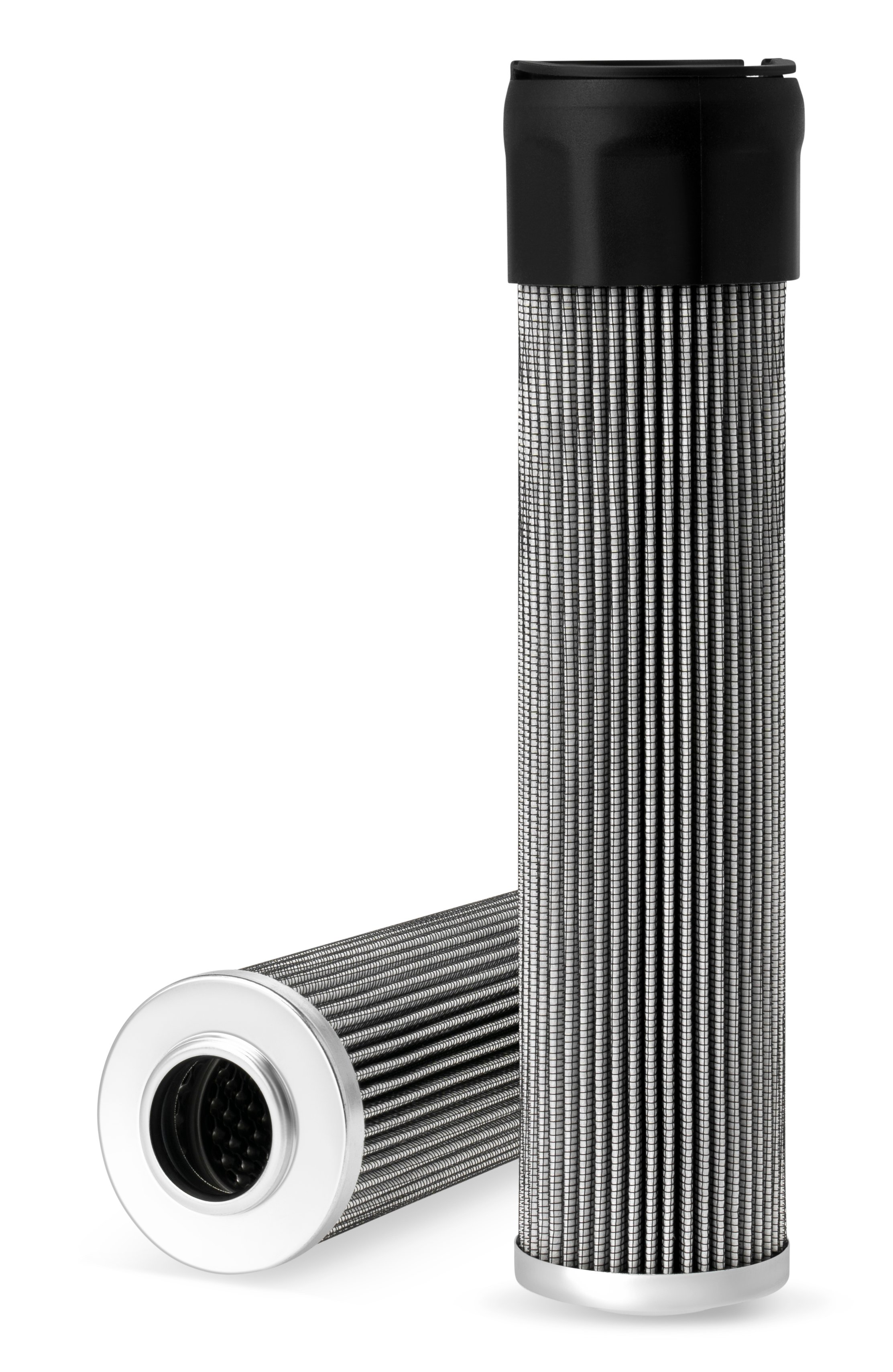

HF35436
Hydraulic Filter, Cartridge
Fleetguard® HF35436 hydraulic cartridge filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Largest OD | 2.32 inch / 59.00 mm |
| Length | 10.00 inch / 254.00 mm |
| Particle Size at Beta 75 | 10.00 micron (c) |
| Pressure Valve Opening Pressure | 250.00 kPa |
| Gasket OD | 1.33 inch / 33.80 mm |
| Pressure Valve | Yes |
| Test Specification | ISO 16889 |
| Largest End ID | 1.12 inch / 28.50 mm |
| Gasket Inside Diameter | 1.06 inch / 26.80 mm |
| Efficiency Test Std | ISO 16889 |
| Particle Size at Beta 200 | 11.00 micron (c) |
| Rated Flow | 26.42 gpm / 100.00 L/min |
| Element Collapse/Burst, Min | 1500.00 kPa |
| Length / Overall Height | 10.00 inch / 254.00 mm |
| Applicable Region | North America, Europe, South America, South East Asia, South Pacific |
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| BF4M 2012C | 2008 | 1 | |
| BF4M2012EC | 2008 | 1 | |
| 2004 | 1 | ||
| 2004 | 1 | ||
| 2004 | 1 | ||
| F4L914 | 2003 | 1 | |
| F4L914 | 2003 | 1 | |
| F4L914 | 2003 | 1 | |
| F4L914 | 2003 | 1 | |
| F3L914 | 2003 | 1 | |
| F3L914 | 2003 | 1 | |
| F3L914 | 2003 | 1 | |
| F4L914 | 2003 | 1 | |
| F3L914 | 2003 | 1 | |
| F3L914 | 2003 | 1 | |
| F4L914 | 2003 | 1 | |
| F4L914 | 2003 | 1 | |
| F4L914 | 2003 | 1 | |
| F4L914 | 2003 | 1 | |
| F3L914 | 2003 | 1 | |
| F3L914 | 2003 | 1 | |
| F3L914 | 2003 | 1 | |
| F3L914 | 2003 | 1 | |
| F3L914 | 2003 | 1 | |
| F4L914 | 2003 | 1 | |
| F4L914 | 2003 | 1 | |
| F4L914 | 2003 | 1 | |
| F3L914 | 2003 | 1 | |
| F4L914 | 2003 | 1 | |
| D0836 | 2003 | 1 | |
| F3L914 | 2003 | 1 | |
| F4L914 | 2003 | 1 | |
| F3L914 | 2003 | 1 | |
| F3L914 | 2003 | 1 | |
| F3L914 | 2003 | 1 | |
| F4L914 | 2003 | 1 | |
| F4L914 | 2003 | 1 | |
| F3L914 | 2003 | 1 | |
| F4L914 | 2002 | 1 | |
| BF6M2013 | 2002 | 1 | |
| F4L914 | 2002 | 1 | |
| F4L914 | 2002 | 1 | |
| F3L914 | 2002 | 1 | |
| F3L914 | 2002 | 1 | |
| F3L914 | 2002 | 1 | |
| F3L914 | 2002 | 1 | |
| BF6M2013 | 2002 | 1 | |
| F3L914 | 2002 | 1 | |
| BF6M2013 | 2002 | 1 | |
| BF6M2013 | 2002 | 1 | |
| BF6M2013 | 2002 | 1 | |
| F3L914 | 2002 | 1 | |
| F3L914 | 2002 | 1 | |
| F4L914 | 2002 | 1 | |
| F4L914 | 2002 | 1 | |
| F4L914 | 2002 | 1 | |
| BF6M2013 | 2002 | 1 | |
| F4L914 | 2002 | 1 | |
| F3L914 | 2002 | 1 | |
| F4L914 | 2002 | 1 | |
| BF4M2013 | 2001 | 1 | |
| BF6M2013 | 1999 | 1 | |
| BF6M2013 | 1999 | 1 | |
| BF6M2013 | 1999 | 1 | |
| BF4M2013 | 1999 | 1 | |
| BF4M2013 | 1999 | 1 | |
| BF4M2013 | 1999 | 1 | |
| BF6M2013 | 1999 | 1 | |
| D0836LE | 1998 | 1 | |
| D0836LE | 1998 | 1 | |
| D0826LE | 1998 | 1 | |
| D0826LE | 1998 | 1 | |
| BF4L913H | 1998 | 1 | |
| D0826LE | 1998 | 1 | |
| F3L913H | 1998 | 1 | |
| D0826LE | 1998 | 1 | |
| BF6M2013C | 1998 | 1 | |
| BF6M2013C | 1998 | 1 | |
| F3L913H | 1998 | 1 | |
| D0836LE | 1998 | 1 | |
| BF6M2013C | 1998 | 1 | |
| D0836LE | 1998 | 1 | |
| TD226B-6 | 1996 | 1 | |
| D0826LE | 1993 | 1 | |
| TD226B-4 | 1993 | 1 | |
| D0826LE | 1993 | 1 | |
| TD226B-6 | 1993 | 1 | |
| D0826LE | 1993 | 1 | |
| 1993 | 1 | ||
| TD226B-6 | 1993 | 1 | |
| TD226B-6 | 1993 | 1 | |
| TD226B-6 | 1993 | 1 | |
| D0826LE | 1993 | 1 | |
| TD226B-6 | 1993 | 1 | |
| TD226B-4 | 1993 | 1 |
