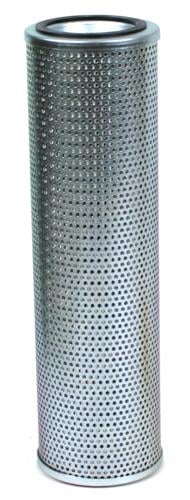

HF6248
Hydraulic Filter, Cartridge
Fleetguard® HF6248 hydraulic cartridge filter is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Largest OD | 3.92 inch / 99.50 mm |
| Length | 13.66 inch / 347.00 mm |
| Gasket OD | 3.23 inch / 82.00 mm |
| Efficiency Test Std | ISO 16889 |
| Pressure Valve | No |
| Test Specification | ISO 16889 |
| Largest End ID | 1.89 inch / 48.00 mm |
| Gasket Inside Diameter | 2.56 inch / 65.00 mm |
| Particle Size at Beta 75 | 17.00 micron (c) |
| Rated Flow | 12.68 gpm / 48.00 L/min |
| Element Collapse/Burst, Min | 800.00 kPa |
| Applicable Region | North America, Europe, South East Asia, South Pacific |
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| BF 4L 913 | 1989 | 1 | |
| DEUTZ | 1 | ||
| F 4L 912 | 1 | ||
| D904 NA | 1 | ||
| F 4L 912 | 1 | ||
| F 4L 912 | 1 | ||
| F3L912 | 1 | ||
| DEUTZ | 1 | ||
| F3L912 | 1 | ||
| F 4L 912 | 1 | ||
| DEUTZ | 1 | ||
| F 4L 912 | 1 | ||
| F3L912 | 1 | ||
| F3L912 | 1 | ||
| F4/5L912 | 1 | ||
| F 4L 912 | 1 | ||
| F4/5L912 | 1 | ||
| F 4L 912 | 1 | ||
| F 4L 912 | 1 | ||
| DEUTZ | 1 | ||
| F3L912 | 1 | ||
| DEUTZ | 1 | ||
| F 4L 912 | 1 | ||
| F3L912 | 1 | ||
| F3L912 | 1 | ||
| F3L912 | 1 | ||
| F 4L 912 | 1 | ||
| F 4L 912 | 1 | ||
| F3L912 | 1 | ||
| F 4L 912 | 1 | ||
| DEUTZ | 1 | ||
| F 4L 912 | 1 | ||
| F3L912 | 1 | ||
| D904NA | 1 |
