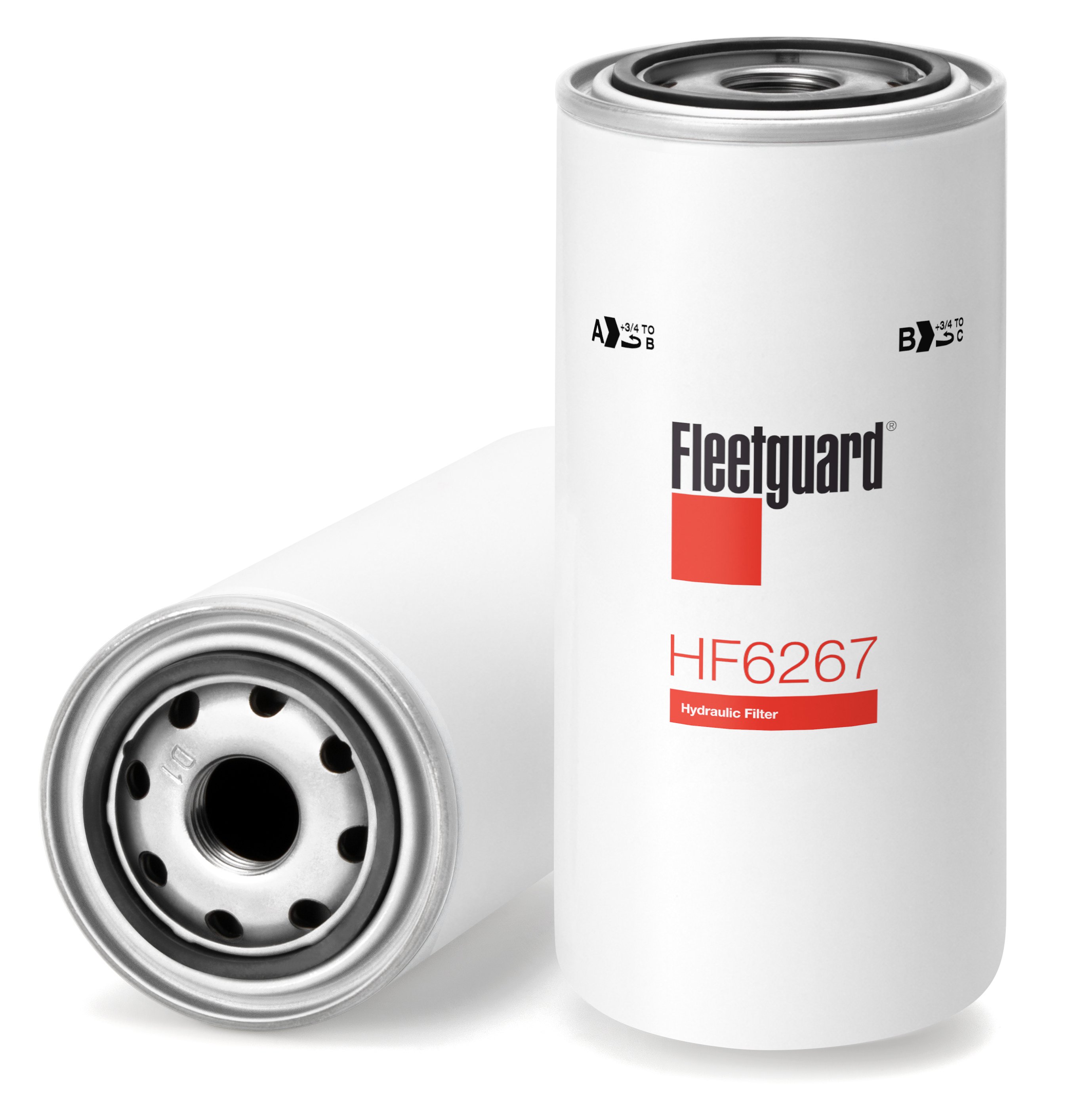

HF6267
Hydraulic Filter, Spin-On
Fleetguard® HF6267 hydraulic spin-on filter with cellulose media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Thread Size | 1-12 UNF-2B |
| Largest OD | 3.68 inch / 93.50 mm |
| Gasket Inside Diameter | 2.44 inch / 62.00 mm |
| Seam OD | 3.68 in / 93.50 mm |
| TWA MICRON @ BETA=2 | 20.00 micron |
| TWA MICRON @ BETA=75 | 35.00 micron |
| BPV OPENING DP | 36.26 PSI / 250.00 kPa |
| Length | 8.27 inch / 210.10 mm |
| Gasket OD | 2.76 in / 70.00 mm |
| Standpipe | NO |
| TWA MICRON @ BETA=20 | 30.00 micron |
| Applicable Region | North America, Europe, South America, South East Asia, South Pacific |
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| X15 | 2018 | 1 | |
| F 4L 912 | 1986 | 1 | |
| BF6L913 | 1986 | 1 | |
| F4L913 | 1986 | 1 | |
| F4L913 | 1986 | 1 | |
| BF6L913 | 1986 | 1 | |
| F 4L 912 | 1986 | 1 | |
| BF6L913 | 1986 | 1 | |
| F4L913 | 1986 | 1 | |
| F4L913 | 1986 | 1 | |
| F 4L 912 | 1986 | 1 | |
| F4L913T | 1986 | 1 | |
| F 4L 912 | 1986 | 1 | |
| F4L913 | 1986 | 1 | |
| F4L913 | 1986 | 1 | |
| F4L913 | 1986 | 1 | |
| F4L913T | 1986 | 1 | |
| F 4L 912 | 1986 | 1 | |
| F 6L 912 | 1986 | 1 | |
| F4L913T | 1986 | 1 | |
| F4L913T | 1986 | 1 | |
| F 4L 912 | 1986 | 1 | |
| BF6L513 | 1986 | 1 | |
| F4L913T | 1986 | 1 | |
| F4L913 | 1986 | 1 | |
| F4L913T | 1986 | 1 | |
| F 4L 912 | 1986 | 1 | |
| F 6L 912 | 1986 | 1 | |
| F4L913T | 1986 | 1 | |
| F 6L 912 | 1986 | 1 | |
| F4L913T | 1986 | 1 | |
| F 4L 912 | 1986 | 1 | |
| F 6L 912 | 1986 | 1 | |
| F 4L 912 | 1986 | 1 | |
| F 4L 912 | 1986 | 1 | |
| F 4L 912 | 1986 | 1 | |
| F 4L 912 | 1982 | 1 | |
| F4L913 | 1982 | 1 | |
| F 4L 912 | 1982 | 1 | |
| BF4L913T | 1982 | 1 | |
| F 4L 912 | 1982 | 1 | |
| F 4L 912 | 1982 | 1 | |
| F 6L 912 | 1982 | 1 | |
| BF4L913T | 1982 | 1 | |
| BF4L913T | 1982 | 1 | |
| BF4L913T | 1982 | 1 | |
| F 6L 912 | 1982 | 1 | |
| F 4L 912 | 1982 | 1 | |
| BF6L413 | 1982 | 1 | |
| F 4L 912 | 1982 | 1 | |
| F 4L 912 | 1982 | 1 | |
| F 4L 912 | 1982 | 1 | |
| F 4L 912 | 1982 | 1 | |
| F4L913 | 1982 | 1 | |
| F4L913 | 1982 | 1 | |
| BF6L913 | 1980 | 1 | |
| F 6L 912 | 1980 | 1 | |
| F 6L 912 | 1980 | 1 | |
| F 6L 912 | 1980 | 1 | |
| F 6L 912 | 1980 | 1 | |
| F 6L 912 | 1980 | 1 | |
| F 6L 912 | 1980 | 1 | |
| F 6L 912 | 1980 | 1 | |
| BF6L913 | 1980 | 1 | |
| F 6L 912 | 1980 | 1 | |
| F 6L 912 | 1980 | 1 | |
| F 6L 912 | 1980 | 1 | |
| F 6L 912 | 1980 | 1 | |
| BF6L913 | 1978 | 1 | |
| F5/6L912 | 1978 | 1 | |
| F5/6L912 | 1978 | 1 | |
| BF6L913 | 1978 | 1 | |
| BF6L913 | 1978 | 1 | |
| F4L913 | 1978 | 1 | |
| F4L913 | 1978 | 1 | |
| F5/6L912 | 1978 | 1 | |
| BF6L913 | 1978 | 1 | |
| F5/6L912 | 1978 | 1 | |
| BF6L913 | 1978 | 1 | |
| 1 | |||
| F6L913 | 1 | ||
| WD611.40 | 1 | ||
| WD611.40 | 1 | ||
| BFF6L913 | 1 | ||
| 1 | |||
| BFF6L913 | 1 | ||
| F 6L 912 | 1 | ||
| BF6L913 | 1 | ||
| 1 | |||
| F6L913 | 1 | ||
| F8L413F | 1 | ||
| F5L913 | 1 | ||
| 1 | |||
| BF6L913 | 1 | ||
| 1 | |||
| 1 | |||
| BF6L913 | 1 | ||
| F 6L 912 | 1 | ||
| F6L913 | 1 | ||
| F6L913 | 1 | ||
| F6L913 | 1 | ||
| BF6L913 | 1 | ||
| 1 | |||
| 1 | |||
| BF6L913 | 1 | ||
| BF6L913 | 1 | ||
| BF6L913 | 1 | ||
| 1 | |||
| F 6L 912 | 1 | ||
| BF 4L 913 | 1 | ||
| F8L413 | 1 | ||
| F6L913 | 1 | ||
| F8L413F | 1 | ||
| F6L913 | 1 | ||
| F6L913 | 1 | ||
| F8L413 | 1 | ||
| BF6L913 | 1 | ||
| F6L913 | 1 | ||
| BF6L913 | 1 |
