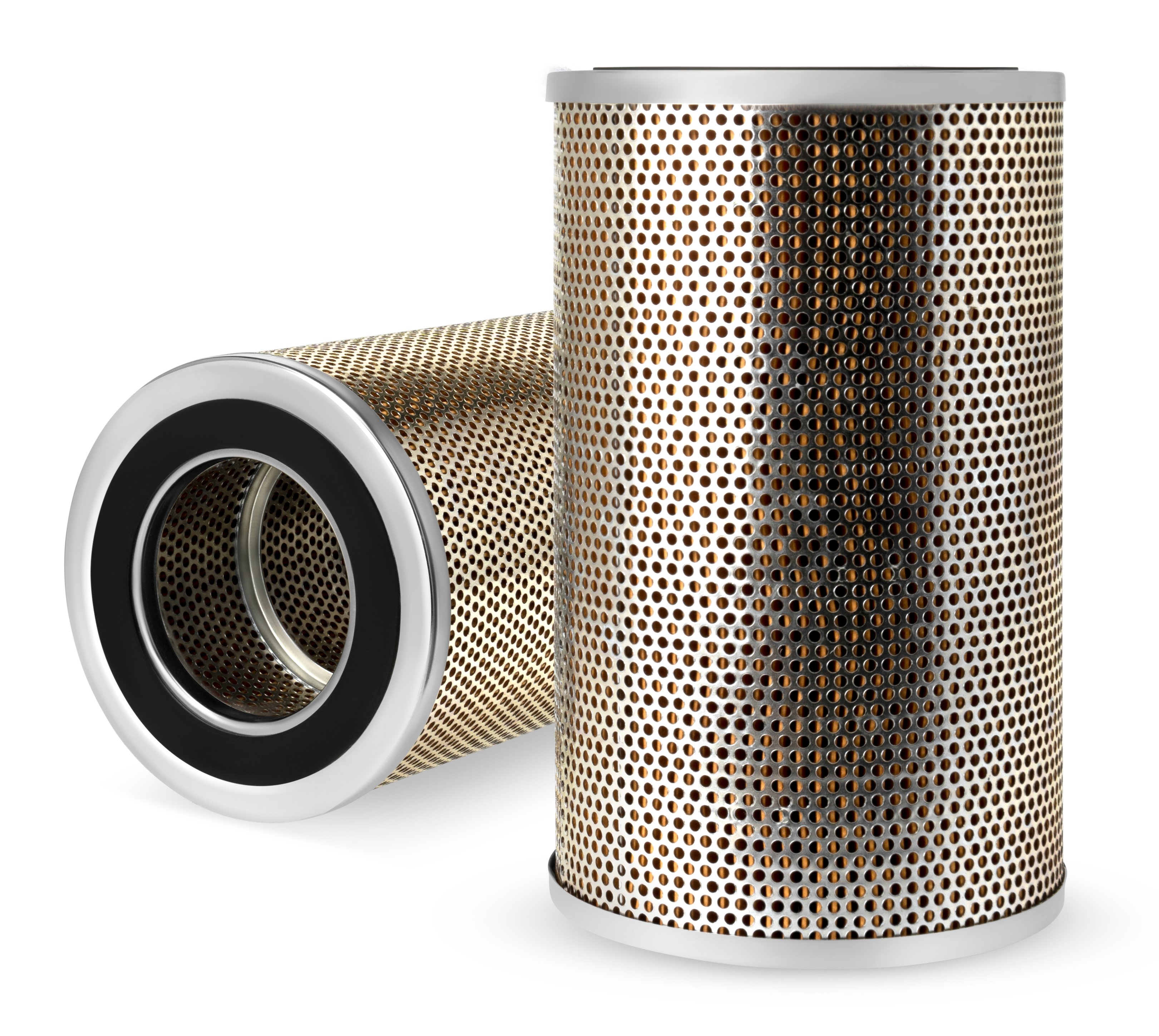

HF6330
Hydraulic Filter, Cartridge
Fleetguard® HF6330 hydraulic cartridge filter is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Largest End ID | 3.27 inch / 83.00 mm |
| Largest OD | 5.87 inch / 149.00 mm |
| Gasket OD | 4.80 inch / 122.00 mm |
| Efficiency Test Std | ISO 16889 |
| Pressure Valve | No |
| Test Specification | ISO 16889 |
| Length | 9.45 inch / 240.00 mm |
| Gasket Inside Diameter | 3.60 inch / 91.50 mm |
| Particle Size at Beta 75 | 57.00 micron (c) |
| Rated Flow | 138.00 L/m |
| Element Collapse/Burst, Min | 400.00 kPa |
| Applicable Region | North America, Europe, South East Asia, South Pacific |
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| 1 | |||
| 1 | |||
| 1 | |||
| 8215.22 TURBO | 1 | ||
| 1 | |||
| 8365.05 | 1 | ||
| 8365.05 | 1 | ||
| 1 | |||
| 1 | |||
| 8215.22 TURBO | 1 | ||
| 1 |
