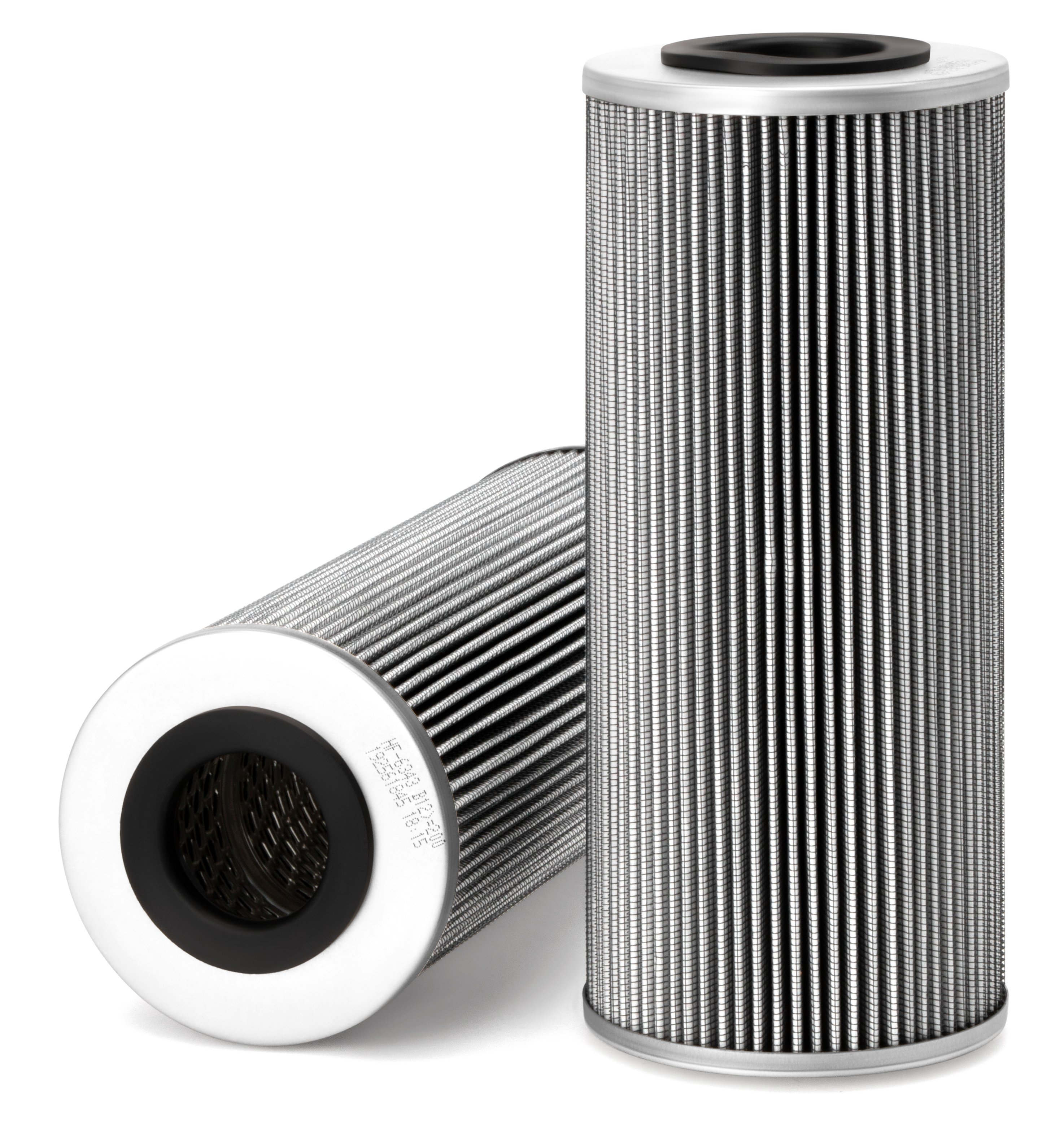

HF6343
Hydraulic Filter, Cartridge
Fleetguard® HF6343 premium hydraulic cartridge filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Largest OD | 3.93 inch / 99.70 mm |
| Efficiency Test Std | ISO 4572 |
| Particle Size at Beta 75 | 10.00 micron (c) |
| Rated Flow | 100.13 gpm / 379.00 L/min |
| Element Collapse/Burst, Min | 700.00 kPa |
| Largest End ID | 1.61 inch / 40.89 mm |
| Length / Overall Height | 9.22 inch / 234.08 mm |
| Length | 9.23 inch / 234.44 mm |
| Particle Size at Beta 200 | 15.00 micron (c) |
| Gasket OD | 2.48 inch / 62.99 mm |
| Pressure Valve | No |
| Test Specification | ISO 4572 |
| Gasket Inside Diameter | 1.61 inch / 40.89 mm |
| Applicable Region | North America, Europe, South America, South East Asia, South Pacific, Mexico and Central America |
Related Parts
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| 2011 | 1 | ||
| 2011 | 1 | ||
| 2011 | 1 | ||
| 2011 | 1 | ||
| 2011 | 1 | ||
| CAT | 2011 | 1 | |
| 2011 | 1 | ||
| 2011 | 1 | ||
| C4.4 | 2010 | 1 | |
| 1 | |||
| CAT | 1 | ||
| 3406C | 1 | ||
| 1 | |||
| 3208DSL | 1 | ||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 3116T | 1 | ||
| 4.236 DIESEL | 1 | ||
| 3208 | 1 | ||
| CAT | 1 | ||
| 3208 | 1 | ||
| C4.4 | 1 | ||
| 1 | |||
| 1 | |||
| 3406C | 1 | ||
| 1 | |||
| 1 | |||
| 1 | |||
| CAT | 1 | ||
| CAT | 1 | ||
| 3208 | 1 | ||
| 1 | |||
| 1 | |||
| 3208 | 1 | ||
| 1 | |||
| C7.1 | 1 | ||
| 1 | |||
| 1 | |||
| 4.236 GAS | 1 | ||
| 1 | |||
| C6.6 | 1 | ||
| CAT | 1 | ||
| C7.1 | 1 | ||
| 1 | |||
| 3208 | 1 | ||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| C7.1 | 1 | ||
| 4.236 DIESEL | 1 | ||
| 1 | |||
| CAT | 1 | ||
| CAT | 1 | ||
| 1 | |||
| CAT | 1 | ||
| 1 | |||
| 4.236 GAS | 1 | ||
| CAT | 1 | ||
| 1 | |||
| CUMMINS | 1 | ||
| NT855 | 1 | ||
| C7.1 | 2012 | 1 | |
| C7.1 | 2012 | 1 | |
| CAT | 2011 | 1 | |
| CAT | 2011 | 1 | |
| 2011 | 1 | ||
| 2011 | 1 | ||
| CAT | 2011 | 1 | |
| CAT | 2011 | 1 | |
| CAT | 2011 | 1 | |
| CAT | 2011 | 1 | |
| CAT | 2011 | 1 | |
| 2011 | 1 | ||
| 2011 | 1 | ||
| 2011 | 1 | ||
| 2011 | 1 | ||
| 2011 | 1 | ||
| 2011 | 1 | ||
| 2011 | 1 | ||
| CAT | 2011 | 1 | |
| CAT | 2011 | 1 | |
| 2011 | 1 | ||
| 2011 | 1 | ||
| CAT | 2011 | 1 | |
| CAT | 2011 | 1 | |
| 2011 | 1 | ||
| 2011 | 1 | ||
| C4.4 | 2010 | 1 | |
| 1 | |||
| 4.236 | 1 | ||
| 1 | |||
| 1 | |||
| 6CT8.3 | 1 | ||
| 3208DSL | 1 | ||
| 6BTA5.9 | 1 | ||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| C7.1 | 1 | ||
| 1 | |||
| 1 | |||
| 4.236 | 1 | ||
| 4.236 | 1 | ||
| 3406C | 1 | ||
| 1 | |||
| 6V-71 | 1 | ||
| 1 | |||
| 3406 | 1 | ||
| 4.236 | 1 | ||
| C6.6 | 1 | ||
| 3208DSL | 1 | ||
| 4.236 | 1 | ||
| 1 | |||
| 3116 | 1 | ||
| 3306NA | 1 | ||
| 3406 | 1 | ||
| 3208DSL | 1 | ||
| 4.236 DIESEL | 1 | ||
| 1 | |||
| 3406 | 1 | ||
| 6CT8.3 | 1 | ||
| 4.236 DIESEL | 1 | ||
| 6V-71 | 1 | ||
| 4.236 DIESEL | 1 | ||
| 3208 | 1 | ||
| RD549 | 1 | ||
| 3408 | 2 | ||
| 1 | |||
| C11 | 1 | ||
| 3208 | 1 | ||
| CAT | 1 | ||
| 1 | |||
| 4.236 DIESEL | 1 | ||
| 4.236 | 1 | ||
| 4.236 DIESEL | 1 | ||
| 6CT8.3 | 1 | ||
| C6.6 | 1 | ||
| 6BTA5.9 | 1 | ||
| 3056 | 1 | ||
| 4.236 DIESEL | 1 | ||
| 3116 | 1 | ||
| 1 | |||
| 4.236 DIESEL | 1 | ||
| 4.236 | 1 | ||
| 1 | |||
| C7 | 1 | ||
| 3412 | 2 | ||
| 3208DSL | 1 | ||
| CAT | 1 | ||
| 3208 | 1 | ||
| CAT | 1 | ||
| 1 | |||
| 1 | |||
| CAT | 1 | ||
| 1 | |||
| 1 | |||
| 1 | |||
| 6BTA5.9 | 1 | ||
| C15 | 1 | ||
| 4.236 DIESEL | 1 | ||
| 3054C | 1 | ||
| CAT | 1 | ||
| KT19 | 1 |
