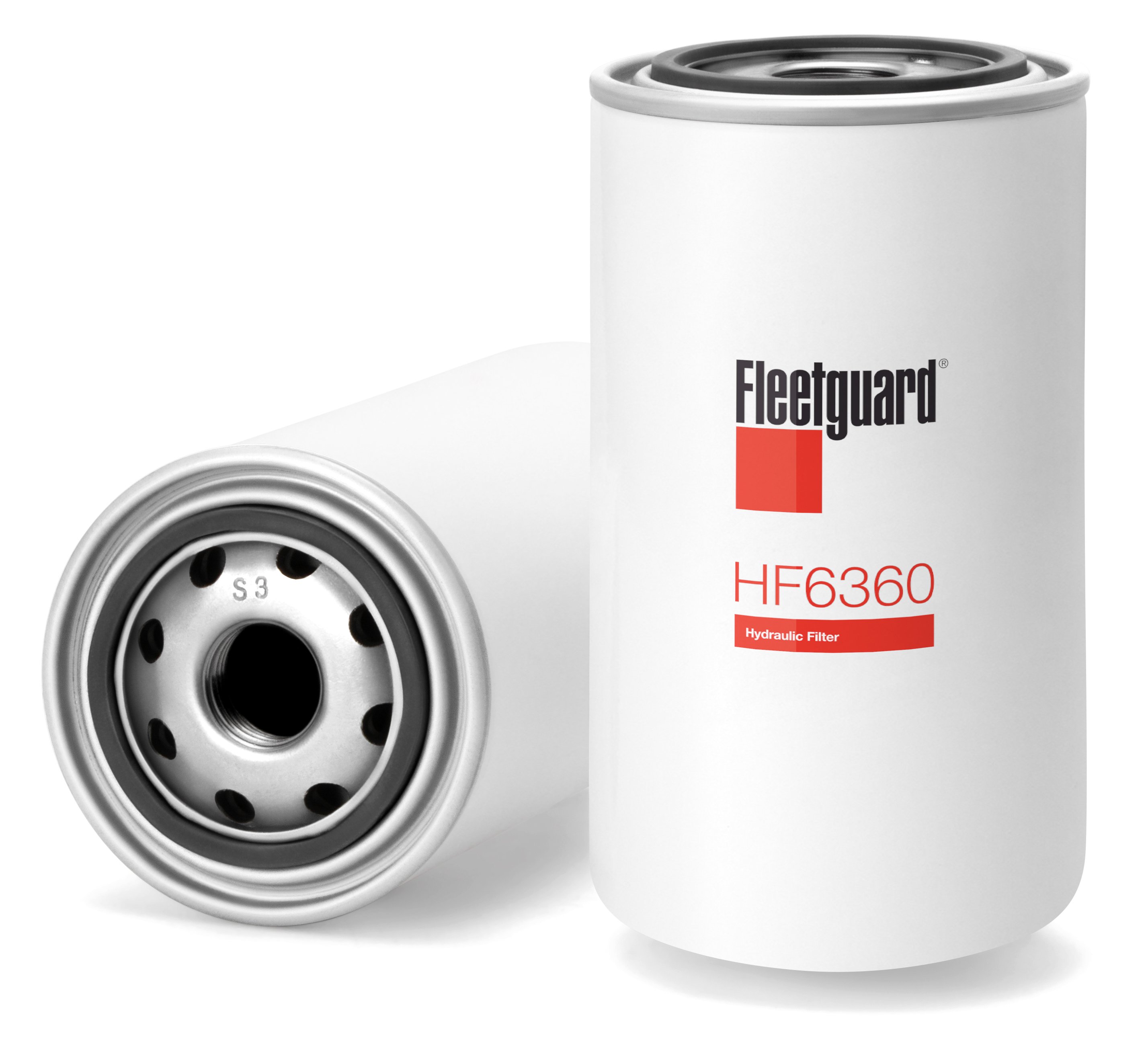

HF6360
Hydraulic Filter, Spin-On
Fleetguard® HF6360 hydraulic spin-on filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Thread Size | 1-12 UNF-2B |
| Length | 6.87 inch / 174.50 mm |
| Gasket OD | 2.76 inch / 70.00 mm |
| Standpipe | NO |
| TWA MICRON @ BETA=20 | 40.00 micron |
| Largest OD | 3.68 inch / 93.50 mm |
| Gasket Inside Diameter | 2.44 inch / 62.00 mm |
| Seam OD | 3.68 in / 93.50 mm |
| TWA MICRON @ BETA=2 | 28.00 micron |
| TWA MICRON @ BETA=75 | 50.00 micron |
| Applicable Region | North America, Europe, South East Asia, South Pacific |
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| 1 | |||
| 1 | |||
| 1 | |||
| 6359 DL 009 (6 CYL) | 1 | ||
| 1 | |||
| 3179D | 1 | ||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 6359 DL 008 (6 CYL) | 1 | ||
| 1 | |||
| HB225 | 1 | ||
| 6359 DL 008 (6 CYL) | 1 | ||
| 6359 DL 009 (6 CYL) | 1 | ||
| CD4239T | 1 | ||
| CD4239T | 1 | ||
| 1 | |||
| 4239D | 1 |
