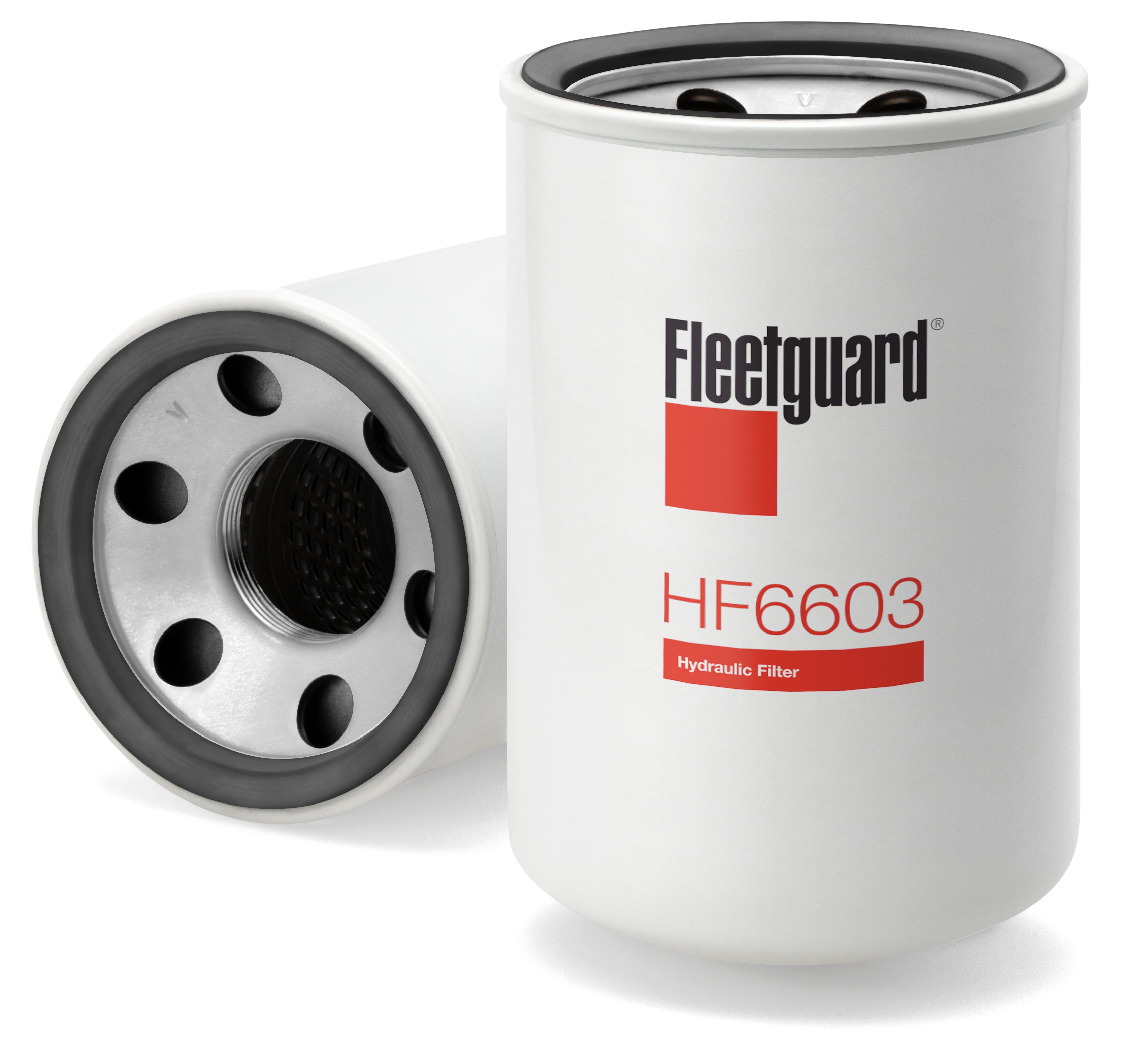

HF6603
Hydraulic Filter, Spin-On
Fleetguard® HF6603 hydraulic spin-on filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Thread Size | 1.00 1/2-16 UN-2B |
| Length | 5.82 inch / 147.83 mm |
| Gasket OD | 3.45 inch / 87.63 mm |
| Standpipe | NO |
| TWA MICRON @ BETA=200 | 5.00 micron |
| Largest OD | 3.68 inch / 93.47 mm |
| Gasket Inside Diameter | 2.97 inch / 75.44 mm |
| Seam OD | 3.72 in / 94.49 mm |
| TWA MICRON @ BETA=20 | 1.00 micron |
| TWA MICRON @ BETA=75 | 3.00 micron |
| Applicable Region | North America, Europe, South America, South East Asia, South Pacific, Mexico and Central America |
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| DT466 | 2000 | 1 | |
| DT466 | 1999 | 1 | |
| C13 | 2009 | 1 | |
| C13 | 2008 | 1 | |
| ISM11 | 2005 | 1 | |
| ISM11 | 2005 | 1 | |
| C7 | 2009 | 1 | |
| C7 | 2009 | 1 | |
| C7 | 2008 | 1 | |
| C7 | 2008 | 1 | |
| C7 | 2007 | 1 | |
| C7 | 2007 | 1 | |
| C7 | 2006 | 1 | |
| C7 | 2006 | 1 | |
| C7 | 2005 | 1 | |
| C7 | 2005 | 1 | |
| C7 | 2004 | 1 | |
| C7 | 2004 | 1 | |
| C7 | 2003 | 1 | |
| C7 | 2003 | 1 | |
| 2011 | 1 | ||
| 2011 | 1 | ||
| 2011 | 1 | ||
| 2011 | 1 | ||
| 2011 | 1 | ||
| 2011 | 1 | ||
| 2011 | 1 | ||
| 3126E | 1 | ||
| L4-1.5L-1495 CC-G4EK | 1996 | 1 | |
| L4-1.5L-1495 CC-G4EK | 1995 | 1 | |
| L4-1.5L-1495 CC-G4EK | 1995 | 1 | |
| L4-1.5L-1495 CC-G4EK | 1994 | 1 | |
| B6.7 | 2017 | 1 | |
| ISC8.3 | 2017 | 1 | |
| ISC8.3 | 2016 | 1 | |
| ISB 6.7 | 2016 | 1 | |
| ISB 6.7 | 2015 | 1 | |
| ISC8.3 | 2015 | 1 | |
| ISB 6.7 | 2014 | 1 | |
| ISC8.3 | 2014 | 1 | |
| ISB 6.7 | 2013 | 1 | |
| ISC8.3 | 2013 | 1 | |
| ISC8.3 | 2012 | 1 | |
| 6081 (CNG) | 2012 | 1 | |
| ISB 6.7 | 2012 | 1 | |
| MBE900 | 2011 | 1 | |
| 2011 | 1 | ||
| 2011 | 1 | ||
| ISC8.3 | 2011 | 1 | |
| ISB 6.7 | 2011 | 1 | |
| 6081 (CNG) | 2011 | 1 | |
| 2011 | 1 | ||
| ISB 6.7 | 2010 | 1 | |
| 6081 (CNG) | 2010 | 1 | |
| MBE900 | 2010 | 1 | |
| ISC8.3 | 2010 | 1 | |
| ISB 6.7 | 2009 | 1 | |
| MBE900 | 2009 | 1 | |
| 6081 (CNG) | 2009 | 1 | |
| ISC8.3 | 2009 | 1 | |
| MBE904 | 2009 | 1 | |
| ISC8.3 | 2008 | 1 | |
| 6081 (CNG) | 2008 | 1 | |
| MBE900 | 2008 | 1 | |
| ISB 6.7 | 2008 | 1 | |
| ISC8.3 | 2008 | 1 | |
| 3126B | 2008 | 1 | |
| 3126B | 2008 | 1 | |
| C7 | 2006 | 1 | |
| C7 | 2006 | 1 | |
| ISC8.3 | 2006 | 1 | |
| C7 | 2005 | 1 | |
| L10 | 1994 | 1 | |
| 6BT5.9 | 1987 | 1 | |
| 1 | |||
| ISUZU | 1 | ||
| 1 | |||
| 1 | |||
| 1 | |||
| 3126E | 1 | ||
| 1 | |||
| 3126E | 1 | ||
| F4L1011 | 1 | ||
| F4L1011 | 1 | ||
| 1 |
