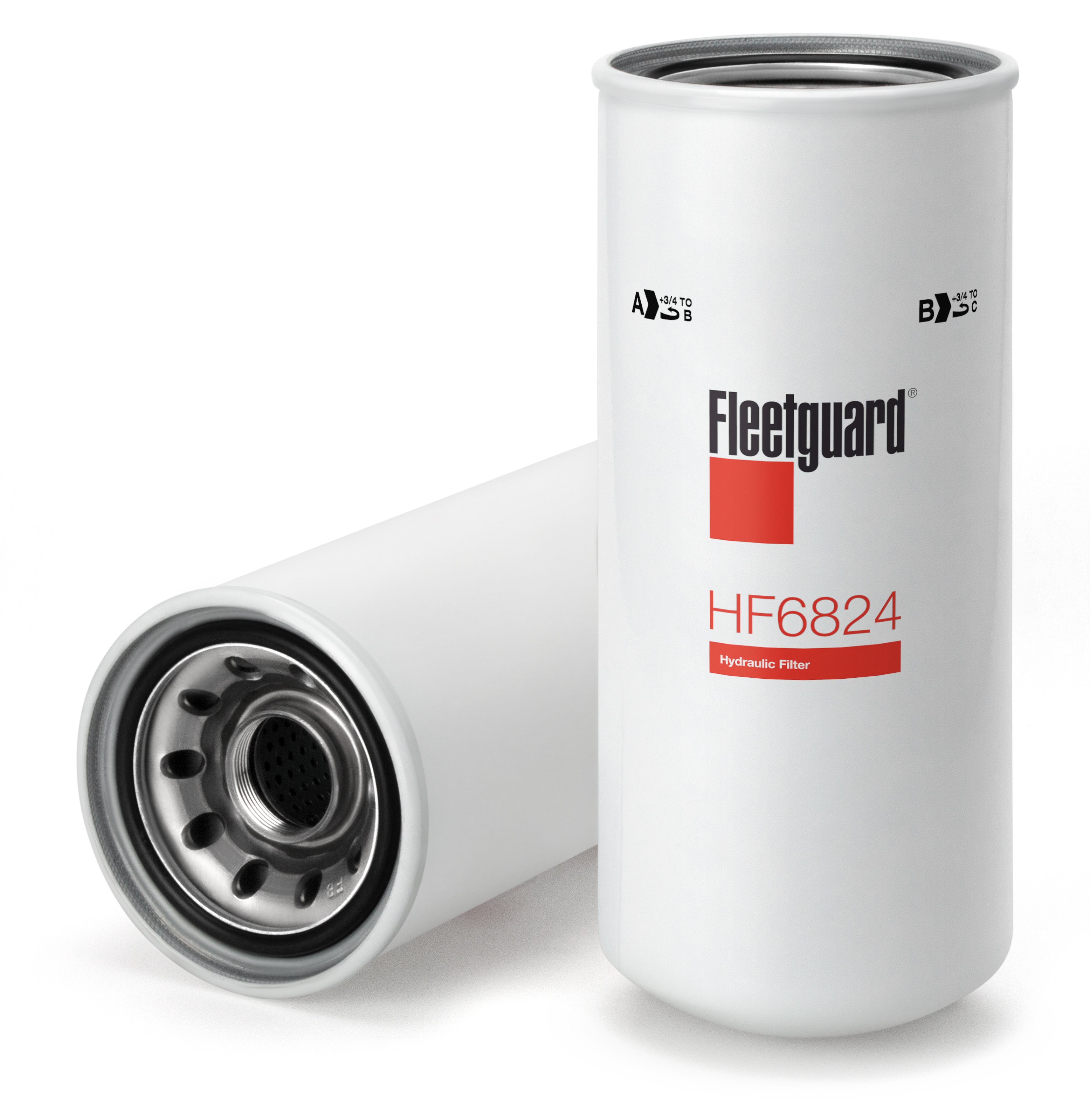

HF6824
Hydraulic Filter, Spin-On
Fleetguard® HF6824 premium hydraulic spin-on filter with cellulose media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Thread Size | 1.00 1/2-16 UN-2B |
| Largest OD | 4.89 inch / 124.33 mm |
| Gasket OD | 4.11 inch / 104.27 mm |
| Standpipe | NO |
| TWA MICRON @ BETA=20 | 15.00 micron |
| TWA MICRON @ BETA=75 | 20.00 micron |
| Length / Overall Height | 11.78 inch / 299.26 mm |
| Particle Size at Beta 75 | 17.30 micron (c) |
| Length | 11.73 inch / 297.94 mm |
| Gasket Inside Diameter | 3.58 inch / 90.81 mm |
| Seam OD | 4.95 in / 125.73 mm |
| TWA MICRON @ BETA=2 | 6.00 micron |
| TWA MICRON @ BETA=200 | 24.00 micron |
| Media Type | StrataPore |
| Particle Size at Beta 200 | 20.20 micron (c) |
| Applicable Region | North America, Europe, South America, South East Asia, South Pacific, Mexico and Central America |
