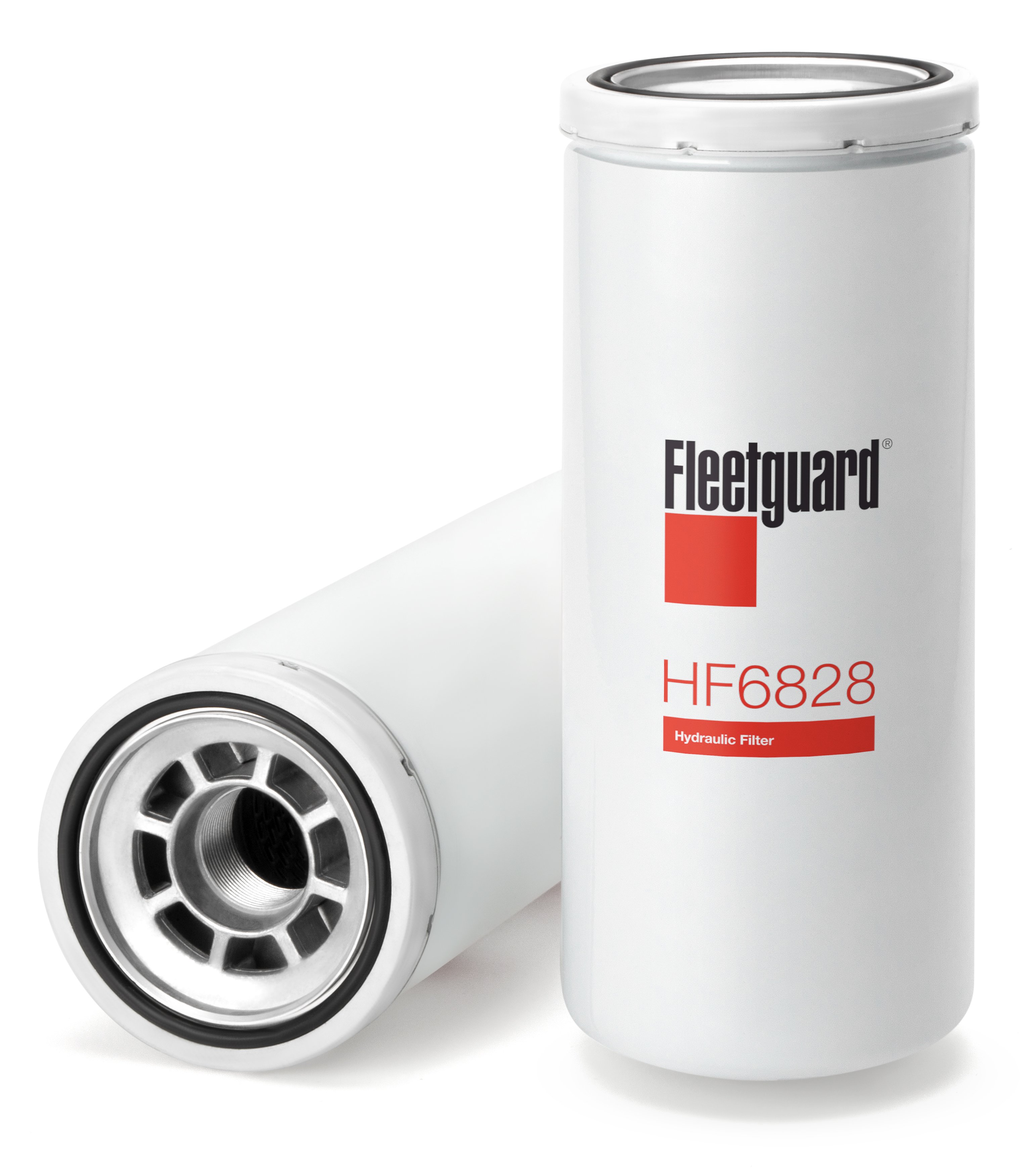

HF6828
Hydraulic Filter, Spin-On
Fleetguard® HF6828 hydraulic spin-on filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Thread Size | 1.00 1/2-16 UN-2B |
| Length | 11.84 inch / 300.79 mm |
| Gasket OD | 4.27 inch / 108.46 mm |
| Standpipe | NO |
| TWA MICRON @ BETA=20 | 14.00 micron |
| TWA MICRON @ BETA=75 | 18.00 micron |
| Particle Size at Beta 200 | 19.00 micron (c) |
| Largest OD | 4.72 inch / 119.89 mm |
| Gasket Inside Diameter | 3.85 inch / 97.79 mm |
| Seam OD | 4.82 in / 122.45 mm |
| TWA MICRON @ BETA=2 | 5.00 micron |
| TWA MICRON @ BETA=200 | 19.00 micron |
| Length / Overall Height | 11.89 inch / 302.13 mm |
| Particle Size at Beta 75 | 18.00 micron (c) |
| Applicable Region | North America, Europe, South East Asia, South Pacific, Mexico and Central America |
Related Parts
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| 1 | |||
| 6068 | 1 | ||
| 6081 | 1 | ||
| 2 |
