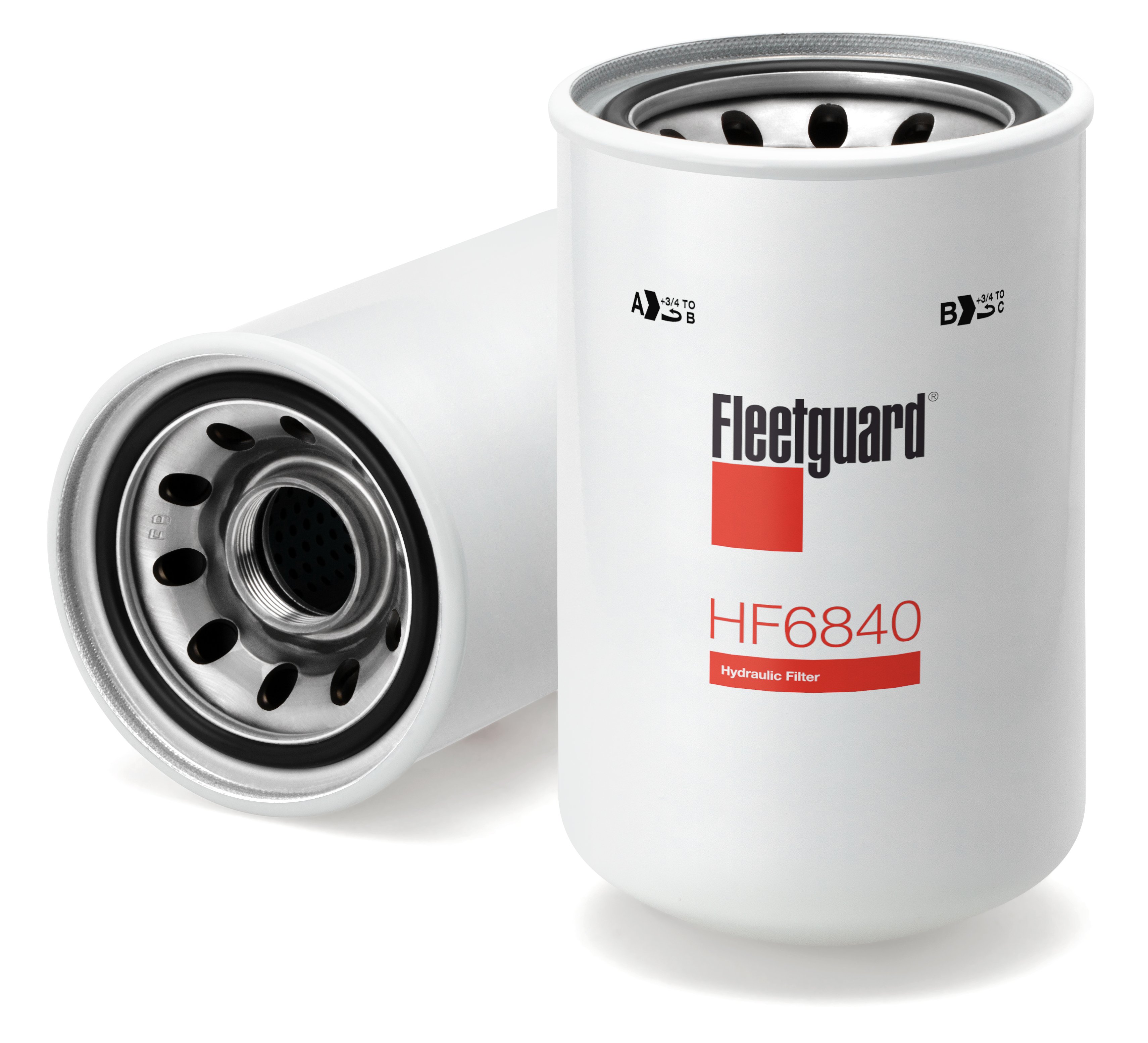

HF6840
Hydraulic Filter, Spin-On
Fleetguard® HF6840 hydraulic spin-on filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Thread Size | 1.00 1/2-16 UN-2B |
| Largest OD | 4.89 inch / 124.33 mm |
| Standpipe | NO |
| TWA MICRON @ BETA=20 | 17.00 micron |
| TWA MICRON @ BETA=75 | 20.00 micron |
| Gasket Inside Diameter | 3.54 inch / 89.79 mm |
| Length | 8.22 inch / 208.79 mm |
| Seam OD | 4.90 in / 124.33 mm |
| TWA MICRON @ BETA=2 | 7.00 micron |
| TWA MICRON @ BETA=200 | 24.00 micron |
| Length / Overall Height | 8.27 inch / 210.06 mm |
| Gasket OD | 4.11 inch / 104.27 mm |
| Applicable Region | North America, Europe, South East Asia, South Pacific, Mexico and Central America |
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| 6068 | 1 | ||
| 6068 | 1 | ||
| 6068 | 1 |
