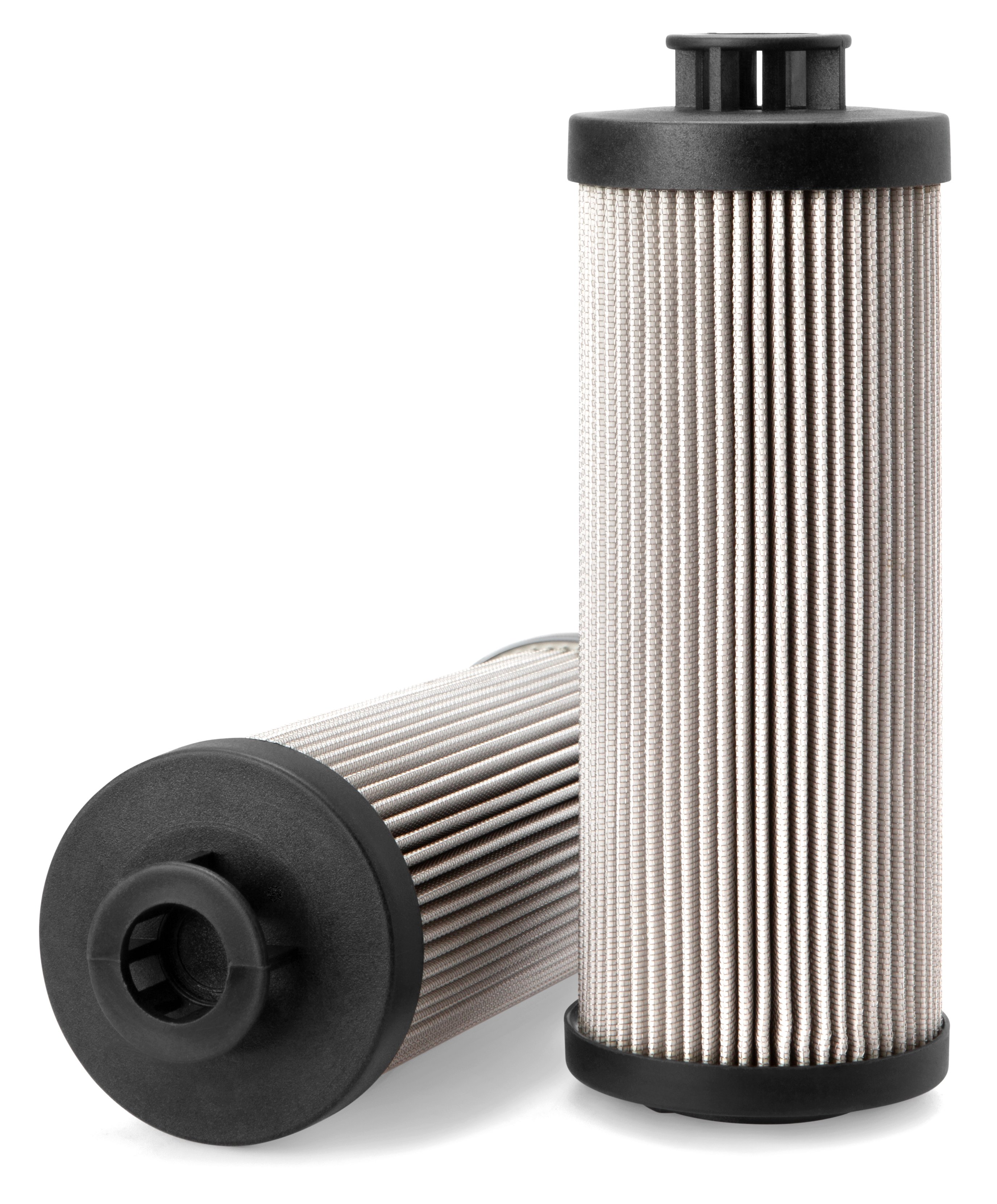

HF6890
Hydraulic Filter, Cartridge
Fleetguard® HF6890 premium hydraulic cartridge filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Largest OD | 2.91 inch / 74.00 mm |
| Gasket Inside Diameter | 1.34 inch / 34.00 mm |
| Efficiency Test Std | ISO 16889 |
| Gasket OD | 1.61 inch / 41.00 mm |
| Length | 7.99 in / 203.00 mm |
| Element Collapse/Burst, Min | 3000.00 kPa |
| Length / Overall Height | 7.99 inch / 203.00 mm |
| Largest End ID | 1.35 inch / 34.20 mm |
| Particle Size at Beta 75 | 17.00 micron (c) |
| Pressure Valve Opening Pressure | 300.00 kPa |
| Rated Flow | 63.41 gpm / 240.00 L/min |
| Pressure Valve | Yes |
| Test Specification | ISO 16889 |
| Applicable Region | North America, Europe, South America, South East Asia, South Pacific |
