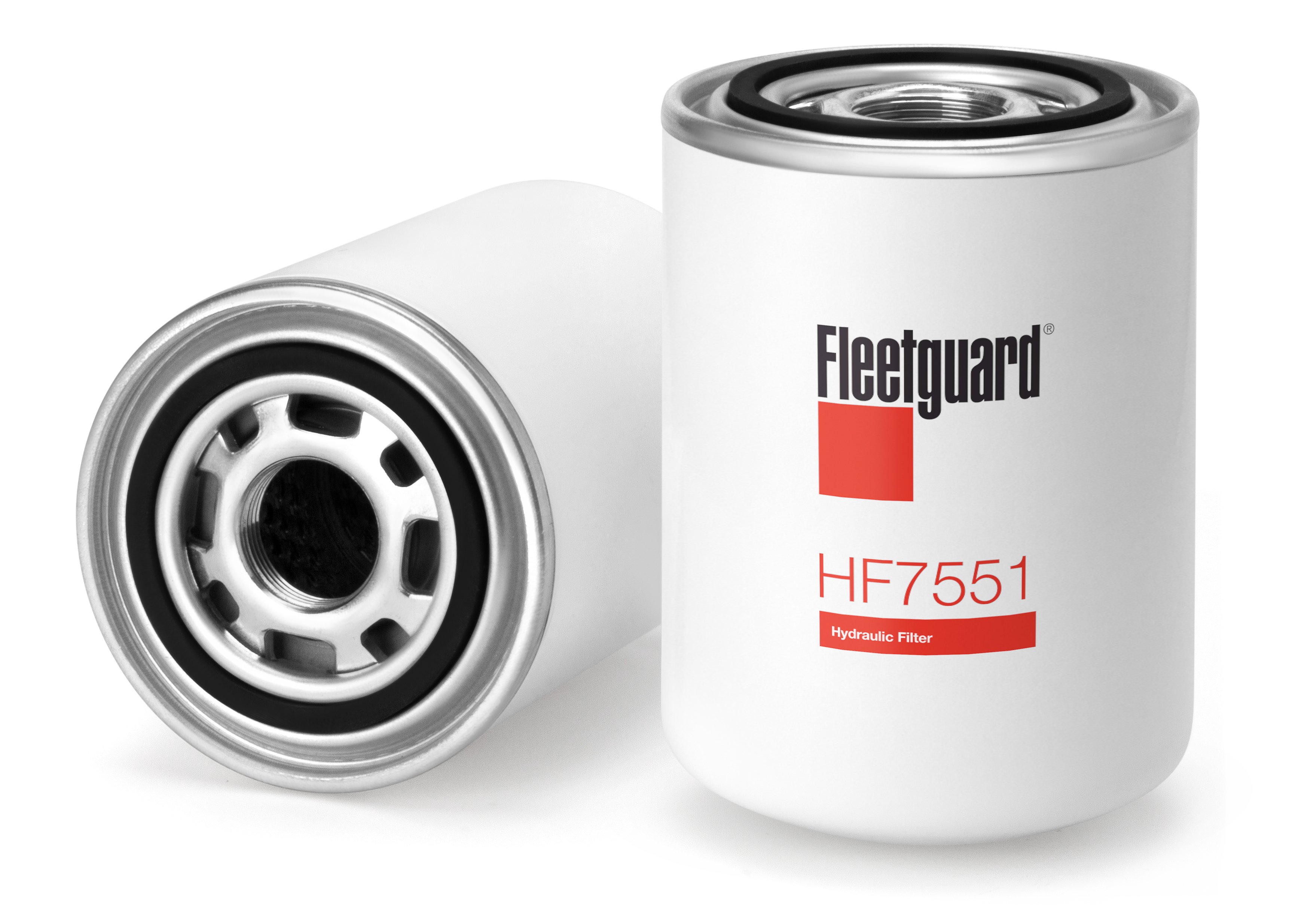

HF7551
Hydraulic Filter, Spin-On
Fleetguard® HF7551 hydraulic spin-on filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Thread Pitch | 16.00 threads Per Inch |
| Thread Form | Unified National |
| Length | 5.38 inch / 136.70 mm |
| Gasket OD | 2.81 inch / 71.50 mm |
| Particle Size at Beta 75 | 25.00 micron (c) |
| Thread Type | Internal |
| Length / Overall Height | 5.38 inch / 136.70 mm |
| BPV OPENING DP | No |
| Largest OD | 3.80 inch / 96.50 mm |
| Gasket Inside Diameter | 2.46 inch / 62.50 mm |
| Hydrostatic Burst Minimum | 2200.00 kPa |
| Thread Class | 2B |
| Flow Direction | Outside In |
| Pressure Valve | No |
| Applicable Region | North America, Europe, South America, South East Asia, South Pacific |
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| D9B-310 | 2006 | 1 | |
| D9B-260 | 2006 | 1 | |
| DH12E | 2006 | 1 | |
| D9B-260 | 2006 | 1 | |
| DH12E | 2006 | 1 | |
| DH12E | 2006 | 1 | |
| D9B-360 | 2006 | 1 | |
| DH12E | 2006 | 1 | |
| D9B-360 | 2006 | 1 | |
| D9B-310 | 2006 | 1 | |
| D6D EFE2 | 2003 | 1 | |
| D6D EFE2 | 2003 | 1 | |
| 1996 | 1 | ||
| D4D EAE1 | 1996 | 1 | |
| 1996 | 1 | ||
| 1996 | 1 | ||
| D6D EAE2 | 1996 | 1 | |
| D6D EAE2 | 1996 | 1 | |
| 1996 | 1 | ||
| CUMMINS | 1996 | 1 | |
| 1996 | 1 | ||
| 1 | |||
| D7D | 1 | ||
| 1 | |||
| D7D | 1 | ||
| ISL G (8.9) | 2011 | 1 | |
| 444T | 2020 | 1 | |
| 448TA4I-129E2 | 2016 | 1 | |
| ECOMAX 4.4 | 2015 | 1 | |
| TIER IV | 2015 | 1 | |
| 448TA4I | 2014 | 1 | |
| 444 DIESEL MAX | 2014 | 1 | |
| SE320/40816U298 | 2012 | 1 | |
| 4BG1T | 2012 | 1 | |
| 4HKIX | 2011 | 1 | |
| 4JJAXA1 | 2010 | 1 | |
| 4BG1 | 2008 | 1 | |
| 4JJ1X | 2008 | 1 | |
| 6HK1X | 2007 | 1 | |
| 6BG1TRB-05 | 2005 | 1 | |
| 6BG1 | 2001 | 1 | |
| 6BG1 | 2001 | 1 | |
| A-4BG1 | 2001 | 1 | |
| 6BG1T | 1997 | 1 | |
| 6BG1T | 1997 | 1 | |
| 6BG1T | 1997 | 1 | |
| ISUZU | 1993 | 1 | |
| ISUZU | 1993 | 1 | |
| ISUZU | 1990 | 1 | |
| ISUZU | 1990 | 1 | |
| 1 | |||
| 1 | |||
| ISUZU | 1 | ||
| ISUZU | 1 | ||
| 1 | |||
| ISUZU | 1 | ||
| 4BG1T | 1 | ||
| 1 | |||
| ISUZU | 1 | ||
| ISUZU | 1 | ||
| ISUZU | 1 | ||
| 1 | |||
| 4BG1T | 1 | ||
| ISUZU | 1 | ||
| ISUZU | 1 | ||
| 1 | |||
| 6RB1TQB | 1 | ||
| 6SDIT PB-01 | 1 | ||
| 1 | |||
| 2012 | 1 | ||
| L3E | 1 | ||
| L3E | 1 | ||
| S3L2 | 1 | ||
| V3800DI-EU2 | 2018 | 1 | |
| 4TNV98T | 2015 | 1 | |
| JCB444 Ecomax-109 | 2014 | 1 | |
| 3 TNV 70 Q | 2012 | 1 | |
| 84 C3/D703TE3 | 2012 | 1 | |
| 4TNV98 | 2012 | 1 | |
| 3TNV70 | 2011 | 1 | |
| 3TNV70-XBV | 2008 | 1 | |
| 2006 | 1 | ||
| 2006 | 1 | ||
| 2006 | 1 | ||
| 2006 | 1 | ||
| 2006 | 1 | ||
| 2006 | 1 | ||
| 2006 | 1 | ||
| 2006 | 1 | ||
| 2006 | 1 | ||
| 2006 | 1 | ||
| 2006 | 1 | ||
| 2006 | 1 | ||
| 2006 | 1 | ||
| 2006 | 1 | ||
| 2006 | 1 | ||
| 2006 | 1 | ||
| 2006 | 1 | ||
| 2006 | 1 | ||
| 2006 | 1 | ||
| 1991 | 1 | ||
| 1988 | 1 | ||
| 1988 | 1 | ||
| 1 | |||
| ISUZU | 1 | ||
| 1 | |||
| D950AT | 1 | ||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| D950A-DT | 1 | ||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 |
