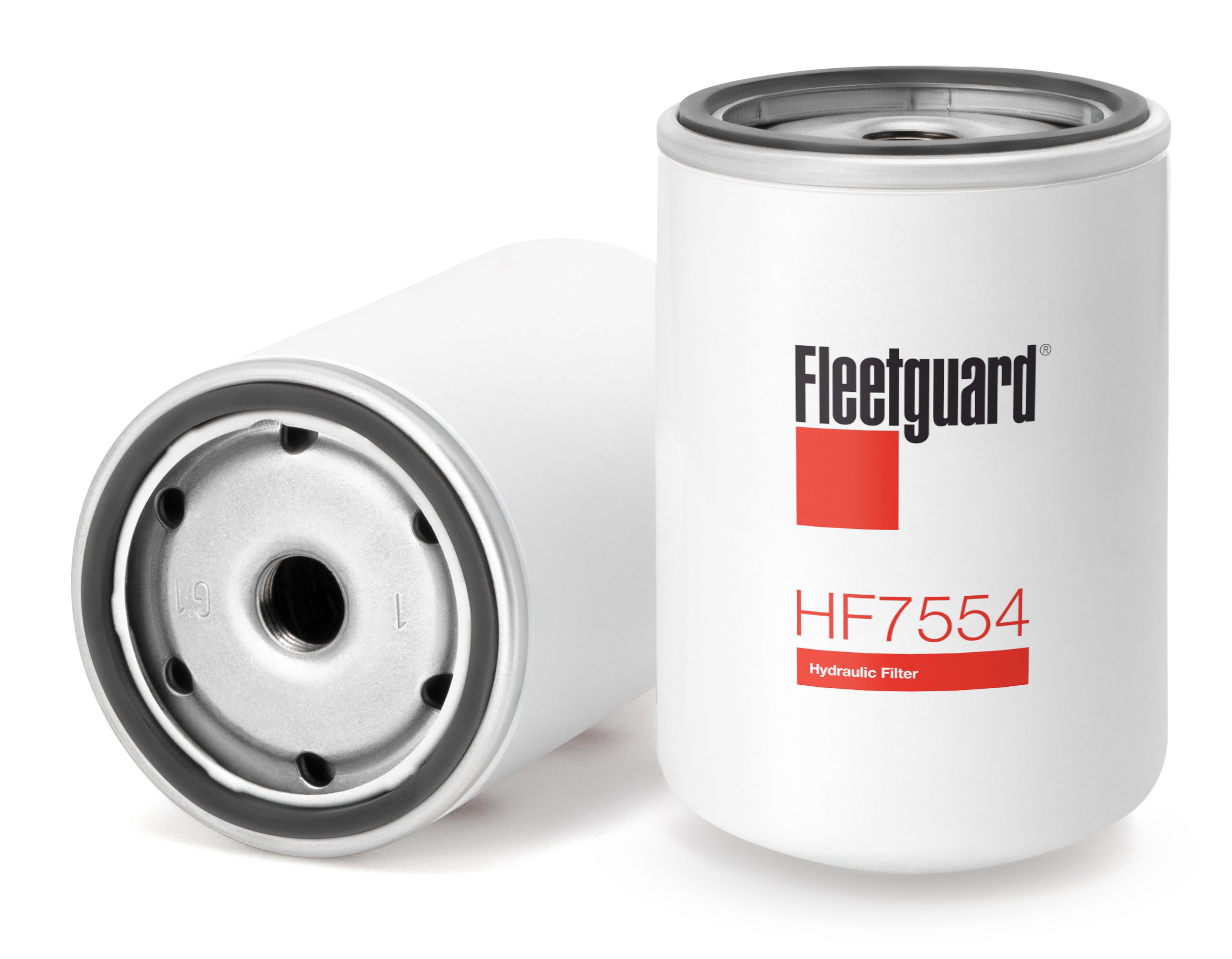

HF7554
Hydraulic Filter, Spin-On
Fleetguard® HF7554 hydraulic spin-on filter with cellulose media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
This product is obsolete
Please log in or sign up to add this product to your cart or wishlist.
| BPV OPENING DP | 14.50 PSI / 100.00 kPa |
| Height | 4.61 inch / 117.00 mm |
| Gasket Inside Diameter | 2.45 inch / 62.30 mm |
| Seam Outside Diameter | 3.05 in / 77.50 mm |
| TWA MICRON @ BETA=2 | 7.00 micron |
| TWA MICRON @ BETA=75 | 22.00 micron |
| Overall Height | 4.61 inch / 117.00 mm |
| Particle Size at Beta 200 | 50.00 micron (c) |
| Thread Size | M16 X 1.5-6H INT |
| Largest Outside Diameter | 3.05 inch / 77.50 mm |
| Gasket Outside Diameter | 2.76 inch / 70.00 mm |
| Standpipe | NO |
| TWA MICRON @ BETA=20 | 15.00 micron |
| Media Type | Cellulose |
| Pressure Valve | Yes |
| Particle Size at Beta 75 | 16.00 micron (c) |
