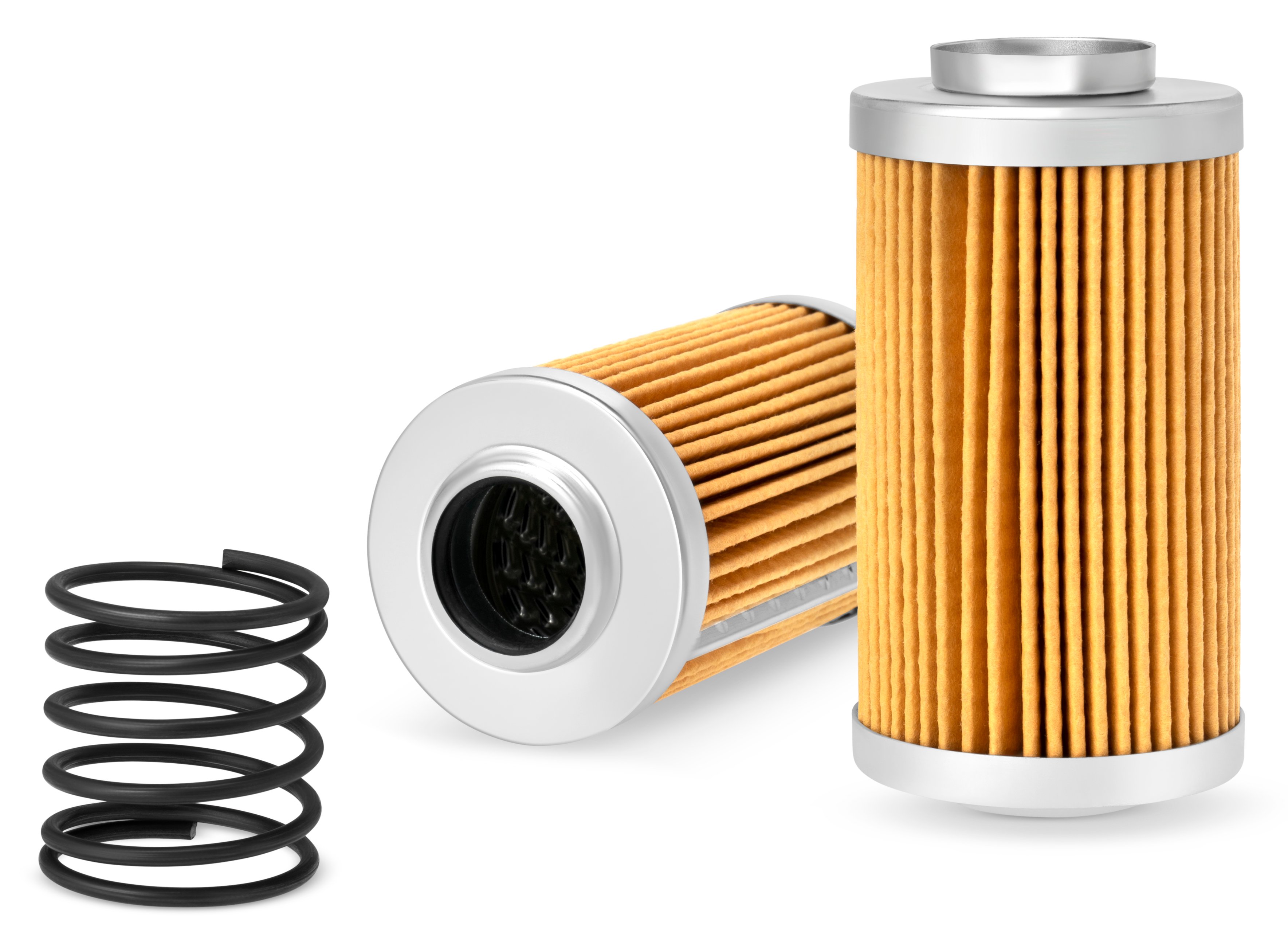

HF7657
Hydraulic Filter, Cartridge
Fleetguard® HF7657 hydraulic cartridge filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Length | 5.55 inch / 141.00 mm |
| Largest OD | 2.17 inch / 55.00 mm |
| Particle Size at Beta 75 | 25.00 micron (c) |
| Gasket OD | 1.20 inch / 30.56 mm |
| Pressure Valve | No |
| Test Specification | ISO 16889 |
| Largest End ID | 1.02 inch / 26.00 mm |
| Gasket Inside Diameter | 0.93 inch / 23.50 mm |
| Efficiency Test Std | ISO 16889 |
| Rated Flow | 7.93 gpm / 30.00 L/min |
| Element Collapse/Burst, Min | 1500.00 kPa |
| Length / Overall Height | 5.55 inch / 141.00 mm |
| Applicable Region | North America, Europe, South America, South East Asia, South Pacific |
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| 6LXB | 1969 | 1 | |
| TL11/31/57 | 1 |
