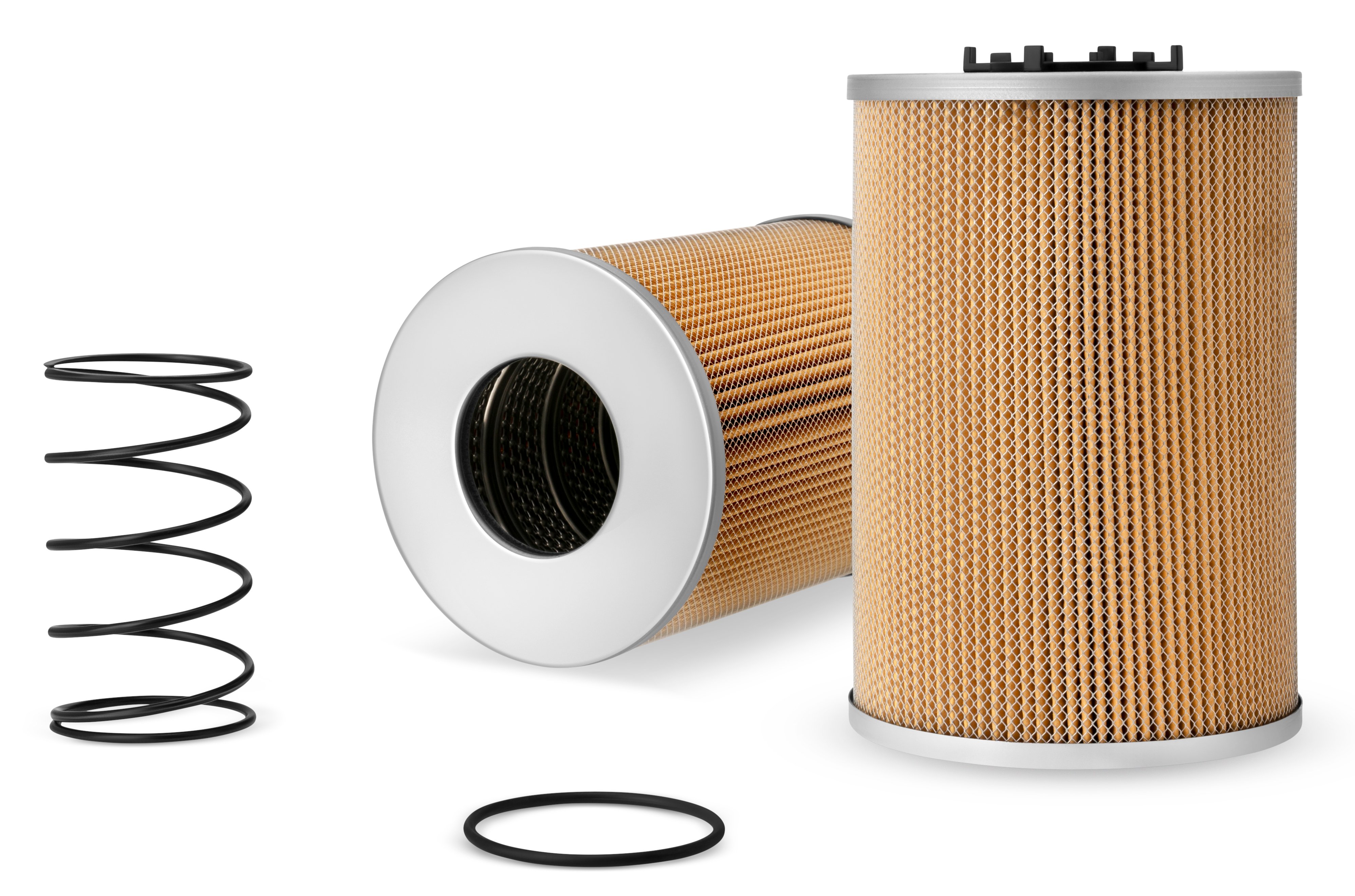

HF7909
Hydraulic Filter, Cartridge
Fleetguard® HF7909 hydraulic cartridge filter is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Length | 12.42 inch / 315.50 mm |
| Efficiency Test Std | ISO 16889 |
| Particle Size at Beta 75 | 57.00 micron (c) |
| Pressure Valve | Yes |
| Length / Overall Height | 12.44 inch / 316.00 mm |
| Largest End ID | 2.58 inch / 65.50 mm |
| Largest OD | 5.51 inch / 140.00 mm |
| Pressure Valve Opening Pressure | 270.00 kPa |
| Rated Flow | 23.78 gpm / 90.00 L/min |
| Element Collapse/Burst, Min | 500.00 kPa |
| Test Specification | ISO 16889 |
| Applicable Region | North America, Europe, South America, South East Asia, South Pacific |
Product Comments
The height includes a spring of 113mm
