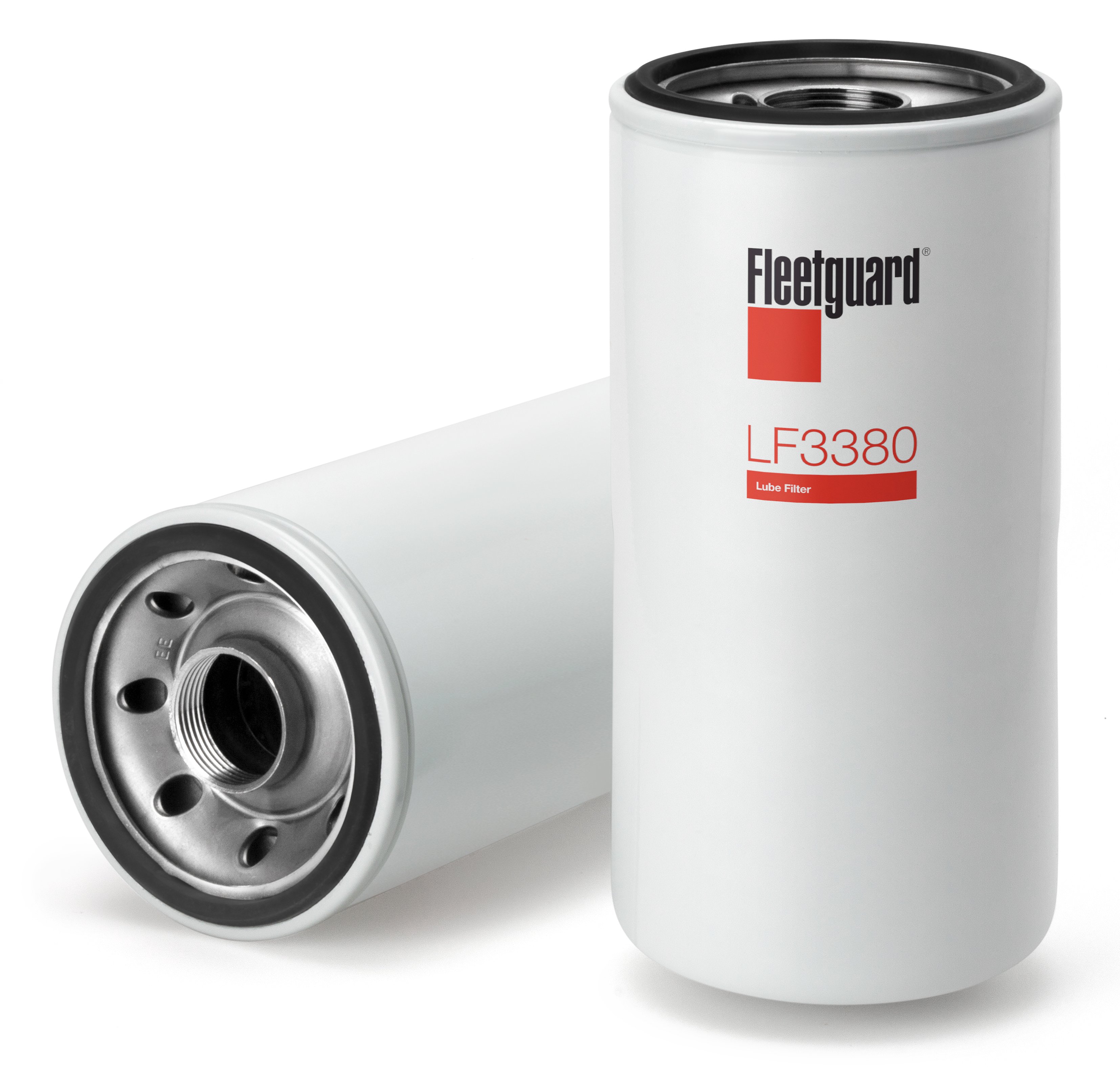

Specification
DOWNLOAD SPECS| Thread Size | 1.00 1/2-12 UNF 2B |
| Largest OD | 4.74 inch / 120.27 mm |
| Gasket OD | 4.36 inch / 110.74 mm |
| Rated Flow | 51.52 gpm / 195.00 L/min |
| Primary Particle Efficiency | 24.60 micron (c) @ 99% |
| Length | 9.82 inch / 249.43 mm |
| Gasket Inside Diameter | 3.89 inch / 98.88 mm |
| Efficiency Test Std | SAE J1858 |
| Hydrostatic Burst Minimum | 275.50 psi / 1900.00 kPa |
| Test Specification | SAE J1858 |
| Applicable Region | North America, Europe, South America, South East Asia, South Pacific, Mexico and Central America |
Product Comments
Synthetic Media Version
Related Parts
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| 8V-92 Series | 1 | ||
| 1 | |||
| 8V-92 Series | 1 | ||
| Series 60 | 1 | ||
| 6V-92 Series | 1 | ||
| 6V-92 Series | 1 | ||
| Series 50 | 1 | ||
| Series 50 | 1 | ||
| 8V-92 Series | 1 | ||
| 6V-92 Series | 1 | ||
| Series 60 | 1 | ||
| Series 60 | 1 | ||
| 1 | |||
| 8V-71 Series | 1 | ||
| 1 | |||
| 8V-71 Series | 1 | ||
| Series 50 | 1 | ||
| 8V-71 Series | 1 | ||
| 8V-92 Series | 1 | ||
| Series 60 | 1 | ||
| 6V-92 Series | 1 | ||
| 8V-71 Series | 1 | ||
| Series 50 | 1 | ||
| 6V-92 Series | 1 | ||
| 8210.22 | 1989 | 1 | |
| 8V-71 Series | 1 | ||
| 8V | 1 | ||
| 6V-92 Series | 1 | ||
| 8V-71 Series | 1 | ||
| 8V-71 Series | 1 | ||
| 6-71 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 8V-71 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 8V-71 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 6-71 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 8V-71 Series | 1 | ||
| 6-71 Series | 1 | ||
| 8V-92 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 8V | 1 | ||
| 6V-92 Series | 1 | ||
| 8V-71 Series | 1 | ||
| 8V-71 Series | 1 | ||
| 8V | 1 | ||
| 6-71 Series | 1 | ||
| 8V-71 Series | 1 | ||
| 8V-71 Series | 1 | ||
| 8V-92 Series | 1 | ||
| 6-71 Series | 1 | ||
| 6-71 Series | 1 | ||
| 6-71 Series | 1 | ||
| 8V | 1 | ||
| 8V-71 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 6-71 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 8V-71 Series | 1 | ||
| 8V-92 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 8V-92 Series | 1 | ||
| 8V-71 Series | 1 | ||
| 8V-71 Series | 1 | ||
| 8V-71 Series | 1 | ||
| 8V-71 Series | 1 | ||
| 6-71 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 8V-71 Series | 1 | ||
| 6-71 Series | 1 | ||
| 6-71 Series | 1 | ||
| 8V-71 Series | 1 | ||
| 8V-71 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 8V-92 Series | 1 | ||
| 8V-92 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 6V-53 Series | 1 | ||
| 8V-71 Series | 1 | ||
| 8V-71 Series | 1 | ||
| 8V-92 Series | 1 | ||
| 6-71 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 6V-53 Series | 1 | ||
| L10 | 1988 | 1 | |
| Series 60 | 1 | ||
| 6V-92 Series | 1 | ||
| 6-71 Series | 1 | ||
| Series 60 | 1 | ||
| Series 60 | 1 | ||
| 8V-71 Series | 1 | ||
| Series 60 | 1 | ||
| 12V-71 Series | 1 | ||
| Series 60 | 1 | ||
| 12V-71 Series | 1 | ||
| Series 60 | 1 | ||
| Series 60 | 1 | ||
| Series 60 | 1 | ||
| 12V-71 Series | 1 | ||
| Series 60 | 1 | ||
| Series 60 | 1991 | 1 | |
| Series 60 | 1991 | 1 | |
| Series 60 12.7L | 1989 | 1 | |
| 1 | |||
| 8V-92 Series | 1 | ||
| Series 60 | 1 | ||
| 8V-92 Series | 1 | ||
| 1 | |||
| 8V-71 Series | 1 | ||
| Series 60 | 1 | ||
| 12V-71 Series | 1 | ||
| 6-71 Series | 1 | ||
| 6-71 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 8V-92 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 8V-92 Series | 1 | ||
| GMC | 1 | ||
| 6V-92 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 6V-53 Series | 1 | ||
| 6V-71 Series | 1 | ||
| 1 | |||
| 8V-71 Series | 1 | ||
| Series 60 | 1 | ||
| 8V-71 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 8V-92 Series | 1 | ||
| Series 60 | 1 | ||
| Series 60 | 1 | ||
| 8V-71 Series | 1 | ||
| 8V-92 Series | 1 | ||
| Series 60 | 1 | ||
| 1 | |||
| 6V-92 Series | 1 | ||
| NTC-350 | 1985 | 1 | |
| SAA6D170E | 1 | ||
| SAA6D170E | 1 | ||
| 12V-149TIB | 1 | ||
| 8V-71 Series | 1 | ||
| 6-71 Series | 1 | ||
| 6-71 Series | 1 | ||
| 8V-92 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 8V-92 Series | 1 | ||
| 8V-92 Series | 1 | ||
| 6-71 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 6-71 Series | 1 | ||
| 8V-92 Series | 1 | ||
| 8V-71 Series | 1 | ||
| 6V-53T | 2011 | 1 | |
| 16V-71 | 1 | ||
| 6V-71 | 1 | ||
| 12V71 | 1 | ||
| 12V71 | 1 | ||
| 8V-71 | 1 | ||
| 16V-71 | 1 | ||
| 8V-92T | 1 | ||
| 1 | |||
| 8V-92T | 1 | ||
| Series 60 | 1 | ||
| 1 | |||
| GM12V-71 | 1 | ||
| 6V-71 | 1 | ||
| 12V71 | 1 | ||
| GMC | 1 | ||
| 8V-92T | 1 | ||
| GM12V-71 | 1 | ||
| Series 60 | 1 | ||
| 6V-53 | 1 | ||
| 4-53N | 1 | ||
| 4-53N | 1 | ||
| 3-53N | 1 | ||
| 4-53 | 1 | ||
| 6-71 | 1 | ||
| 8V-92 | 1 | ||
| CUMMINS | 1 | ||
| 6V-53 | 1 | ||
| KT450 | 1 | ||
| 8V-71 | 1 | ||
| V555 | 1 | ||
| 4-71 | 1 | ||
| 6-71 | 1 | ||
| 4-53 | 1 | ||
| 3-53 | 1 | ||
| NT-855 SERIES NTC-250 | 1 | ||
| 4-53N | 1 | ||
| 4-53 | 1 | ||
| 6V-53 | 1 | ||
| 6V-92 | 1 | ||
| 6V-53 | 1 | ||
| 6V-53 | 1 | ||
| 8V-71T | 1 | ||
| 4-53N | 1 | ||
| 4-53 | 1 | ||
| DL08 | 2013 | 1 | |
| DE08TIS | 2012 | 1 | |
| SAA6D170-2 | 2011 | 1 | |
| KTA-19 | 2011 | 1 | |
| KTA-19 | 2010 | 1 | |
| SAA6D170-2 | 2010 | 1 | |
| SAA6D170-2 | 2009 | 1 | |
| KTA-19 | 2009 | 1 | |
| KTA-19 | 2008 | 1 | |
| SAA6D170-2 | 2008 | 1 | |
| DL08 | 2005 | 1 | |
| DL08 | 2005 | 1 | |
| DL08 | 2005 | 1 | |
| Series 50 | 1993 | 1 | |
| 6 CYL 11.1 L | 1991 | 1 | |
| 6 CYL 12.7 L | 1991 | 1 | |
| Series 60 | 1991 | 1 | |
| 6V-92TA | 1985 | 1 | |
| N14 | 1985 | 1 | |
| 8V-92TA | 1985 | 1 | |
| 4-71 | 1 | ||
| DC9 | 1 | ||
| 16V-71 | 2 | ||
| Series 60 | 1 | ||
| 16V-71C | 1 | ||
| 16V-71N | 1 | ||
| LTA10 | 1 | ||
| 8V-71 | 1 | ||
| 8V-92TA | 1 | ||
| KTA19-C | 1 | ||
| 12V-149 | 1 | ||
| 6V-71N | 1 | ||
| GM DIESEL | 1 | ||
| LTA10 | 1 | ||
| LTA10 | 1 | ||
| 16V-149 | 1 | ||
| KTA38 | 1 | ||
| 12V-149TIB | 1 | ||
| KTA38 | 1 | ||
| 16V-71 | 1 | ||
| DETROIT DIESEL | 1 | ||
| LTA10 | 1 | ||
| KTA19 | 1 | ||
| 8V-92 | 1 | ||
| 16V-92N | 1 | ||
| 12V-149TIB | 1 | ||
| 12V-71N | 1 | ||
| GM DIESEL | 1 | ||
| 4-71N | 1 | ||
| 6V-92TA | 1 | ||
| 8V-92 | 1 | ||
| KTA19-C | 1 | ||
| LTA10 | 1 | ||
| Series 60 | 1 | ||
| 12V-149 | 4 | ||
| 8V-71 | 1 | ||
| KTA38 | 1 | ||
| GM DIESEL | 1 | ||
| 6-71 | 1 | ||
| 12V71 | 2 | ||
| 6V-71N | 1 | ||
| 12V-71N | 1 | ||
| NTA855 | 1 | ||
| VTA28-C | 1 | ||
| 16V-92TA | 1 | ||
| 8V-92 | 1 | ||
| 20V-149 | 1 | ||
| 6V-71 | 1 | ||
| 4-71N | 1 | ||
| 6V-53 | 1 | ||
| KTA19-C | 1 | ||
| 3-71 | 1 | ||
| KTA38 | 1 | ||
| 4-71T | 1 | ||
| 16V-149 | 1 | ||
| LTA10 | 1 | ||
| 12V71 | 1 | ||
| 16V-149 | 1 | ||
| 6-71T | 1 | ||
| KTA19-C | 1 | ||
| KTA-38C | 1 | ||
| 12V-92 | 2 | ||
| KTA-38C | 1 | ||
| GM DIESEL | 1 | ||
| KTA19 | 1 | ||
| 4-71N | 1 | ||
| KTTA-19C | 1 | ||
| GM DIESEL | 1 | ||
| 4-71N | 1 | ||
| DETROIT DIESEL | 1 | ||
| 4-71T | 1 | ||
| KTA-38C | 1 | ||
| 6V-71N65 | 1 | ||
| 16V-71 | 1 | ||
| 16V-149 | 1 | ||
| KTA19-C | 1 | ||
| 12V71 | 1 | ||
| LTA10 | 1 | ||
| LTA10 | 1 | ||
| GMC DIESEL | 1 | ||
| 6V-71 | 1 | ||
| 6V-71N65 | 1 | ||
| GM DIESEL | 1 | ||
| VTA28 | 1 | ||
| 8V-92 | 1 | ||
| 12V-71N | 1 | ||
| LTA10 | 1 | ||
| 16V-71 | 1 | ||
| 4-71T | 1 | ||
| 12V-149 | 1 | ||
| 12V-149TIB | 1 | ||
| 12V-149 | 1 | ||
| 4-71N | 1 | ||
| LTA10 | 1 | ||
| DETROIT DIESEL | 1 | ||
| 6-71 | 1 | ||
| 6V-71N | 1 | ||
| 4-53 | 1 | ||
| 16V-71 | 1 | ||
| 8V-71 | 1 | ||
| 16V-149 | 1 | ||
| 6V-71 | 1 | ||
| 6V-71N65 | 1 | ||
| 4-71N | 1 | ||
| GM DIESEL | 1 | ||
| 16V-92 | 1 | ||
| GM | 1 | ||
| 8V-92 | 1 | ||
| 16V-149 | 4 | ||
| 6-71 | 1 | ||
| 8V-149 | 1 | ||
| NT855 | 1 | ||
| 6V-92 | 1 | ||
| Series 60 | 1 | ||
| 8V-92TA | 1 | ||
| 12V-71N | 1 | ||
| 6V-92 Series | 1 | ||
| 12V-71N | 1 | ||
| KTA38 | 1 | ||
| 16V-92 | 1 | ||
| 2-71 | 1 | ||
| 12V-92TA | 1 | ||
| 4-71T | 1 | ||
| 4-53 | 1 | ||
| LTA10 | 1 | ||
| 8V-149 | 1 | ||
| 6V-92 Series | 1 | ||
| 4-71N | 1 | ||
| 6-71 | 1 | ||
| KTA38 | 1 | ||
| 6V-92TA | 1 | ||
| KTTA-19C | 1 | ||
| 12V-149 | 1 | ||
| 4-53T | 1 | ||
| 8V-71 | 1 | ||
| 16V-92 | 2 | ||
| 6V-53T | 1 | ||
| 6-71 | 1 | ||
| 6V-71N | 1 | ||
| 4-71N | 1 | ||
| 6-71 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 6-71 Series | 1 | ||
| 8V-71 Series | 1 | ||
| 8V-92 Series | 1 | ||
| 8V-92 Series | 1 | ||
| 8V-92 Series | 1 | ||
| 8V-71 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 8V-92 Series | 1 | ||
| 6-71 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 6-71 Series | 1 | ||
| 6-71 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 8V-71 Series | 1 | ||
| 8V-92 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 6-71 Series | 1 | ||
| 6-71 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 8V-92 Series | 1 | ||
| 6-71 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 8V-92 Series | 1 | ||
| 8V-71 Series | 1 | ||
| 6V-92 Series | 1 | ||
| 1 |
