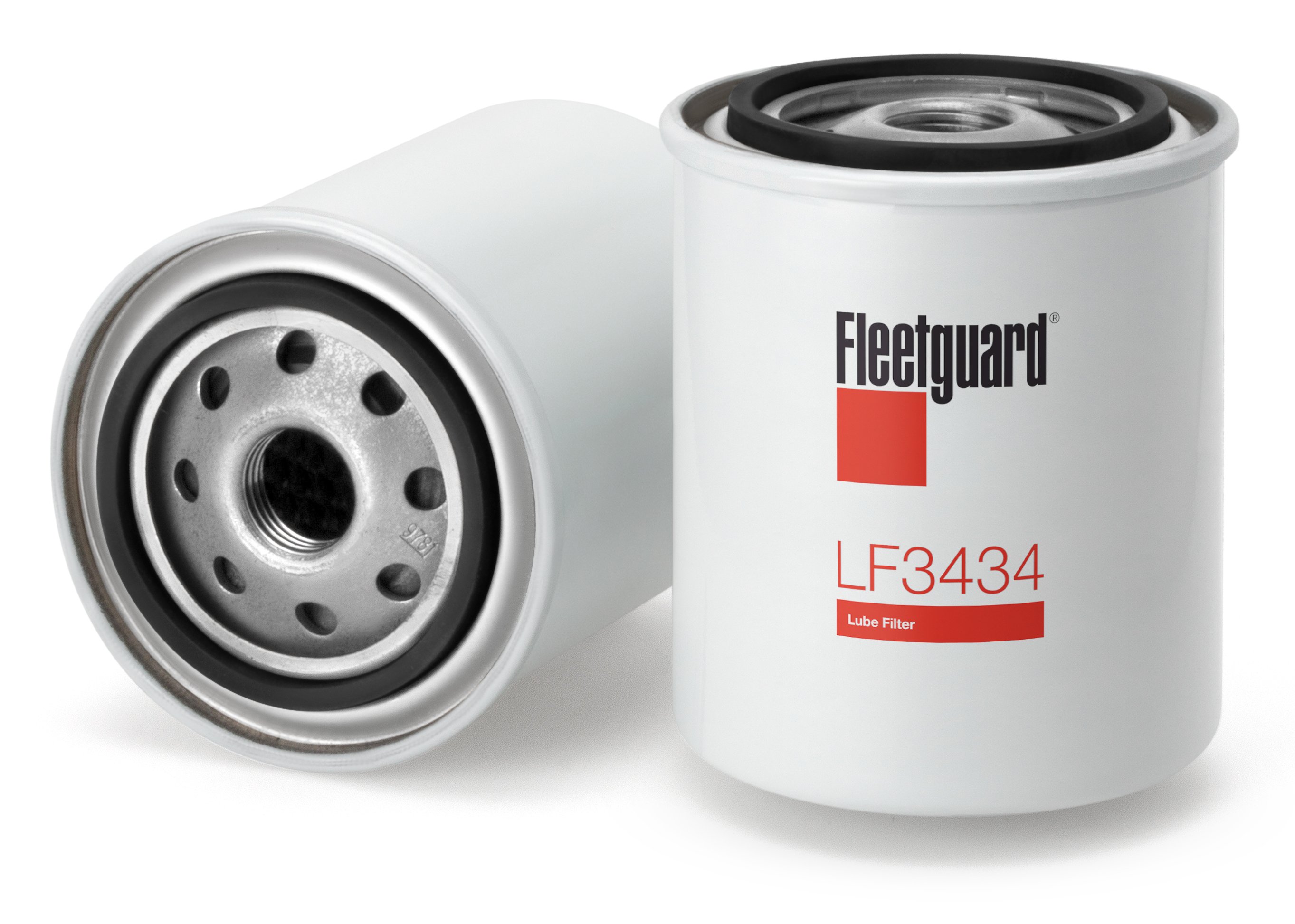

Specification
DOWNLOAD SPECS| Thread Size | 3/4-16 UNF 2B |
| Gasket Inside Diameter | 2.26 inch / 57.45 mm |
| Length | 4.02 inch / 102.11 mm |
| Pressure Valve | No |
| Rated Flow | 2.64 gpm / 10.00 L/min |
| Gasket OD | 2.52 inch / 64.01 mm |
| Largest OD | 3.32 inch / 84.25 mm |
| Media Type | Cellulose |
| Hydrostatic Burst Minimum | 213.30 psi / 1471.00 kPa |
| Primary Particle Efficiency | 28.80 micron (c) @ 98.7% |
| Applicable Region | North America, Europe, South America, South East Asia, South Pacific, Mexico and Central America |
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| EA71 | 1988 | 1 | |
| EA71 | 1988 | 1 | |
| EA71 | 1988 | 1 | |
| EA71 | 1988 | 1 | |
| H20 | 1 | ||
| H20 | 1 | ||
| D11 | 1 | ||
| J15 | 1 | ||
| J15 | 1 | ||
| D11 | 1 | ||
| 1 | |||
| 1 | |||
| D11 | 1 | ||
| H20 | 1 | ||
| D11 | 1 | ||
| H20 | 1 | ||
| H20 | 1 | ||
| J15 | 1 | ||
| H20 | 1 | ||
| D11 | 1 | ||
| J15 | 1 | ||
| H20 | 1 | ||
| 1 | |||
| 1 | |||
| J15 | 1 | ||
| 2.4L KA24E | 2000 | 1 | |
| 2.4L KA24E | 1999 | 1 | |
| 4 CYL. 1.6L (GA16DE) | 1999 | 1 | |
| RX 3.0L CARB | 1998 | 1 | |
| 2.4L KA24E | 1998 | 1 | |
| L4-2.4L-2389 CC-KA24DE | 1998 | 1 | |
| L4-1.6L-1597 CC-GA16DE | 1998 | 1 | |
| L4-1.6L-1597 CC-GA16DE | 1998 | 1 | |
| V6-3.0L | 1997 | 1 | |
| L4-1.6L-1597 CC-GA16DE | 1997 | 1 | |
| L4-1.6L-1597 CC-GA16DE | 1997 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1997 | 1 | |
| RX 3.0L CARB | 1997 | 1 | |
| L4-2.4L-2389 CC-KA24DE | 1997 | 1 | |
| 2.4L KA24E | 1997 | 1 | |
| L4-2.4L-2389 CC-KA24E | 1997 | 1 | |
| MPI (2.4L) | 1997 | 1 | |
| L4-2.4L-2389 CC-KA24DE | 1997 | 1 | |
| L4-2.4L-2389 CC-KA24DE | 1996 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1996 | 1 | |
| MPI (2.4L) | 1996 | 1 | |
| V6-3.0L-2960 CC-VG30D | 1996 | 1 | |
| V6-3.0L-2960 CC-VG30DTT | 1996 | 1 | |
| RX 3.0L CARB | 1996 | 1 | |
| V6-3.0L | 1996 | 1 | |
| L4-1.6L-1597 CC-GA16DE | 1996 | 1 | |
| L4-2.4L-2389 CC-KA24E | 1996 | 1 | |
| L4-1.6L-1597 CC-GA16DE | 1996 | 1 | |
| L4-2.4L-2389 CC-KA24DE | 1996 | 1 | |
| L4-1.6L-1597 CC-GA16DE | 1995 | 1 | |
| V6-3.0L-2960 CC-VG30D | 1995 | 1 | |
| L4-2.4L-2389 CC-KA24DE | 1995 | 1 | |
| NA20S | 1995 | 1 | |
| L4-1.6L-1597 CC-GA16DE | 1995 | 1 | |
| V6-3.0L | 1995 | 1 | |
| V6-3.0L-2960 CC | 1995 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1995 | 1 | |
| NA20S | 1995 | 1 | |
| V6-3.0L-2960 CC-VG30DTT | 1995 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1995 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1995 | 1 | |
| GQ 3.0L (RB30S) | 1995 | 1 | |
| MPI (2.4L) | 1995 | 1 | |
| L4-2.4L-2389 CC-KA24E | 1995 | 1 | |
| V6-3.0L | 1995 | 1 | |
| L4-2.4L-2389 CC-KA24DE | 1995 | 1 | |
| V6-3.0L-2960 CC | 1994 | 1 | |
| MPI (2.4L) | 1994 | 1 | |
| L4-2.4L-2389 CC-KA24DE | 1994 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1994 | 1 | |
| GQ 3.0L (RB30S) | 1994 | 1 | |
| V6-3.0L-2960 CC-VG30D | 1994 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1994 | 1 | |
| V6-3.0L-2960 CC-VE30DE | 1994 | 1 | |
| L4-2.4L-2389 CC-KA24E | 1994 | 1 | |
| L4-2.4L-2389 CC-KA24DE | 1994 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1994 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1994 | 1 | |
| V6-3.0L-2960 CC-VG30DTT | 1994 | 1 | |
| V6-3.0L | 1994 | 1 | |
| L4-1.6L-1597 CC-GA16DE | 1994 | 1 | |
| V6-3.0L | 1994 | 1 | |
| V6-3.0L | 1993 | 1 | |
| V6-3.0L-2960 CC | 1993 | 1 | |
| GC22 | 1993 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1993 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1993 | 1 | |
| L4-1.6L-1597 CC-GA16DE | 1993 | 1 | |
| L4-2.4L-2389 CC-KA24E | 1993 | 1 | |
| L4-1.6L-1597 CC-GA16DE | 1993 | 1 | |
| V6-3.0L | 1993 | 1 | |
| V6-3.0L-2960 CC-VG30DTT | 1993 | 1 | |
| V6-3.0L-2960 CC-VE30DE | 1993 | 1 | |
| L4-2.4L-2389 CC-KA24DE | 1993 | 1 | |
| ERC22 | 1993 | 1 | |
| MPI (2.4L) | 1993 | 1 | |
| E24 (2.4L) | 1993 | 1 | |
| GQ 3.0L (RB30S) | 1993 | 1 | |
| BRC22 | 1993 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1993 | 1 | |
| L4-2.4L-2389 CC-KA24DE | 1993 | 1 | |
| V6-3.0L-2960 CC-VG30D | 1993 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1993 | 1 | |
| U12 (2.4L) | 1992 | 1 | |
| V6-3.0L | 1992 | 1 | |
| L4-1.6L-1597 CC-GA16DE | 1992 | 1 | |
| U12 (2.0L) | 1992 | 1 | |
| L4-2.4L-2389 CC-KA24E | 1992 | 1 | |
| L4-2.4L-2389 CC-KA24E | 1992 | 1 | |
| TRZ (2.0L) | 1992 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1992 | 1 | |
| V6-3.0L-2960 CC-VE30DE | 1992 | 1 | |
| V6-3.0L-2960 CC-VG30D | 1992 | 1 | |
| V6-3.0L-2960 CC-VG30DTT | 1992 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1992 | 1 | |
| L4-1.6L-1597 CC-GA16DE | 1992 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1992 | 1 | |
| V6-3.0L-2960 CC | 1992 | 1 | |
| GQ 3.0L (RB30S) | 1992 | 1 | |
| L4-2.4L-2389 CC-KA24DE | 1992 | 1 | |
| Z24 (2.4L) | 1992 | 1 | |
| TRZ (2.4L) | 1992 | 1 | |
| V6-3.0L | 1992 | 1 | |
| V6-3.0L-2960 CC | 1991 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1991 | 1 | |
| KN13 TWIN CAM | 1991 | 1 | |
| TRZ (2.0L) | 1991 | 1 | |
| L4-1.6L-1597 CC-GA16DE | 1991 | 1 | |
| L4-2.4L-2389 CC-KA24DE | 1991 | 1 | |
| 3.0L EFI | 1991 | 1 | |
| U12 (2.4L) | 1991 | 1 | |
| V6-3.0L-2960 CC-VG30D | 1991 | 1 | |
| 1.6L MPFI | 1991 | 1 | |
| Z24 (2.4L) | 1991 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1991 | 1 | |
| TRZ (2.4L) | 1991 | 1 | |
| L4-2.4L-2389 CC-KA24E | 1991 | 1 | |
| V6-3.0L-2960 CC-VG30DTT | 1991 | 1 | |
| U12 (2.0L) | 1991 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1991 | 1 | |
| L4-1.6L-1597 CC-GA16DE | 1991 | 1 | |
| GQ 3.0L (RB30S) | 1991 | 1 | |
| L4-2.4L-2389 CC-KA24E | 1991 | 1 | |
| L4-2.4L-2389 CC-KA24E | 1990 | 1 | |
| V6-3.0L-2960 CC | 1990 | 1 | |
| U12 (2.4L) | 1990 | 1 | |
| GQ 3.0L (RB30S) | 1990 | 1 | |
| L4-1.6L-1597 CC-GA16I | 1990 | 1 | |
| Z24 (2.4L) | 1990 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1990 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1990 | 1 | |
| V6-3.0L-2960 CC-VG30D | 1990 | 1 | |
| L4-2.4L-2389 CC-KA24E | 1990 | 1 | |
| L4-2.4L-2389 CC-KA24E | 1990 | 1 | |
| V6-3.0L-2960 CC-VG30DTT | 1990 | 1 | |
| TRZ (2.4L) | 1990 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1990 | 1 | |
| KN13 TWIN CAM | 1990 | 1 | |
| TRZ (2.0L) | 1990 | 1 | |
| L4-1.6L-1597 CC-GA16I | 1990 | 1 | |
| NA20S | 1990 | 1 | |
| U12 (2.0L) | 1990 | 1 | |
| L4-2.4L-2389 CC-KA24E | 1990 | 1 | |
| L4-1.6L-1597 CC-GA16I | 1989 | 1 | |
| L4-1.8L-1809 CC-CA18D | 1989 | 1 | |
| Z24 (2.4L) | 1989 | 1 | |
| L4-1.6L-1597 CC-GA16I | 1989 | 1 | |
| L4-2.0L-1974 CC-CA20E | 1989 | 1 | |
| TRZ (2.4L) | 1989 | 1 | |
| V6-3.0L-2960 CC-VG30 | 1989 | 1 | |
| L4-2.4L-2389 CC-KA24E | 1989 | 1 | |
| 1989 | 1 | ||
| V6-3.0L-2960 CC-VG30T | 1989 | 1 | |
| U12 (2.4L) | 1989 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1989 | 1 | |
| V6-3.0L-2960 CC-VG30 | 1989 | 1 | |
| KN13 TWIN CAM | 1989 | 1 | |
| TRZ (2.0L) | 1989 | 1 | |
| L4-2.4L-2389 CC-Z24I | 1989 | 1 | |
| V6-3.0L-2960 CC-VG30 | 1989 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1988 | 1 | |
| L4-1.6L-1597 CC-E16I | 1988 | 1 | |
| KN13 TWIN CAM | 1988 | 1 | |
| L4-2.0L-1974 CC-CA20E | 1988 | 1 | |
| L4-2.0L-1974 CC-CA20E | 1988 | 1 | |
| 1988 | 1 | ||
| Z24 (2.4L) | 1988 | 1 | |
| 1988 | 1 | ||
| V6-3.0L-2960 CC-VG30 | 1988 | 1 | |
| L4-2.4L-2389 CC-Z24I | 1988 | 1 | |
| L4-1.6L-1597 CC-E16S | 1988 | 1 | |
| L4-1.6L-1597 CC-E16I | 1988 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1988 | 1 | |
| V6-3.0L-2960 CC-VG30 | 1988 | 1 | |
| L4-1.8L-1809 CC-CA18D | 1988 | 1 | |
| V6-3.0L-2960 CC-VG30T | 1988 | 1 | |
| V6-3.0L-2960 CC-VG30 | 1988 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1987 | 1 | |
| 1987 | 1 | ||
| 1.6L | 1987 | 1 | |
| KN13 TWIN CAM | 1987 | 1 | |
| 1.5L | 1987 | 1 | |
| L4-1.6L-1597 CC-E16I | 1987 | 1 | |
| L4-2.0L-1974 CC-CA20E | 1987 | 1 | |
| 1987 | 1 | ||
| V6-3.0L-2960 CC-VG30T | 1987 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1987 | 1 | |
| V6-3.0L-2960 CC-VG30 | 1987 | 1 | |
| L4-1.6L-1597 CC-E16S | 1987 | 1 | |
| L4-1.6L-1597 CC-CA16D | 1987 | 1 | |
| V6-3.0L-2960 CC-VG30 | 1987 | 1 | |
| Z24 (2.4L) | 1987 | 1 | |
| 1987 | 1 | ||
| V6-3.0L-2960 CC-VG30 | 1987 | 1 | |
| L4-1.6L-1597 CC-E16I | 1987 | 1 | |
| L4-2.0L-1974 CC-CA20E | 1987 | 1 | |
| L4-2.4L-2389 CC-Z24I | 1987 | 1 | |
| L4-2.0L-1974 CC-CA20E | 1986 | 1 | |
| L4-1.6L-1597 CC-E16 | 1986 | 1 | |
| GL | 1986 | 1 | |
| V6-3.0L-2960 CC-VG30 | 1986 | 1 | |
| 1986 | 1 | ||
| KN12 TURBO | 1986 | 1 | |
| 1.5L | 1986 | 1 | |
| Z24 (2.4L) | 1986 | 1 | |
| V6-3.0L-2960 CC-VG30T | 1986 | 1 | |
| V6-3.0L-2960 CC-VG30 | 1986 | 1 | |
| 1.6L | 1986 | 1 | |
| 1986 | 1 | ||
| L4-1.8L-1809 CC-CA18ET | 1986 | 1 | |
| L4-2.0L-1974 CC-CA20E | 1986 | 1 | |
| 1986 | 1 | ||
| 1986 | 1 | ||
| L4-1.6L-1597 CC-E16 | 1986 | 1 | |
| SERIES 3 (2.0L) | 1986 | 1 | |
| 1986 | 1 | ||
| 1986 | 1 | ||
| V6-3.0L-2960 CC-VG30E | 1986 | 1 | |
| C20 | 1986 | 1 | |
| 1986 | 1 | ||
| SGL | 1986 | 1 | |
| KN12 TURBO | 1985 | 1 | |
| L4-1.6L-1597 CC-E16 | 1985 | 1 | |
| 1985 | 1 | ||
| 1985 | 1 | ||
| 1985 | 1 | ||
| 1.6L | 1985 | 1 | |
| Z20D | 1985 | 1 | |
| L4-1.8L-1809 CC-CA18ET | 1985 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1985 | 1 | |
| 1985 | 1 | ||
| 1.5L | 1985 | 1 | |
| V6-3.0L-2960 CC-VG30 | 1985 | 1 | |
| L4-2.0L-1974 CC-CA20E | 1985 | 1 | |
| SERIES 3 (2.0L) | 1985 | 1 | |
| Z20S | 1985 | 1 | |
| V6-3.0L-2960 CC-VG30T | 1985 | 1 | |
| L4-2.0L-1974 CC-CA20E | 1985 | 1 | |
| 1985 | 1 | ||
| L4-1.6L-1597 CC-E16 | 1985 | 1 | |
| L4-1.6L-1597 CC-E16 | 1984 | 1 | |
| 1984 | 1 | ||
| KN12 TURBO | 1984 | 1 | |
| 1984 | 1 | ||
| L4-1.6L-1597 CC-E16 | 1984 | 1 | |
| V6-3.0L-2960 CC-VG30T | 1984 | 1 | |
| L4-2.0L-1974 CC-CA20E | 1984 | 1 | |
| L4-2.0L-1974 CC-CA20E | 1984 | 1 | |
| 1984 | 1 | ||
| 1984 | 1 | ||
| L4-1.5L-1488 CC-E15T | 1984 | 1 | |
| 1984 | 1 | ||
| 1.5L | 1984 | 1 | |
| L4-1.8L-1809 CC-CA18ET | 1984 | 1 | |
| 1984 | 1 | ||
| 1984 | 1 | ||
| 1.6L | 1984 | 1 | |
| 1984 | 1 | ||
| 1984 | 1 | ||
| V6-3.0L-2960 CC-VG30 | 1984 | 1 | |
| 1.6L | 1983 | 1 | |
| 1983 | 1 | ||
| 1.5L | 1983 | 1 | |
| 1983 | 1 | ||
| L4-1597 CC (1.6L) CARB | 1983 | 1 | |
| L4-1488 CC (1.5L) TURBO | 1983 | 1 | |
| L4-1597 CC (1.6L) CARB | 1983 | 1 | |
| L4-1974 CC (2.0L) CARB | 1983 | 1 | |
| 1983 | 1 | ||
| 1983 | 1 | ||
| 1983 | 1 | ||
| KN12 TURBO | 1983 | 1 | |
| L4-1974 CC (2.0L) CARB | 1982 | 1 | |
| L4-1488 CC (1.5L) CARB | 1982 | 1 | |
| Z20 (2.0L) | 1982 | 1 | |
| 1982 | 1 | ||
| L4-1237 CC (1.2L) CARB | 1982 | 1 | |
| L4-1488 CC (1.5L) CARB | 1982 | 1 | |
| 1982 | 1 | ||
| Z20 (2.0L) | 1982 | 1 | |
| 1982 | 1 | ||
| 1.5L | 1982 | 1 | |
| L4-1488 CC (1.5L) CARB | 1982 | 1 | |
| 1.6L | 1982 | 1 | |
| L4-1397 CC (1.4L) CARB | 1982 | 1 | |
| 1982 | 1 | ||
| 1.5L | 1981 | 1 | |
| 1.6L | 1981 | 1 | |
| 1981 | 1 | ||
| 1981 | 1 | ||
| 1981 | 1 | ||
| 1981 | 1 | ||
| 1980 | 1 | ||
| 1979 | 1 | ||
| 1978 | 1 | ||
| J15 | 1977 | 1 | |
| 1977 | 1 | ||
| J15 | 1977 | 1 | |
| 1976 | 1 | ||
| 1975 | 1 | ||
| 1974 | 1 | ||
| 1973 | 1 | ||
| 1972 | 1 | ||
| 1971 | 1 | ||
| J15 GAS | 1 | ||
| H20 | 1 | ||
| J15 | 1 | ||
| H20 | 1 | ||
| ME92TB | 1 | ||
| H20 | 1 | ||
| H20 | 1 | ||
| P40 | 1 | ||
| H30 | 1 | ||
| H30 | 1 | ||
| J15 | 1 | ||
| H20 | 1 | ||
| D11 | 1 | ||
| D11 | 1 | ||
| H20 | 1 | ||
| A15 | 1 | ||
| D11 | 1 | ||
| P40 | 1 | ||
| H20 | 1 | ||
| H20 | 1 | ||
| H20 | 1 | ||
| H20 | 1 | ||
| H20 | 1 | ||
| J15 GAS | 1 | ||
| Z24 | 1 | ||
| H20 | 1 | ||
| H20 | 1 | ||
| H20 | 1 | ||
| D11 | 1 | ||
| H20 | 1 | ||
| H20 | 1 | ||
| H20 | 1 | ||
| H20 | 1 | ||
| J15 GAS | 1 | ||
| H20 | 1 | ||
| D11 | 1 | ||
| H20 | 1 | ||
| Z24 | 1 | ||
| H20 | 1 | ||
| H30 | 1 | ||
| H20 | 1 | ||
| D11 | 1 | ||
| J15 | 1 | ||
| CASEI | 1 | ||
| 1 | |||
| A15 | 1 | ||
| V6-3.0L-183-W | 1998 | 1 | |
| V6-3.0L-2960 CC-VG30DE | 1997 | 1 | |
| V6-3.0L-183-W | 1997 | 1 | |
| V8-4.5L-4494 CC-VH45DE | 1996 | 1 | |
| V6-3.0L-2960 CC-VG30DE | 1996 | 1 | |
| V6-3.0L-183-W | 1996 | 1 | |
| V6-3.0L-2960 CC-VG30DE | 1995 | 1 | |
| V6-3.0L-183-W | 1995 | 1 | |
| V8-4.5L-4494 CC-VH45DE | 1995 | 1 | |
| V8-4.5L-4494 CC-VH45DE | 1994 | 1 | |
| V6-3.0L-2960 CC-VG30DE | 1994 | 1 | |
| H4-1.8L-1781 CC-EA82S | 1994 | 1 | |
| V6-3.0L-183-W | 1994 | 1 | |
| H4-1.8L-1781 CC-EA82S | 1993 | 1 | |
| V6-3.0L-2960 CC-VG30DE | 1993 | 1 | |
| V6-3.0L-183-W | 1993 | 1 | |
| V8-4.5L-4494 CC-VH45DE | 1993 | 1 | |
| V8-4.5L-4494 CC-VH45DE | 1992 | 1 | |
| H4-1.8L-1781 CC-EA82S | 1992 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1992 | 1 | |
| H4-1.8L-1781 CC-EA82 | 1991 | 1 | |
| H6-2.7L-2672 CC-ER27 | 1991 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1991 | 1 | |
| V8-4.5L-4494 CC-VH45DE | 1991 | 1 | |
| H4-1.8L-1781 CC-EA82S | 1991 | 1 | |
| H4-1.8L-1781 CC-EA82 | 1990 | 1 | |
| 1.8L F/INJ & TURBO | 1990 | 1 | |
| H4-1.8L-1781 CC-EA82S | 1990 | 1 | |
| H6-2.7L-2672 CC-ER27 | 1990 | 1 | |
| V6-3.0L-2960 CC-VG30E | 1990 | 1 | |
| H4-1.8L-1781 CC-EA82T | 1990 | 1 | |
| V8-4.5L-4494 CC-VH45DE | 1990 | 1 | |
| H6-2.7L-2672 CC-ER27 | 1989 | 1 | |
| H4-1.8L-1781 CC-EA82S | 1989 | 1 | |
| H4-1.8L-1781 CC-EA82S | 1989 | 1 | |
| H4-1.8L-1781 CC-EA82C | 1989 | 1 | |
| H4-1.8L-1781 CC-EA82T | 1989 | 1 | |
| H4-1.8L-1781 CC-EA82F | 1989 | 1 | |
| H4-1.8L-1781 CC-EA82T | 1989 | 1 | |
| 1.8L F/INJ & TURBO | 1989 | 1 | |
| H4-1.8L-1781 CC-EA82F | 1989 | 1 | |
| H4-1.6L-1595 CC-EA6 | 1989 | 1 | |
| H4-1.8L-1781 CC-EA82S | 1989 | 1 | |
| H4-1.8L-1781 CC-EA82T | 1989 | 1 | |
| H4-1.8L-1781 CC-EA82F | 1989 | 1 | |
| H4-1.8L-1781 CC-EA82 | 1989 | 1 | |
| H4-1.8L-1781 CC-EA82T | 1988 | 1 | |
| H4-1.8L-1781 CC-EA82F | 1988 | 1 | |
| H4-1.8L-1781 CC-EA82F | 1988 | 1 | |
| H4-1.6L-1595 CC-EA6 | 1988 | 1 | |
| H4-1.8L-1781 CC-EA82T | 1988 | 1 | |
| H4-1.8L-1781 CC-EA82S | 1988 | 1 | |
| H4-1.8L-1781 CC-EA82F | 1988 | 1 | |
| H4-1.8L-1781 CC-EA82C | 1988 | 1 | |
| H4-1.8L-1781 CC-EA82T | 1988 | 1 | |
| H4-1.8L-1781 CC-EA82C | 1988 | 1 | |
| 1.8L F/INJ & TURBO | 1988 | 1 | |
| H6-2.7L-2672 CC-ER27 | 1988 | 1 | |
| H4-1.8L-1781 CC-EA82S | 1988 | 1 | |
| H4-1.8L-1781 CC-EA82 | 1988 | 1 | |
| H4-1.8L-1781 CC-EA82S | 1988 | 1 | |
| H4-1.8L-1781 CC-EA82C | 1987 | 1 | |
| H4-1.8L-1781 CC-EA82C | 1987 | 1 | |
| H4-1.8L-1781 CC-EA82F | 1987 | 1 | |
| H4-1.8L-1781 CC-EA82F | 1987 | 1 | |
| H4-1.8L-1781 CC-EA82S | 1987 | 1 | |
| H4-1.8L-1781 CC-EA82T | 1987 | 1 | |
| 1.8L | 1987 | 1 | |
| H4-1.8L-1781 CC-EA82 | 1987 | 1 | |
| H4-1.8L-1781 CC-EA82T | 1987 | 1 | |
| H4-1.8L-1781 CC-EA82F | 1987 | 1 | |
| H4-1.8L-1781 CC-EA82T | 1987 | 1 | |
| H4-1.8L-1781 CC-EA82S | 1987 | 1 | |
| H4-1.8L-1781 CC-EA82C | 1987 | 1 | |
| H4-1.8L-1781 CC-EA82S | 1987 | 1 | |
| H4-1.8L-1781 CC-EA82C | 1987 | 1 | |
| H4-1.8L-1781 CC-EA82T | 1987 | 1 | |
| H4-1.6L-1595 CC-EA6 | 1987 | 1 | |
| H4-1.8L-1781 CC-EA82C | 1987 | 1 | |
| 1.8L F/INJ & TURBO | 1987 | 1 | |
| H4-1.8L-1781 CC-EA82S | 1986 | 1 | |
| H4-1.8L-1781 CC-EA82C | 1986 | 1 | |
| H4-1.8L-1781 CC-EA82F | 1986 | 1 | |
| H4-1.8L-1781 CC-EA82C | 1986 | 1 | |
| H4-1.8L-1781 CC-EA82S | 1986 | 1 | |
| H4-1.8L-1781 CC-EA82T | 1986 | 1 | |
| H4-1.8L-1781 CC-EA82C | 1986 | 1 | |
| 1.8L | 1986 | 1 | |
| H4-1.8L-1781 CC-EA82T | 1986 | 1 | |
| 1.8L F/INJ & TURBO | 1986 | 1 | |
| H4-1.8L-1781 CC-EA82T | 1986 | 1 | |
| H4-1.8L-1781 CC-EA82T | 1986 | 1 | |
| H4-1.8L-1781 CC-EA82F | 1986 | 1 | |
| H4-1.8L-1781 CC-EA82 | 1986 | 1 | |
| H4-1.8L-1781 CC-EA82C | 1986 | 1 | |
| H4-1.6L-1595 CC-EA6 | 1986 | 1 | |
| H4-1.8L-1781 CC-EA82F | 1986 | 1 | |
| H4-1.8L-1781 CC-EA82C | 1986 | 1 | |
| H4-1.8L-1781 CC-EA82S | 1986 | 1 | |
| ALL ENGINES (1980-84) | 1985 | 1 | |
| H4-1.8L-1781 CC-EA82C | 1985 | 1 | |
| H4-1.8L-1781 CC-EA82C | 1985 | 1 | |
| H4-1.8L-1781 CC-EA82S | 1985 | 1 | |
| H4-1.8L-1781 CC-EA82F | 1985 | 1 | |
| ALL ENGINES (1980-84) | 1985 | 1 | |
| H4-1.8L-1781 CC-EA82S | 1985 | 1 | |
| H4-1.8L-1781 CC-EA82 | 1985 | 1 | |
| H4-1.6L-1595 CC-EA6 | 1985 | 1 | |
| ALL ENGINES (1980-84) | 1985 | 1 | |
| H4-1.8L-1781 CC-EA82F | 1985 | 1 | |
| H4-1.8L-1781 CC-EA82T | 1985 | 1 | |
| ALL ENGINES (1980-84) | 1985 | 1 | |
| H4-1.8L-1781 CC-EA82C | 1985 | 1 | |
| H4-1.8L-1781 CC-EA82T | 1985 | 1 | |
| ALL ENGINES (1980-84) | 1985 | 1 | |
| H4-1.8L-1781 CC-EA82T | 1985 | 1 | |
| H4-1.8L-1781 CC-EA82C | 1985 | 1 | |
| H4-1.8L-1781 CC-EA81 | 1984 | 1 | |
| H4-1.8L-1781 CC-EA81T | 1984 | 1 | |
| H4-1.8L-1781 CC-EA81T | 1984 | 1 | |
| H4-1.8L-1781 CC-EA81 | 1984 | 1 | |
| H4-1.8L-1781 CC-EA81T | 1984 | 1 | |
| H4-1.6L-1595 CC-EA71 | 1984 | 1 | |
| H4-1.6L-1595 CC-EA71 | 1984 | 1 | |
| H4-1.8L-1781 CC-EA81 | 1984 | 1 | |
| H4-1.8L-1781 CC-EA81 | 1984 | 1 | |
| H4-1.8L-1781 CC-EA81 | 1984 | 1 | |
| H4-1.6L-1595 CC-EA71 | 1984 | 1 | |
| H4-1781 CC (1.8L) CARB | 1983 | 1 | |
| H4-1781 CC (1.8L) TURBO | 1983 | 1 | |
| H4-1781 CC (1.8L) CARB | 1983 | 1 | |
| H4-1781 CC (1.8L) TURBO | 1983 | 1 | |
| H4-1781 CC (1.8L) CARB | 1983 | 1 | |
| H4-1595 CC (1.6L) CARB | 1983 | 1 | |
| H4-1781 CC (1.8L) CARB | 1983 | 1 | |
| H4-1595 CC (1.6L) CARB | 1983 | 1 | |
| H4-1595 CC (1.6L) CARB | 1983 | 1 | |
| H4-1781 CC (1.8L) CARB | 1983 | 1 | |
| H4-1595 CC (1.6L) CARB | 1982 | 1 | |
| H4-1781 CC (1.8L) CARB | 1982 | 1 | |
| H4-1595 CC (1.6L) CARB | 1982 | 1 | |
| H4-1781 CC (1.8L) CARB | 1982 | 1 | |
| H4-1781 CC (1.8L) CARB | 1982 | 1 | |
| H4-1595 CC (1.6L) CARB | 1982 | 1 | |
| H4-1781 CC (1.8L) CARB | 1982 | 1 | |
| H4-1781 CC (1.8L) CARB | 1982 | 1 | |
| 4 CYL (1.4L) 1397 CC | 1981 | 1 | |
| 4 CYL (1.2L) 1237 CC | 1981 | 1 | |
| 4 CYL (1.5L) 1488 CC | 1981 | 1 | |
| CARB | 1981 | 1 | |
| 4 CYL (1.5L) 1488 CC | 1981 | 1 | |
| 4 CYL (1.5L) 1488 CC | 1980 | 1 | |
| 4 CYL (1.4L) 1397 CC | 1980 | 1 | |
| 4 CYL (1.2L) 1237 CC | 1980 | 1 | |
| 4 CYL (1.4L) 1397 CC | 1979 | 1 | |
| CARB | 1978 | 1 | |
| 4 CYL (1.4L) 1397 CC | 1978 | 1 | |
| 4 CYL (1.4L) 1397 CC | 1977 | 1 | |
| CARB | 1977 | 1 | |
| CARB | 1975 | 1 | |
| 4 CYL (1.4L) 1397 CC | 1975 | 1 | |
| W4 | 1 | ||
| BS | 1 | ||
| H 20 | 1 | ||
| H 20 | 1 | ||
| 1 | |||
| V1505-E3-D21-Q2 | 1 | ||
| 1 | |||
| H 20 | 1 | ||
| 1 |
