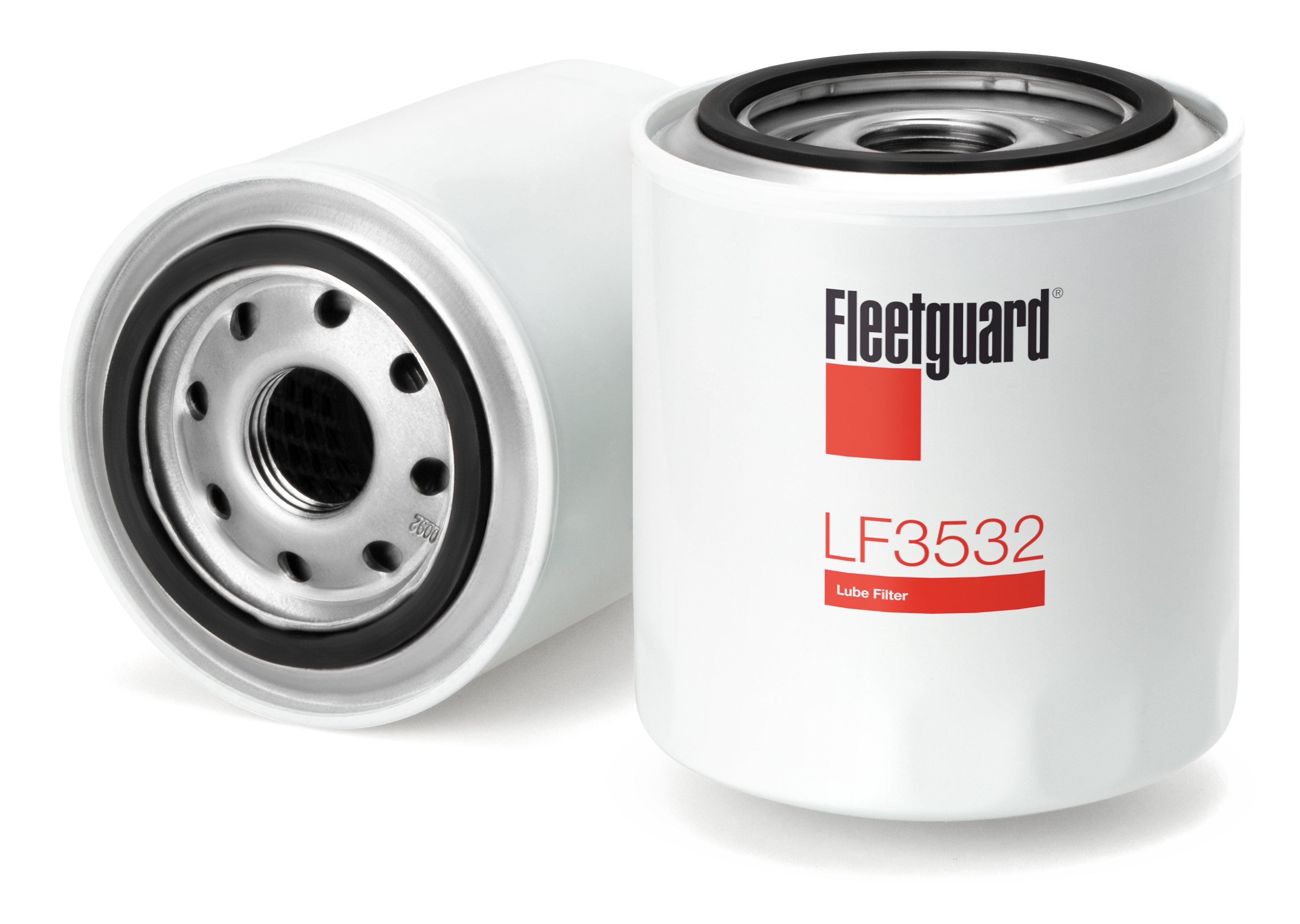

Specification
DOWNLOAD SPECS| Thread Size | 1-12 UNF 2B |
| Gasket OD | 2.83 inch / 71.98 mm |
| Length | 4.27 inch / 108.53 mm |
| Rated Flow | 3.70 gpm / 14.00 L/min |
| Hydrostatic Burst Minimum | 203.00 psi / 1400.00 kPa |
| Primary Particle Efficiency | 30.00 micron (c) @ 68% |
| Test Specification | SAE J1858 |
| Gasket Inside Diameter | 2.46 inch / 62.53 mm |
| Largest OD | 3.70 inch / 94.00 mm |
| Efficiency Test Std | SAE J1858 |
| Pressure Valve Opening Pressure | 152.00 kPa |
| Pressure Valve | Yes |
| Media Type | Cellulose |
| Applicable Region | North America, Europe, South America, South East Asia, South Pacific, Mexico and Central America |
Related Parts
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| D179 | 1 | ||
| DT239 | 1 | ||
| D239 | 1 | ||
| 6D95L-1AD | 2012 | 1 | |
| 1 | |||
| 1 | |||
| 1 | |||
| BD264 | 1 | ||
| 6D95L | 1 | ||
| 1 | |||
| 6D95L-1 | 1 | ||
| 1 | |||
| 1 | |||
| 4D95L | 1 | ||
| 1 | |||
| 4D95L-1 | 1 | ||
| 4D95L | 1 | ||
| 1 | |||
| 6D95L-1 | 1 | ||
| 4D95L-1 | 1 | ||
| 6D95L | 1 | ||
| 1 | |||
| S6D95L | 1 | ||
| 6D95L | 1 | ||
| 6D95L | 1 | ||
| 1 | |||
| 1 | |||
| BD264 | 1 | ||
| S6D95L-1 | 1 | ||
| 1 | |||
| 1 | |||
| D-358 | 1 | ||
| C-291 | 1 | ||
| CASEI | 1 | ||
| 1 | |||
| C-200 | 1 | ||
| 1 | |||
| CASEI | 1 | ||
| 1 | |||
| D239 | 1 | ||
| D239 | 1 | ||
| D310 | 1 | ||
| C175 | 1 | ||
| CASEI | 1 | ||
| D239 | 1 | ||
| CASEI | 1 | ||
| CASEI | 1 | ||
| CASEI | 1 | ||
| CASEI | 1 | ||
| CASEI | 1 | ||
| CASEI | 1 | ||
| CASEI | 1 | ||
| 1 | |||
| D179 | 1 | ||
| C221 | 1 | ||
| C-291 | 1 | ||
| 1 | |||
| D239 | 1 | ||
| C-200 | 1 | ||
| D-358 | 1 | ||
| D179 | 1 | ||
| 1 | |||
| 1 | |||
| D310 | 1 | ||
| CASEI | 1 | ||
| D-206 | 1 | ||
| 1 | |||
| 1 | |||
| D310 | 1 | ||
| 1 | |||
| 1 | |||
| D179 | 1 | ||
| 1 | |||
| D-206 | 1 | ||
| C263 | 1 | ||
| 1 | |||
| LPG | 1 | ||
| D239 | 1 | ||
| D407 | 2 | ||
| CASEI | 1 | ||
| CASEI | 1 | ||
| 1 | |||
| D310 | 1 | ||
| 1 | |||
| D268 | 1 | ||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| CASEI | 1 | ||
| CASEI | 1 | ||
| C175 | 1 | ||
| 1 | |||
| D-358 | 1 | ||
| C221 | 1 | ||
| D310 | 1 | ||
| D239 | 1 | ||
| D239 | 1 | ||
| D-246 | 1 | ||
| D-358 | 1 | ||
| 1 | |||
| CASEI | 1 | ||
| C263 | 1 | ||
| D310 | 1 | ||
| D310 | 1 | ||
| D-358 | 1 | ||
| 1 | |||
| C-291 | 1 | ||
| D-358 | 1 | ||
| C282 | 1 | ||
| D239 | 1 | ||
| C-291 | 1 | ||
| CASEI | 1 | ||
| 1 | |||
| 1 | |||
| D310 | 1 | ||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| D239 | 1 | ||
| C-291 | 1 | ||
| C-291 | 1 | ||
| C263 | 1 | ||
| BD264 | 1 |
