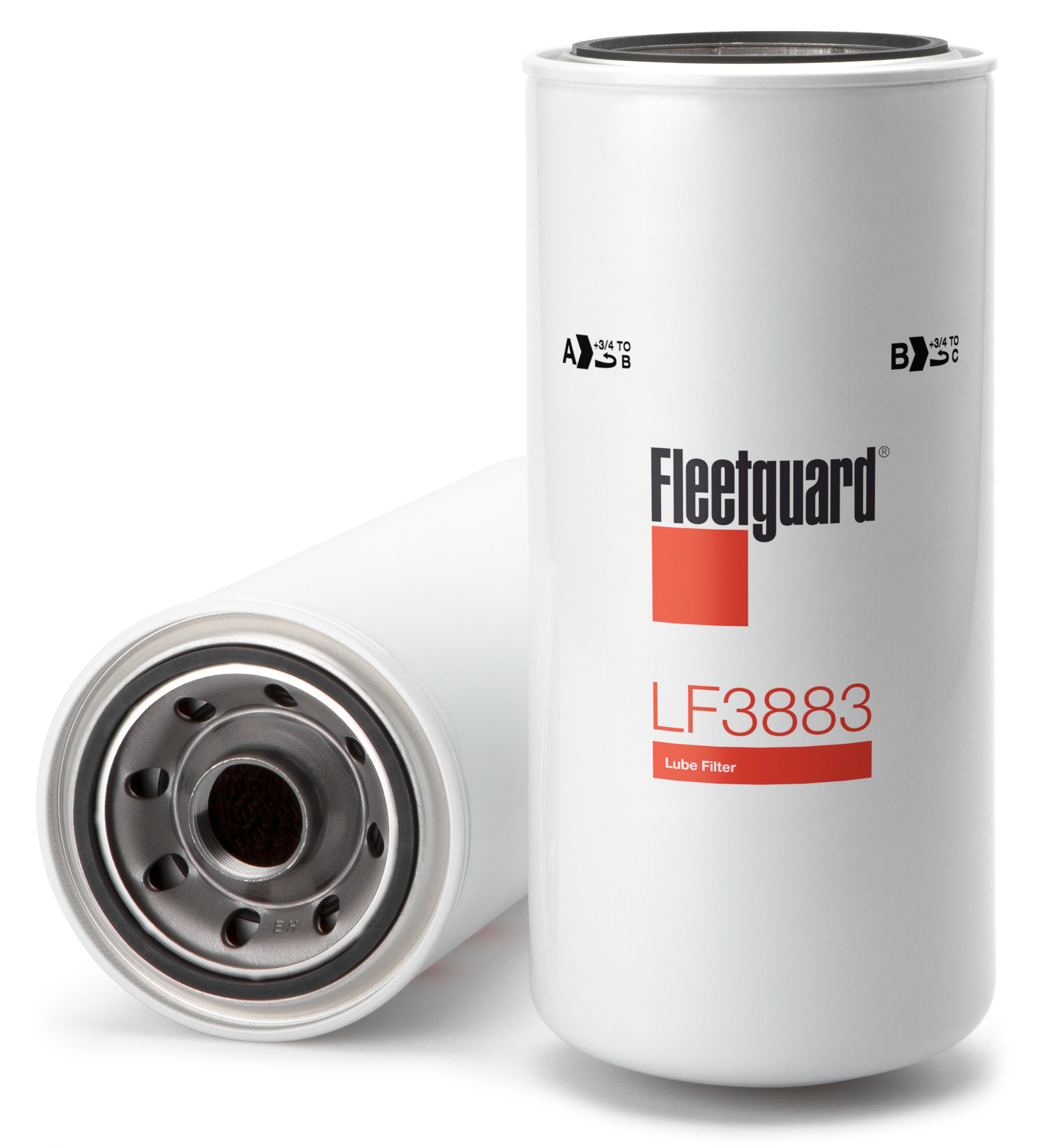

Specification
DOWNLOAD SPECS| Thread Size | M36X1.5-7H |
| Gasket Inside Diameter | 3.93 inch / 99.82 mm |
| Largest OD | 5.39 inch / 136.91 mm |
| Pressure Valve | Yes |
| Rated Flow | 0.75 gpm / 2.85 L/min |
| Gasket OD | 4.30 inch / 109.22 mm |
| Length | 12.19 inch / 309.65 mm |
| Media Type | Cellulose |
| Hydrostatic Burst Minimum | 199.95 psi / 1378.95 kPa |
| Applicable Region | North America, China, Europe, South America, South East Asia, South Pacific, Mexico and Central America |
Related Parts
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| DT466 | 2017 | 1 | |
| MaxxForce DT | 2016 | 1 | |
| DT466E | 2016 | 1 | |
| DT466 | 2016 | 1 | |
| MaxxForce DT | 2015 | 1 | |
| DT466 | 2015 | 1 | |
| DT466E | 2015 | 1 | |
| DT466E | 2014 | 1 | |
| DT466 | 2014 | 1 | |
| MaxxForce DT | 2014 | 1 | |
| DT466E | 2013 | 1 | |
| DT466 | 2013 | 1 | |
| MaxxForce DT | 2013 | 1 | |
| DT466E | 2012 | 1 | |
| MaxxForce DT | 2012 | 1 | |
| MaxxForce DT | 2011 | 1 | |
| MaxxForce DT | 2011 | 1 | |
| MaxxForce DT | 2011 | 1 | |
| DT466E | 2011 | 1 | |
| MaxxForce 7 | 2010 | 1 | |
| MaxxForce DT | 2010 | 1 | |
| DT466E | 2010 | 1 | |
| MaxxForce DT | 2010 | 1 | |
| MaxxForce DT | 2010 | 1 | |
| DT466 | 2010 | 1 | |
| DT466 (7.6L) | 2009 | 1 | |
| DT466E | 2009 | 1 | |
| DT466E | 2009 | 1 | |
| DT466E | 2008 | 1 | |
| DT530 | 2008 | 1 | |
| DT530 | 2008 | 1 | |
| DT530 | 2008 | 1 | |
| DT466 | 2008 | 1 | |
| DT530 | 2008 | 1 | |
| DT466 | 2008 | 1 | |
| DT466E | 2008 | 1 | |
| DT466E | 2008 | 1 | |
| DT466 | 2008 | 1 | |
| DT466 | 2008 | 1 | |
| DT466 | 2007 | 1 | |
| DT466 | 2007 | 1 | |
| DT466E | 2007 | 1 | |
| DT530 | 2007 | 1 | |
| DT530 | 2007 | 1 | |
| DT466 | 2007 | 1 | |
| DT466E | 2007 | 1 | |
| DT466 | 2007 | 1 | |
| DT466 | 2007 | 1 | |
| DT530 | 2007 | 1 | |
| DT530 | 2006 | 1 | |
| DT530 | 2006 | 1 | |
| DT466 | 2006 | 1 | |
| DT466E | 2006 | 1 | |
| DT466 | 2006 | 1 | |
| HT570 | 2006 | 1 | |
| DT530 | 2006 | 1 | |
| DT570 | 2006 | 1 | |
| DT466E | 2005 | 1 | |
| DT530 | 2005 | 1 | |
| DT530 | 2005 | 1 | |
| DT466 | 2005 | 1 | |
| DT466 | 2005 | 1 | |
| DT570 | 2005 | 1 | |
| DT530 | 2005 | 1 | |
| DT466 | 2005 | 1 | |
| DT530 | 2004 | 1 | |
| DT466E | 2004 | 1 | |
| DT530 | 2004 | 1 | |
| DT466 | 2004 | 1 | |
| DT530 | 2004 | 1 | |
| DT466 | 2004 | 1 | |
| DT530 | 2003 | 1 | |
| DT466 | 2003 | 1 | |
| DT466E | 2003 | 1 | |
| DT466 | 2003 | 1 | |
| DT530 | 2003 | 1 | |
| DT530 | 2003 | 1 | |
| DT530 | 2002 | 1 | |
| DT466 | 2002 | 1 | |
| DT530 | 2002 | 1 | |
| DT530 | 2002 | 1 | |
| DT466E | 2002 | 1 | |
| DT530 | 2001 | 1 | |
| DT466E | 2001 | 1 | |
| DT530 | 2001 | 1 | |
| DT530 | 2001 | 1 | |
| DT530 | 2001 | 1 | |
| DT466 | 2001 | 1 | |
| DT466 | 2001 | 1 | |
| DT466 | 2000 | 1 | |
| DT466 | 2000 | 1 | |
| DT466 | 2000 | 1 | |
| DT530 | 2000 | 1 | |
| DT530 | 2000 | 1 | |
| DT530 | 2000 | 1 | |
| DT530 | 2000 | 1 | |
| DT466E | 1999 | 1 | |
| DT466 | 1999 | 1 | |
| DT466E | 1999 | 1 | |
| DT466E | 1999 | 1 | |
| DT466E | 1999 | 1 | |
| DT466 | 1998 | 1 | |
| DT466 | 1997 | 1 | |
| DT466 | 1997 | 1 | |
| DT466 | 1996 | 1 | |
| DT466 | 1996 | 1 | |
| DTA530 | 1994 | 1 | |
| DTA408 | 1994 | 1 | |
| DT408 | 1 | ||
| DTA466C | 1 | ||
| DT530 | 1 | ||
| DT466 | 1 | ||
| DT466E | 1 | ||
| DTA466 | 1 | ||
| DTA466 | 1 | ||
| DT530 | 1 | ||
| DTA408 | 1 | ||
| DT530 | 1 | ||
| DTA530 | 1 | ||
| DTA466 | 1 | ||
| DTI466C | 1 | ||
| DT466C | 1 | ||
| DT408 | 1 | ||
| DT466B | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DVT466 | 1 | ||
| DT530 | 1 | ||
| DT466 | 1 | ||
| DTA466 | 1 | ||
| DTA466 | 1 | ||
| 8.7L | 1 | ||
| DTI466 | 1 | ||
| DT530 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DTA466 | 1 | ||
| DTA466 | 1 | ||
| DT466 | 1 | ||
| DTA466 | 1 | ||
| DT408 | 1 | ||
| DT530 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DT408 | 1 | ||
| DT530 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DT530 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DT530 | 1 | ||
| DT530 | 1 | ||
| DT530 | 1 | ||
| DT530 | 1 | ||
| DT530 | 1 | ||
| DT466C | 1 | ||
| DTA466 | 1 | ||
| DTA466C | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DTA466C | 1 | ||
| DT466E | 1 | ||
| DT530 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DT408 | 1 | ||
| DT530 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DT530 | 1 | ||
| HT530 | 1 | ||
| DT530 | 1 | ||
| DT530 | 1 | ||
| DT530 | 1 | ||
| DT408 | 1 | ||
| DT530 | 1 | ||
| HT530 | 1 | ||
| DT466 | 1 | ||
| HT530 | 1 | ||
| HT530 | 1 | ||
| DT466 | 1 | ||
| DT530 | 1 | ||
| DT466 | 1 | ||
| DT530 | 1 | ||
| DT466 | 2019 | 1 | |
| DT466 | 2018 | 1 | |
| DT466 | 2018 | 1 | |
| DT466 | 2016 | 1 | |
| DT466 | 2015 | 1 | |
| DT466 | 2010 | 1 | |
| MaxxForce DT | 2009 | 1 | |
| DT466 | 2009 | 1 | |
| DT466 | 2008 | 1 | |
| MaxxForce DT | 2008 | 1 | |
| DT530 | 2007 | 1 | |
| DT466 | 2006 | 1 | |
| DT466 | 1 | ||
| DT466 | 1 | ||
| DT530 | 1 | ||
| DT530 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DT466 | 1 | ||
| DT530 | 1 | ||
| SERIES 40 | 1 | ||
| DT466 | 1 | ||
| DT466E | 1 | ||
| SERIES 40 | 1 | ||
| DT530 | 2018 | 1 | |
| DT466 | 2017 | 1 | |
| DT530 | 2017 | 1 | |
| DT466 | 2014 | 1 | |
| QSB 6.7 | 2013 | 1 | |
| DT466 | 2012 | 1 | |
| DT466 | 2011 | 1 | |
| DT530 | 2009 | 1 | |
| DT530 | 2008 | 1 | |
| DT466 | 2002 | 1 | |
| DT466 | 2002 | 1 | |
| 1306.9TA5 | 1996 | 1 | |
| DT466 | 1990 | 1 | |
| DT466 | 1990 | 1 | |
| 1306C-E87TAG4 | 1 | ||
| 1306C-E87TAG6 | 1 | ||
| S40E | 1 | ||
| 1 | |||
| SERIES 40 | 1 | ||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| E87TG | 1 | ||
| 1306.9TA5 | 1 | ||
| S40E | 1 | ||
| 1306-E87TA | 1 | ||
| 1306-E87T | 1 | ||
| SERIES 40 | 1 | ||
| 1 | |||
| 1306-E87TAG3 | 1 | ||
| DT466 | 1 | ||
| DT408 | 1 | ||
| S40E | 1 | ||
| CAT | 1 | ||
| 40E | 1 | ||
| 1306-E87TAG1 | 1 | ||
| 1 | |||
| 1 | |||
| 1306C-E87TAG6 | 1 | ||
| 1 |
