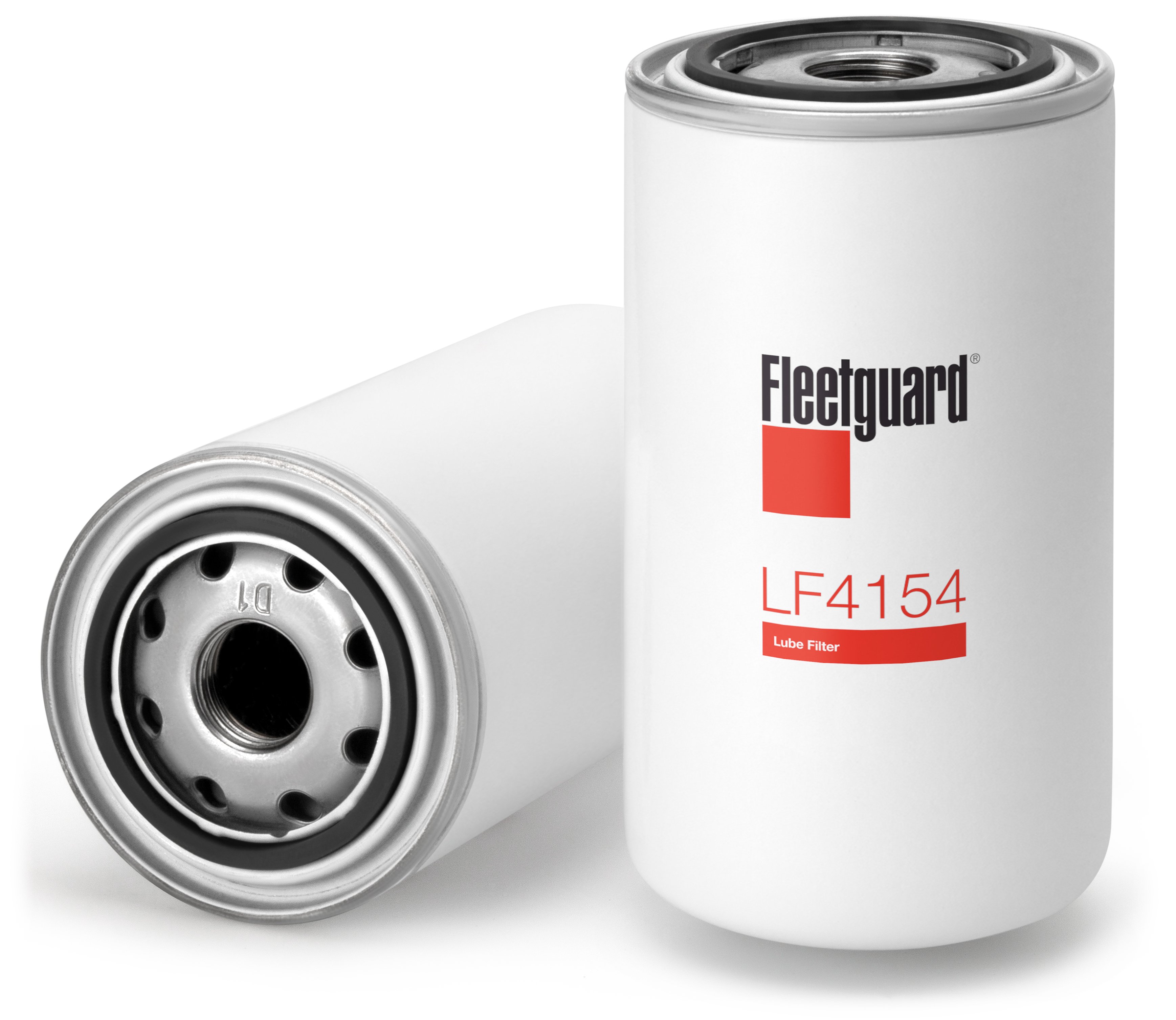

Specification
DOWNLOAD SPECS| Thread Size | 1-12 UNF 2B |
| Gasket OD | 2.76 inch / 70.00 mm |
| Largest OD | 3.68 inch / 93.50 mm |
| Rated Flow | 13.21 gpm / 50.00 L/min |
| Hydrostatic Burst Minimum | 217.50 psi / 1500.00 kPa |
| Primary Particle Efficiency | 50.00 micron (c) @ 95% |
| Length / Overall Height | 6.85 inch / 174.10 mm |
| Gasket Inside Diameter | 2.44 inch / 62.00 mm |
| Length | 6.85 inch / 174.10 mm |
| Efficiency Test Std | ISO 4548-12 |
| Pressure Valve Opening Pressure | 250.00 kPa |
| Pressure Valve | Yes |
| Test Specification | ISO 4548-12 |
| Applicable Region | North America, Europe, South America, South East Asia, South Pacific |
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| 6.0L | 2019 | 1 | |
| F10/12L413 | 1 | ||
| F6/8L413 | 1 | ||
| F6L413F | 1 | ||
| F10L413 | 1 | ||
| F6L413 | 1 | ||
| F10L413 | 1 | ||
| F12L413F | 1 | ||
| F8L413 | 1 | ||
| F6L413 | 1 | ||
| F8L413 | 1 | ||
| F8L413 | 1 | ||
| F8L413F | 1 | ||
| DEUTZ | 1 | ||
| F12L413F | 1 | ||
| F6L413 | 1 | ||
| F8L413 | 1 | ||
| F8L413 | 1 | ||
| F6L413F | 1 | ||
| F10L413 | 1 | ||
| F8L413 | 1 | ||
| F8L413F | 1 | ||
| F8L413 | 1 | ||
| F 6L 912 | 1 | ||
| F12L413+BF12L413 | 1 | ||
| F8L413F | 1 | ||
| F6/8L413 | 1 | ||
| F6L413 | 1 | ||
| F8L413 | 1 | ||
| F6L413 | 1 | ||
| F12L413F | 1 | ||
| F6L413 | 1 | ||
| F 6L 912 | 1 | ||
| F6L413 | 1 | ||
| F6L413 | 1 | ||
| F8L413F | 1 | ||
| F8L413 | 1 | ||
| F6/8L413 | 1 | ||
| F6/8L413 | 1 | ||
| F 6L 912 | 1 | ||
| F6L413 | 1 | ||
| F12L413+BF12L413 | 1 | ||
| F6/8L413 | 1 | ||
| F10L413 | 1 | ||
| F6/8L413 | 1 | ||
| F6L413 | 1 | ||
| F12L413 | 1 | ||
| F6L413 | 1 | ||
| F 6L 912 | 1 | ||
| F6L413 | 1 | ||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| Z1206 Tier3B | 2018 | 1 | |
| Z1005/Z1305 | 2012 | 1 | |
| Z1005/Z1305 | 2012 | 1 | |
| Z1005/Z1305 | 2011 | 1 | |
| Z1005/Z1305 | 2011 | 1 | |
| 1405 | 2010 | 1 | |
| 1305 | 2010 | 1 | |
| 1505 | 2010 | 1 | |
| 1005 | 2010 | 1 | |
| Z 1203 | 2008 | 1 | |
| Z 1003 | 2008 | 1 | |
| XF315M | 1998 | 2 | |
| 1992 | 1 | ||
| 1992 | 1 | ||
| 1991 | 1 | ||
| 1991 | 1 | ||
| 1991 | 1 | ||
| 1991 | 1 | ||
| 825 HT168 | 1990 | 1 | |
| DKXE1160 ATI | 1985 | 1 | |
| DHS825 | 1982 | 1 | |
| DHTD825 | 1981 | 1 | |
| DHT825 | 1981 | 1 | |
| DHU825 | 1978 | 1 | |
| DH825 | 1978 | 1 | |
| DHT825 | 1978 | 1 | |
| DHR825 | 1978 | 1 | |
| DH825 | 1978 | 1 | |
| DHT825 | 1978 | 1 | |
| DU825 | 1978 | 1 | |
| DHU825 | 1978 | 1 | |
| DH825 | 1978 | 1 | |
| DHR825 | 1978 | 1 | |
| DHU825 | 1978 | 1 | |
| DHR825 | 1978 | 1 | |
| F10L413 | 1975 | 1 | |
| DKS1160/DKSE&DKTD 1160 | 1974 | 1 | |
| F6L413 | 1974 | 1 | |
| F6L413 | 1974 | 1 | |
| F8L413 | 1974 | 1 | |
| F8L413 | 1974 | 1 | |
| F8L413 | 1974 | 1 | |
| F8L413 | 1974 | 1 | |
| DKTD1160 | 1974 | 1 | |
| F8L413 | 1974 | 1 | |
| F6L413 | 1974 | 1 | |
| F6L413 | 1974 | 1 | |
| F6L413 | 1974 | 1 | |
| DKSE1160 | 1974 | 1 | |
| F6L413 | 1974 | 1 | |
| DH825 | 1973 | 1 | |
| 6.372/KHD/MB | 1973 | 1 | |
| 6.372/KHD/MB | 1973 | 1 | |
| 6.372/KHD/MB | 1973 | 1 | |
| 6.372/KHD/MB | 1973 | 1 | |
| DH825 | 1973 | 1 | |
| DU825 | 1973 | 1 | |
| DH825 | 1973 | 1 | |
| DU825 | 1973 | 1 | |
| DHB825 | 1973 | 1 | |
| DU825 | 1973 | 1 | |
| DHB825 | 1973 | 1 | |
| DHB825 | 1973 | 1 | |
| 1971 | 1 | ||
| 1970 | 1 | ||
| F8L413 | 1 | ||
| 1 | |||
| Z1301T | 1 | ||
| 6.660E | 1 | ||
| F6L413 | 1 | ||
| F6L413 | 1 | ||
| Z1301T | 1 | ||
| F8L413F | 1 | ||
| F6L413 | 1 | ||
| F8L413 | 1 | ||
| F6L413R | 1 | ||
| 1 | |||
| 1 | |||
| F10L413 | 1 | ||
| DH825 | 1 | ||
| F8L413F | 1 | ||
| DH825 | 1 | ||
| F10L413 | 1 | ||
| F6L413 | 1 | ||
| F6L413R | 1 | ||
| F8L413 | 1 | ||
| F8L413 | 1 | ||
| F5L413R-FR | 2 | ||
| F10L413F | 1 | ||
| F6L413F | 1 | ||
| F6L413 | 1 | ||
| 1 | |||
| F6L413 | 1 | ||
| 1 | |||
| F5L912 | 1 | ||
| DHT825 | 1 | ||
| 1 | |||
| 1 | |||
| F6L413R | 1 | ||
| 1 | |||
| F6L413 | 1 | ||
| F8L413 | 1 | ||
| F6L413 | 1 | ||
| F6L413F | 1 | ||
| F6L413R | 1 | ||
| 1 | |||
| DT615 | 1 | ||
| F10L413F | 1 | ||
| F5L413R | 1 | ||
| F10L413 | 1 | ||
| F6L413 | 1 | ||
| F10L413 | 1 | ||
| F6L413 | 1 | ||
| 401TI | 1 | ||
| F6L413 | 1 | ||
| 1 | |||
| F5L912 | 1 | ||
| F6L413 | 1 | ||
| DHS825 | 1 | ||
| 1 | |||
| DHB825 | 1 | ||
| F 6L 912 | 1 | ||
| DU825 | 1 | ||
| F6L413F | 1 | ||
| DU825 | 1 | ||
| F12L413F | 1 | ||
| 8.25 L | 1 | ||
| F8L413 | 2 | ||
| F6L413 | 1 | ||
| DHS825 | 1 | ||
| F8L413 | 2 | ||
| F12L413 | 1 | ||
| F12L413 | 1 | ||
| F10L413 | 1 | ||
| F6L413 | 1 | ||
| DH825 | 1 | ||
| F10L413 | 1 | ||
| F6L413 | 1 | ||
| F8L413 | 1 | ||
| F8L413 | 1 | ||
| F10L413 | 1 | ||
| F12L413F | 1 | ||
| F10L413 | 1 | ||
| 1 | |||
| F8L413 | 1 | ||
| F6/8L413F | 2 | ||
| F6L413 | 1 | ||
| DH615 | 1 | ||
| DHS/DHTD 825 | 1 | ||
| DHS/DH/DHTD 825 | 1 | ||
| 1160 KT191 | 2 | ||
| F6L413R | 1 | ||
| DHS825 | 1 | ||
| F8L714 | 1 | ||
| F12L413 | 1 | ||
| F6L413 | 1 | ||
| F6L413 | 1 | ||
| 1 | |||
| 1 | |||
| DHB825 | 1 | ||
| F5L413R | 1 | ||
| DHR825 | 1 | ||
| DEUTZ | 1 | ||
| F10L413 | 1 | ||
| F12L413 | 1 | ||
| F10L413 | 1 | ||
| F8L413 | 1 | ||
| F8L413 | 1 | ||
| F6L413 | 1 | ||
| 1 | |||
| 825 HT168 | 1 | ||
| 1 | |||
| 6.660LE | 1 | ||
| F6L413F | 1 | ||
| BF12L413 | 1 | ||
| F10L413 | 1 | ||
| F8L413 | 2 | ||
| F6L413 | 1 | ||
| F12L413F | 1 | ||
| F8L413 | 1 | ||
| F12L413 | 1 | ||
| F6L413 | 1 | ||
| 1 | |||
| DU825 | 1 | ||
| F8L413 | 1 | ||
| 1 | |||
| F8L413 | 2 | ||
| 1 | |||
| F6L413 | 1 | ||
| F6L413 | 1 | ||
| F8L413F | 1 | ||
| F10L413 | 1 | ||
| 1 | |||
| F8L413 | 1 | ||
| F 6L 912 | 1 | ||
| F6L413F | 1 | ||
| 1 | |||
| F10L413 | 1 | ||
| F8L413 | 1 | ||
| F10L413 | 1 | ||
| F8L413 | 1 | ||
| BF12L413 | 1 | ||
| 1 | |||
| 8JT | 1 | ||
| F8L413F | 1 | ||
| F8L413F | 1 | ||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| 1 | |||
| F6L413 | 1 | ||
| F8L413V | 1 | ||
| F8L413F | 1 | ||
| F6L413 | 1 | ||
| F6L413 | 1 | ||
| F8L413F | 1 | ||
| F6L413 | 1 | ||
| 1 | |||
| 1 | |||
| F8L413 | 1 | ||
| F6L413 | 1 | ||
| F5L912 | 1 | ||
| 6.660ESC | 1 | ||
| F10L413 | 1 | ||
| F8L413F | 1 | ||
| F6L413F | 1 | ||
| 1 | |||
| F 6L 912 | 1 | ||
| DHR825 | 1 | ||
| DHT825 | 1 | ||
| 1 | |||
| F5L912 | 1 | ||
| F8L413F | 1 | ||
| F8L413 | 1 | ||
| F6L413 | 1 | ||
| 1 | |||
| F5L912 | 1 | ||
| F10L413 | 1 | ||
| F6L413 | 2 | ||
| 1 | |||
| F8L413 | 1 | ||
| 1 | |||
| 1 | |||
| F8L413F | 1 | ||
| F6L413 | 1 | ||
| DHS825 | 1 | ||
| 1 | |||
| 1 | |||
| DHT825 | 1 | ||
| 1 | |||
| F6L413 | 1 | ||
| F8L413 | 2 | ||
| F8L413 | 1 | ||
| F6L413 | 1 | ||
| F8L413 | 2 | ||
| BF12L413 | 1 | ||
| F6L413R-FR | 2 | ||
| F12L413 | 1 | ||
| F10L413 | 1 | ||
| DT615 | 1 | ||
| F10L413 | 1 | ||
| F8L413 | 1 | ||
| 1 | |||
| F10L413 | 1 | ||
| F8L413 | 1 | ||
| F6L413 | 1 | ||
| F8L413 | 1 | ||
| F6L413 | 1 | ||
| F6L413 | 1 | ||
| DHTD825 | 1 | ||
| 1 | |||
| BF8L413F | 1 | ||
| 1 | |||
| F5L912 | 1 | ||
| F12L413 | 1 | ||
| DHS/DH/DHTD 825 | 1 | ||
| F10L413 | 1 | ||
| DHT825 | 1 | ||
| 1 | |||
| F5L912 | 1 | ||
| DEUTZ | 1 | ||
| F6L413R | 1 | ||
| F6L413F | 1 | ||
| F8L413 | 1 | ||
| 1 | |||
| DEUTZ | 1 | ||
| F8L413 | 1 | ||
| F 6L 912 | 1 | ||
| 1 | |||
| F8L413 | 1 | ||
| 1 | |||
| F8L413F | 2 | ||
| F5L912 | 1 | ||
| F6L413F | 1 | ||
| F8L413 | 1 | ||
| F8L413 | 1 | ||
| 1 | |||
| F8L413F | 1 | ||
| F8L714 | 1 | ||
| 1 | |||
| DHS825 | 1 | ||
| F6L413 | 1 | ||
| F6L413 | 1 | ||
| DHU825 | 1 | ||
| F6L413 | 1 | ||
| 1 | |||
| F6L413F | 2 | ||
| 1 | |||
| F8L413F | 1 | ||
| F8L413 | 2 | ||
| 200 ATI | 1 | ||
| F10L413 | 1 | ||
| 825 HT168 | 1 | ||
| 1 | |||
| 4.440E | 1 | ||
| DHR825 | 1 | ||
| F8L413 | 1 | ||
| 1 | |||
| F8L413 | 2 | ||
| F8L413 | 1 | ||
| F6L413 | 1 | ||
| F10L413F | 1 | ||
| 2 | |||
| 1 | |||
| F10L413 | 1 | ||
| F 6L 912 | 1 | ||
| 1 | |||
| DH615 | 1 | ||
| 1160 KT191 | 2 | ||
| 1 | |||
| F8L413 | 1 | ||
| F6L413R | 1 | ||
| 1 | |||
| F5L912 | 1 | ||
| DH825 | 1 | ||
| F8L413F | 1 | ||
| 1 |
