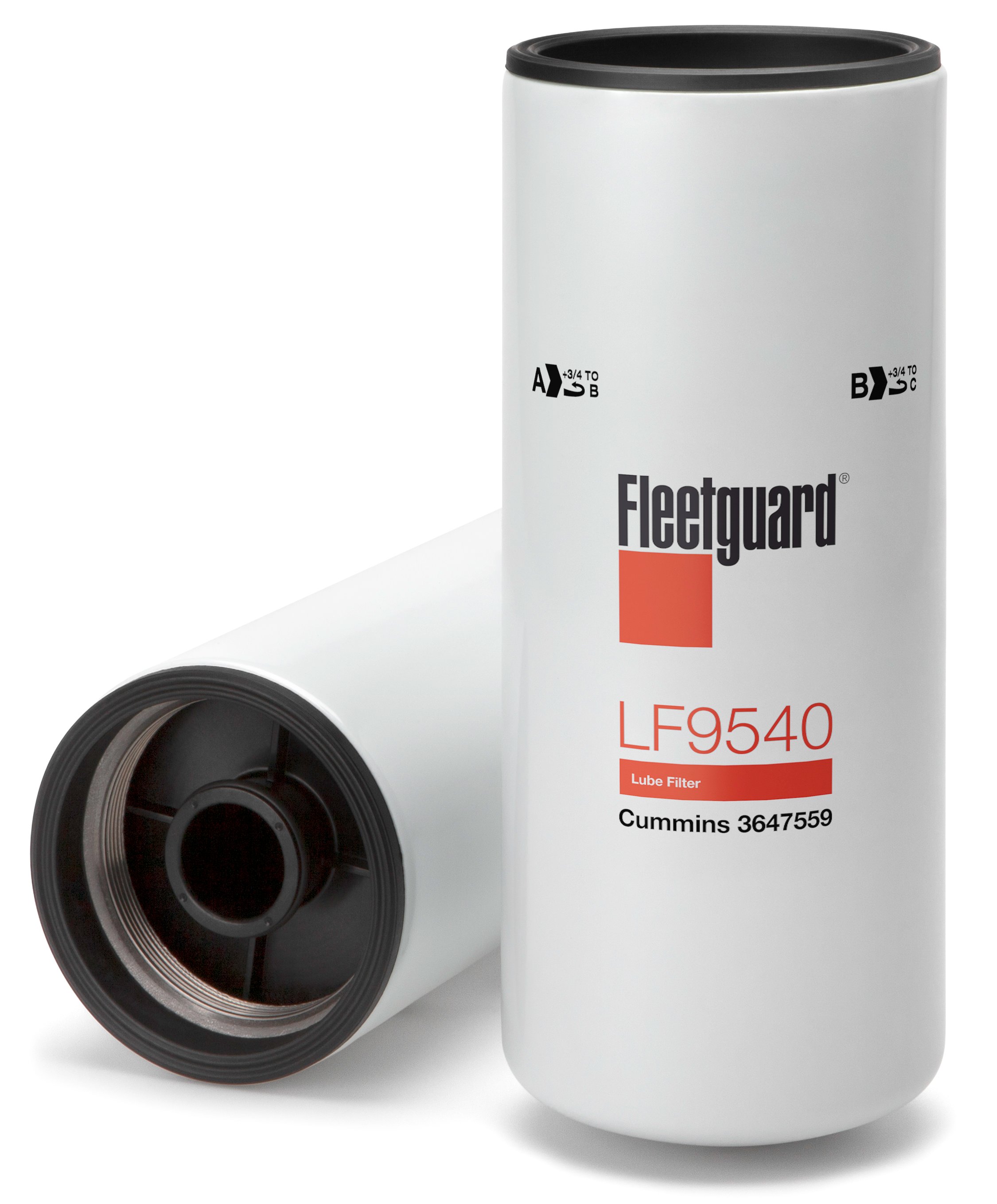

LF9540
Lube Filter, Spin-On
Fleetguard® LF9540 lube combo spin-on filter combines full-flow and by-pass filtration into one single filter developed to meet or exceed engine requirements. This unique arrangement of filtration provides the perfect balance between efficiency and low restriction to oil flow.
Please log in or sign up to add this product to your cart or wishlist.
Specification
DOWNLOAD SPECS| Media Type | StrataPore |
| Length | 11.70 inch / 297.30 mm |
| Efficiency Test Std | ISO 4548-12 |
| Gasket Inside Diameter | 4.00 inch / 101.60 mm |
| Primary Particle Efficiency | 20.00 micron (c) @ 98.7% |
| Largest OD | 4.74 inch / 120.30 mm |
| Gasket OD | 4.74 inch / 120.30 mm |
| Rated Flow | 44.02 gpm / 166.60 L/min |
| Hydrostatic Burst Minimum | 599.85 psi / 4136.90 kPa |
| Thread Size | M93X0.351-7H |
| Applicable Region | North America, China, Europe, South America, South East Asia, South Pacific, Mexico and Central America, APAC |
Product Comments
For Full Flow version, use LF17564.
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| QSK60G | 1 | ||
| K38 | 1 | ||
| K2000 | 1 | ||
| QST30 | 1 | ||
| K50 | 1 | ||
| QSK60 | 1 | ||
| QSK50 | 1 | ||
| QSK38 | 1 | ||
| GQSK60-GE | 1 | ||
| QSK50 | 2023 | 1 | |
| QSK50 | 2022 | 1 | |
| QSK50 | 2021 | 1 | |
| QSK50 | 2020 | 1 | |
| QSK50 | 2019 | 1 | |
| QSK50 | 2018 | 1 | |
| QSK50 | 2017 | 1 | |
| QSK50 | 2016 | 1 | |
| QSK60 | 2016 | 1 | |
| QSK50 | 2015 | 1 | |
| QSK60 | 2014 | 1 | |
| QSK50 | 2014 | 1 | |
| QSK60 | 2014 | 1 | |
| QSK50 | 2012 | 1 | |
| QSK19 | 2010 | 1 | |
| QST30-C950 | 2008 | 1 | |
| QSK60 | 2008 | 1 | |
| QSK60 TIER 2 | 2008 | 1 | |
| QSK60 | 2007 | 1 | |
| QSK19C | 1 | ||
| QSK23 | 1 |
