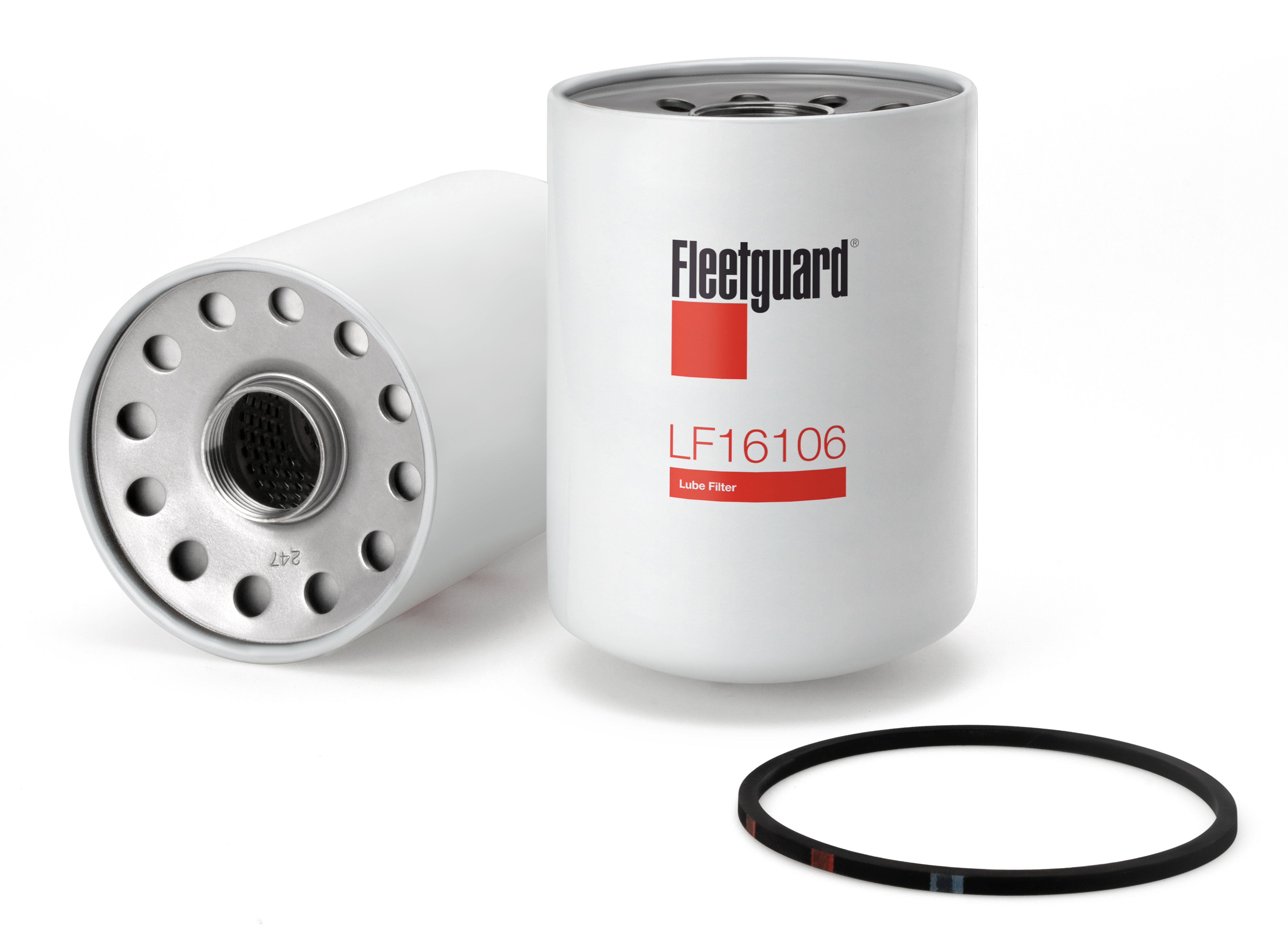

Specification
DOWNLOAD SPECS| Thread Size | 1.625-12 UNF 2B |
| Length | 7.19 inch / 182.55 mm |
| Gasket Inside Diameter | 4.71 inch / 119.63 mm |
| Pressure Valve | No |
| Largest OD | 5.08 inch / 128.93 mm |
| Gasket OD | 5.09 inch / 129.18 mm |
| Hydrostatic Burst Minimum | 199.95 psi / 1379.00 kPa |
| Rated Flow | 28.01 gpm / 106.00 L/min |
| Applicable Region | North America, China, Europe, South America, South East Asia, South Pacific, Mexico and Central America |
SEE ALL EQUIPMENT SEARCH RESULTS
| Equipment | Engine | Year | Qty. Req. |
|---|---|---|---|
| 6090 | 2019 | 1 | |
| 6090 | 2018 | 1 | |
| 6090 | 2017 | 1 | |
| 6090HT012 | 2014 | 1 | |
| 6090HT010 | 2014 | 1 | |
| 6090HDW11 | 1 | ||
| POWERTECH PSX6090HDW | 1 | ||
| POWERTECH PLUS 6090 SERIES | 1 | ||
| 6090HDW11 | 1 | ||
| 6090H | 1 | ||
| 6090HDW | 1 | ||
| 6090HDW18 | 1 | ||
| 6090HDW11 | 1 | ||
| 6090H | 1 | ||
| POWERTECH PSX6090HDW | 1 | ||
| 6090HDW11 | 1 | ||
| 6090HDW18 | 1 | ||
| 6090H | 1 | ||
| 6090HDW18 | 1 | ||
| POWERTECH PLUS 6090 SERIES | 1 | ||
| POWERTECH PSX6090HDW | 1 | ||
| 6090H | 1 | ||
| 1 | |||
| 6090HDW11 | 1 | ||
| 6090HDW18 | 1 | ||
| 6090HDW11 | 1 | ||
| 6090HDW18 | 1 | ||
| 1 | |||
| 6090HDW11 | 1 | ||
| POWERTECH PLUS 6090H | 1 | ||
| 6090HDW18 | 1 | ||
| 6081H | 1 | ||
| 6081H | 1 | ||
| 6090H | 1 | ||
| POWERTECH PSX6090HDW | 1 | ||
| 6090HDW11 | 1 | ||
| 6090HDW18 | 1 | ||
| 6090HDW18 | 1 |
