塞尔维亚的一家采矿运营商遇到了一个关键问题:燃油泵和喷油器寿命已降至低于预期水平的 50%,对维护成本和整体盈利能力造成了巨大压力。

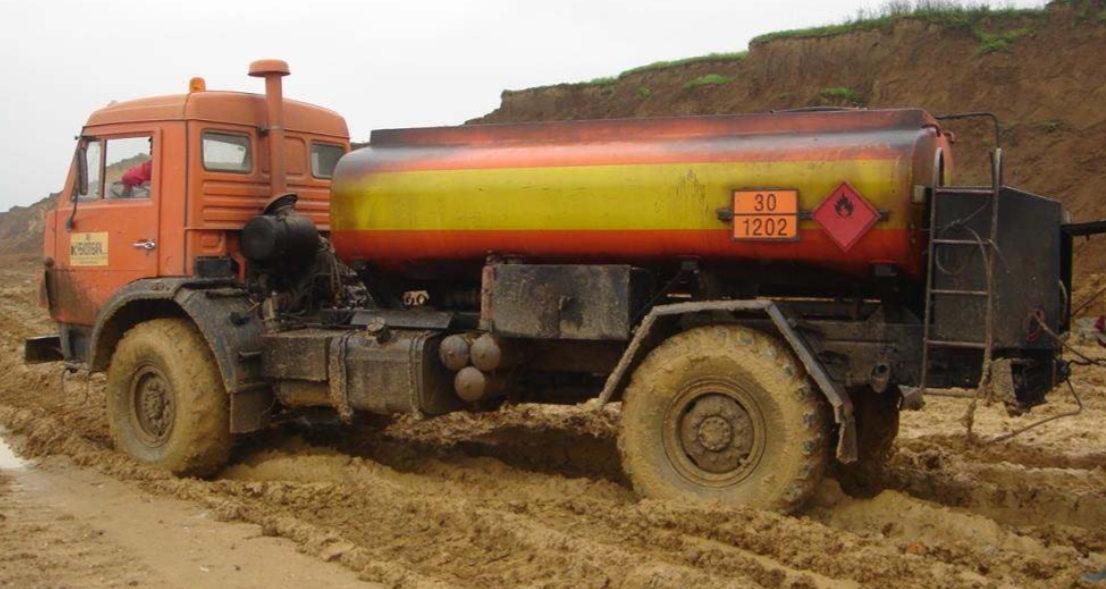

由于柴油消耗量约为每周 90,000 升,因此在整个运营过程中,即使效率低下的情况也得到了放大。 燃料储存在散装储罐中,每天通过移动罐车分配,但现场评估很快揭示了一个关键风险 - 两个阶段都没有进行过滤。

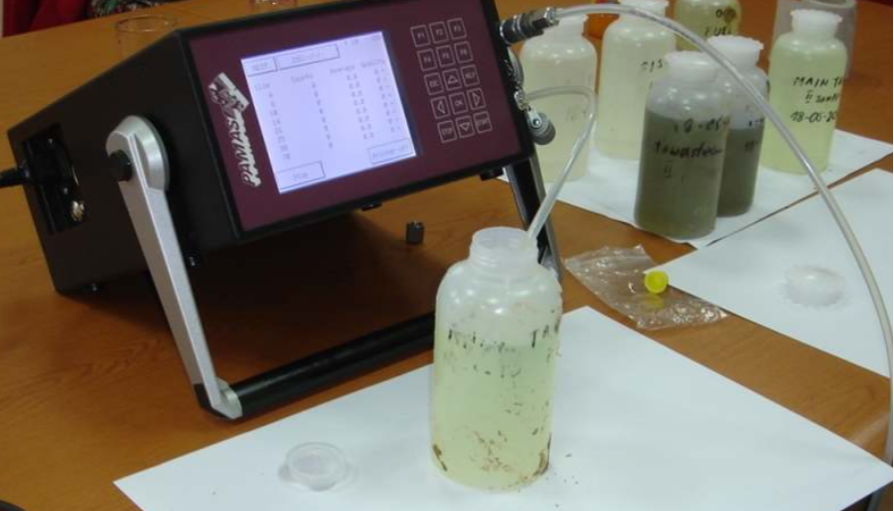

燃料取样证实了影响:在整个处理过程中,污染水平逐渐增加,到燃料进入发动机时达到高度破坏性水平。
在喷射时,与推荐的 ISO 4406 标准相比 23/20/16,燃油清洁度已降至 12/9/6 - 这一标准是保护现代高压燃油系统所需的水平。 这一间隙使关键组件暴露于加速磨损中,直接驱动观察到的过早故障。

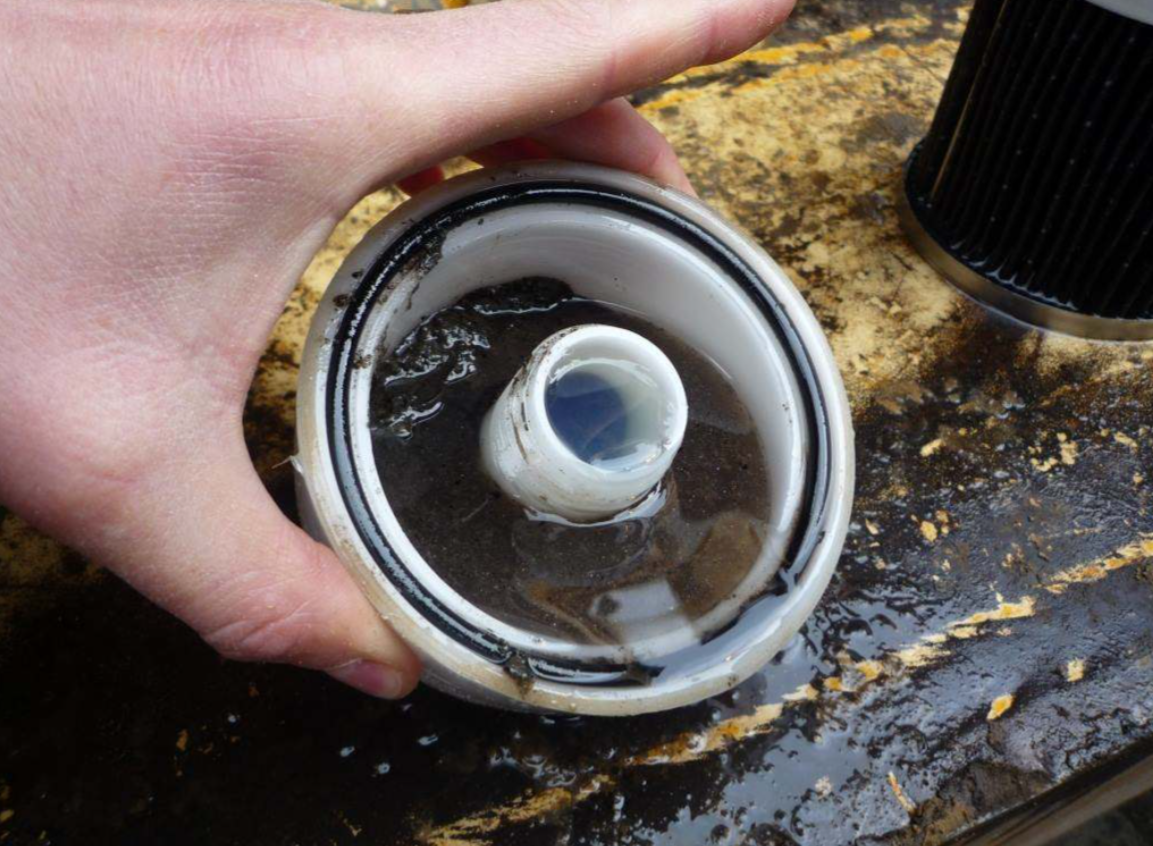

除了处理过程中的污染外,过滤系统本身还发现了进一步的风险。 Fleetguard FH234 主燃油滤清器上安装了一个没有排水管的非原装分离器碗,以防止水和碎屑的清除。 这使得污染物积聚并直接流入燃油系统。
同时,非纯正发动机滤清器取代了指定的 Fleetguard FF5644,削弱了关键燃油喷射部件的最后一道防线。
这些问题共同造成了一场完美的风暴 - 燃油质量差进入系统,同时降低了过滤保护 - 导致磨损增加、非计划停机和运营成本增加。
The Solution
Fleetguard 技术团队实施了有针对性的端到端解决方案,专注于消除污染风险和恢复系统保护。
立即行动可快速取得成功:
- A genuine FH234 separator bowl was reinstated, enabling daily removal of water and debris
- The correct Fleetguard FF5644 filter was reintroduced to restore baseline protection
- An upgrade to the FF5782 filter was recommended to further extend component life and improve overall system reliability
同时,站点流程的改进确保了长期绩效提升:
- The mobile tanker was cleaned and placed on a structured maintenance schedule
- Staff were trained on best practices to prevent contamination during refuelling
- Stage 0 filtration was introduced on the bulk storage tank and mobile tanker to stop contaminants at source
- Air breathers were recommended to eliminate airborne dirt ingress into tanks
Explore best practices for fuel cleanliness.
The Benefits
通过解决燃料分配流程每个阶段的污染问题,操作员能够显著降低整个车队的风险。
关键结果包括:
- Extended component life – improved fuel cleanliness protects pumps and injectors from premature wear
- Reduced maintenance costs – fewer failures and longer service intervals
- Improved uptime – more reliable equipment performance in a demanding, high-dust environment
- Stronger operational control – better processes and filtration standards across the site
- No unnecessary spend – many improvements were achieved through process changes rather than additional cost
重要的是,解决方案不仅仅只是短期解决。 通过识别设备和操作实践中的差距,Fleetguard 帮助客户建立了更具弹性、更高效的燃料管理方法。
尽管操作员已经从原装零件上移开,但在出现性能问题时,他们又回到了 Fleetguard,这巩固了该品牌作为值得信赖的技术合作伙伴的地位。 成功的解决方案不仅恢复了系统性能,还增强了对产品和长期合作伙伴关系的信心。
因此,客户致力于持续的过滤审计,确保持续的性能、更清洁的燃料,并持续符合行业最佳实践。
Start optimizing your fuel system today and learn more about Fleetguard fuel filtration technologies.
*ISO 4406 12/9/6 in More Detail
现代高压共 轨道交通 (HPCR) 发动机需要颗粒数低至 的柴油 12/9/6机,从而保护喷油器免受高达 2-5 微米的公差的影响。
对三种粒度(微米、≥ 4 μm、≥ 6 μm、≥ 14 μm)的代码进行评估。
根据 ISO 4406:1999 标准,指定的液位对应于每毫升液体的以下颗粒计数范围:
12 = 20 to 40 particles (sized ≥ 4 µm)
9 = 2.5 to 5 particles (sized ≥ 6 µm)
6 = 0.32 to 0.64 particles (sized ≥ 14 µm)
